Input Shaft ASSY (C60): Components

WARNING: This page is about a different variant/trim than selected.

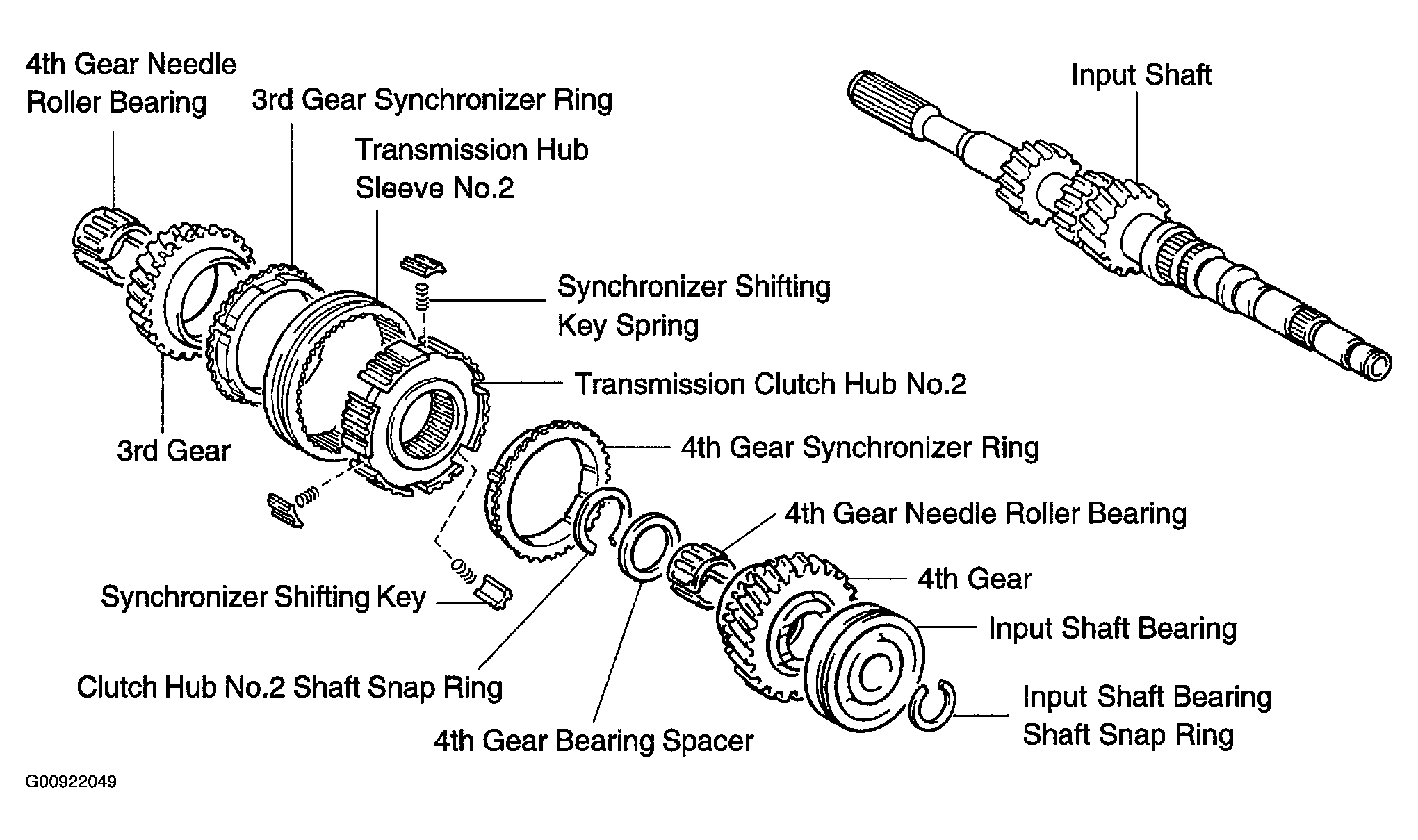

Fig 1: Exploded View Of Input Shaft Assembly Components (C60)
G00922049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
