Diagnostic Trouble Code Chart
WARNING: This page is about a different variant/trim than selected.

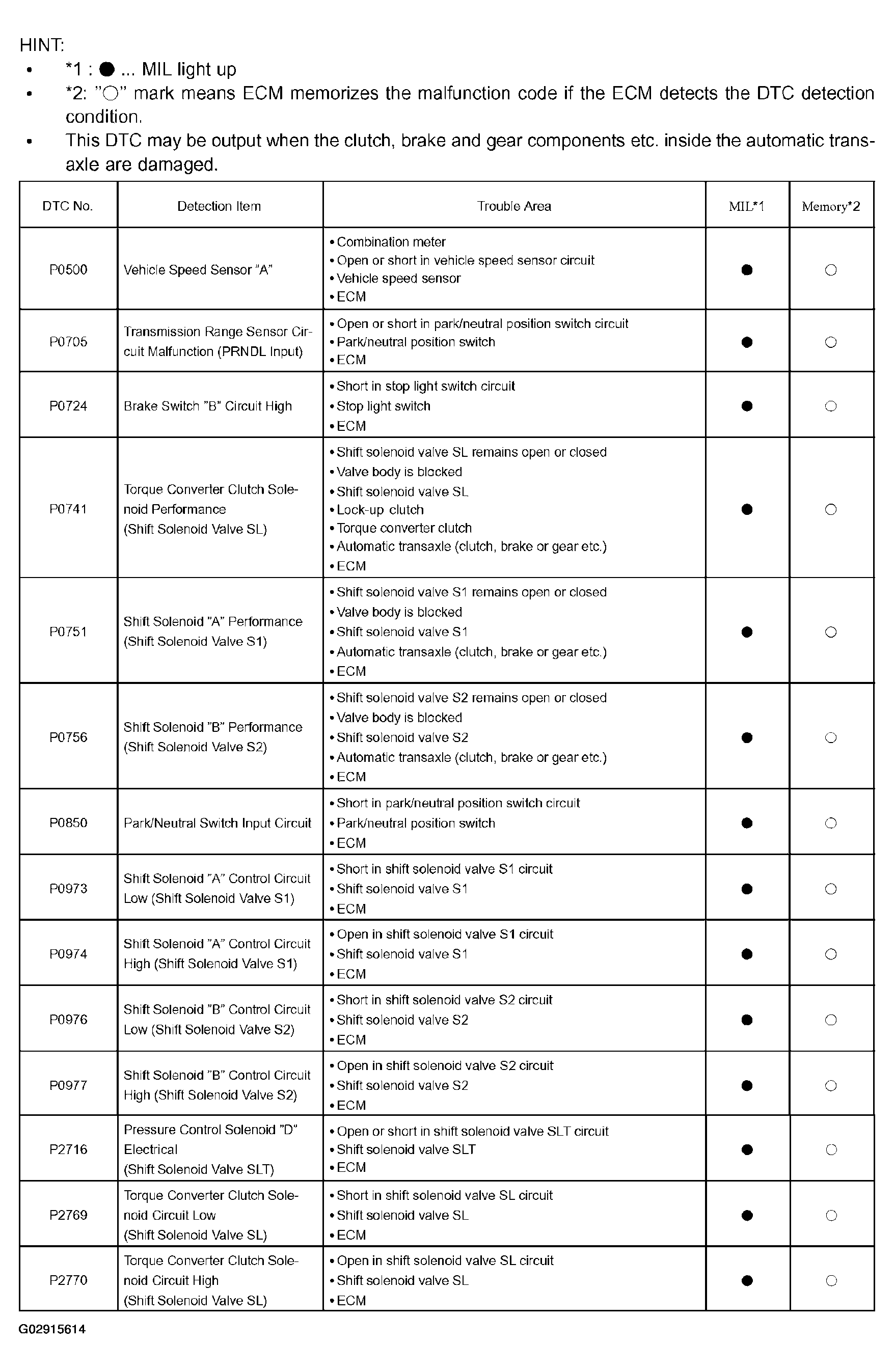

If a DTC is displayed during the DTC check, check the circuit listed in the table below and proceed to the page given.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
