Diagnostic Tester Controller Area Network (Can) Interface Module (SS001-03)
Publication date: 2003-09-08Reference number: SS001-03
DIAGNOSTIC TESTER CONTROLLER AREA NETWORK (CAN) INTERFACE MODULE
TECHNICAL SERVICE BULLETIN
Reference Number(s): SS01-03, Date of Issue:
September 8, 2003
| TOYOTA: | All Models |
| SECTION: | Special Service Tools |
| COPYRIGHT: | © 2018 Toyota, USA License Agreement TMS1002 |
INTRODUCTION
Over the next four model years, all Toyota vehicles will begin using an all-new diagnostic communication protocol, Controller Area Network (CAN). CAN will be introduced on the 2004 Prius this fall. A CAN Interface Module has been distributed to all dealers as an essential Special Service Tool (SST) and will allow the Diagnostic Tester to communicate with CAN-equipped vehicles. Please use the following instructions to install the new CAN Interface Module as soon as it arrives at your dealership.
NOTE:
- Version 10.2a or later Diagnostic Tester Software must be used to enable communication with CAN-equipped vehicles. Version 10.2a will be distributed to dealers via TIS before CAN-equipped vehicles arrive at dealers.
- There is no need to remove the CAN Interface Module when working with non-CAN systems or older software versions (Version 10.1a or earlier). The Diagnostic Tester will communicate with all DLC3/J1962 based systems with the CAN Interface Module installed.
APPLICABLE VEHICLES
All Models.
REQUIRED SSTS
REQUIRED SSTS
| Special Service Tools (SSTs) | Part Number | Qty |
|---|---|---|
| Toyota Diagnostic Tester Kit* | 01001271 | 1 |
| CAN Interface Module Kit* | 01002744 | 1 |
| 12 Megabyte Diagnostic Tester Program Card with version 10.2a Software (or later)* | 01002593-005 | 1 |
| * - Essential SSTs | ||
NOTE:
Additional Diagnostic Tester Kits, CAN Interface Modules, Program Cards or SSTs may be ordered by calling SPX/OTC at 1-800-933-8335.
WARRANTY INFORMATION
WARRANTY INFORMATION
| Op Code | Description | Time | OFP | T1 | T2 |
|---|---|---|---|---|---|
| N/A | Not Applicable to Warranty | --- | --- | --- | --- |
INSTALLATION PROCEDURE

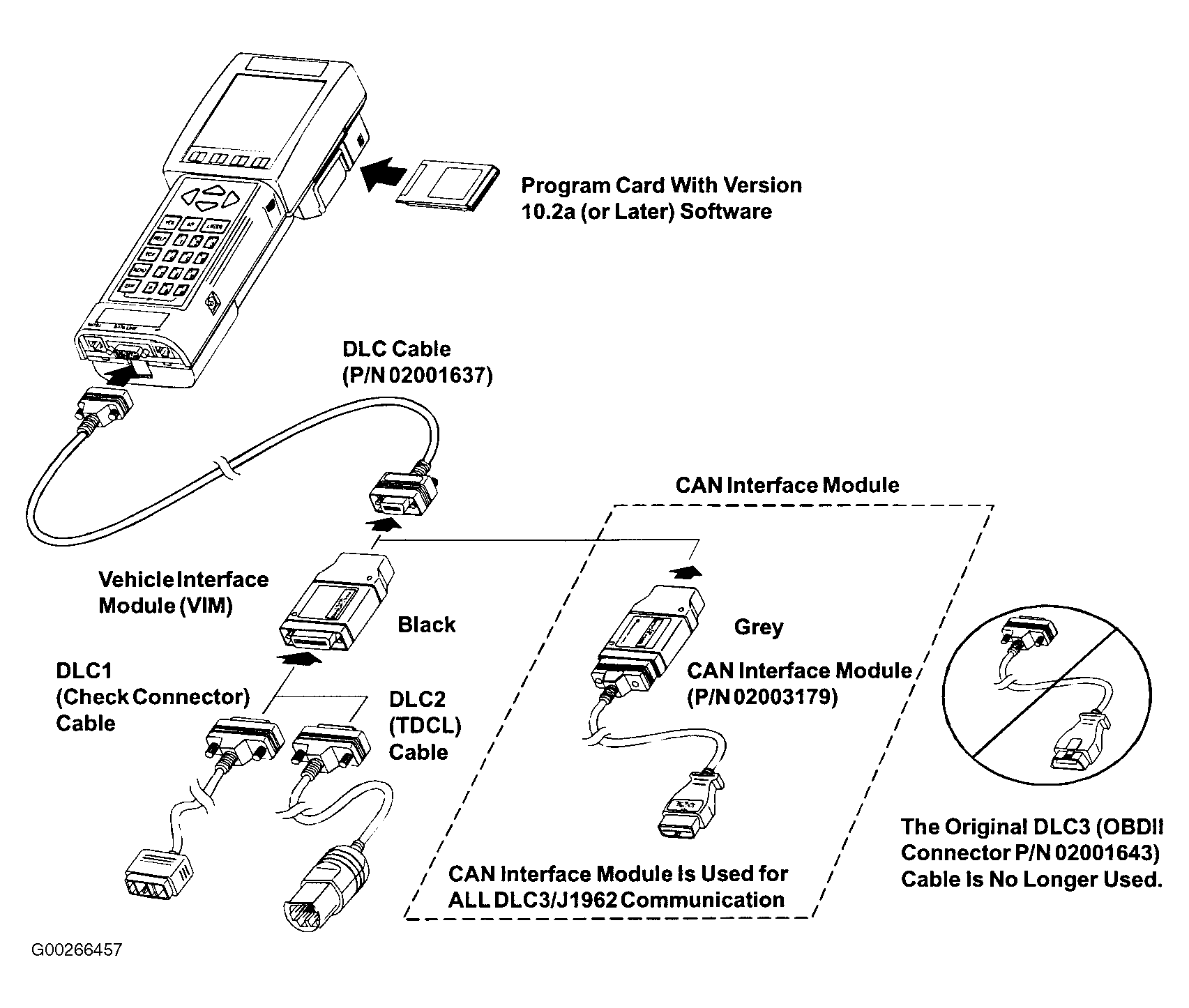

- Remove the original DLC3 Cable and store it in the Diagnostic Tester storage case. See Fig 1.
- Connect the CAN Interface Module to the DLC Cable.
- Use the Diagnostic Tester with the CAN Module installed for all DLC3/J1962 based vehicle communication.
- If you experience problems with the Diagnostic Tester or CAN Interface Module, please contact Toyota Special Service Tool Customer Support.NOTE:
- There is no need to remove the CAN Interface Module when working with non-CAN systems or older software versions (Version 10.1a or earlier). The Diagnostic Tester will communicate with all DLC3/J1962 based systems with the CAN Interface Module installed.
- For DLC1 and DLC2 communication you must continue to use the Vehicle Interface Module (VIM).
