Vane Pump ASSY: Components

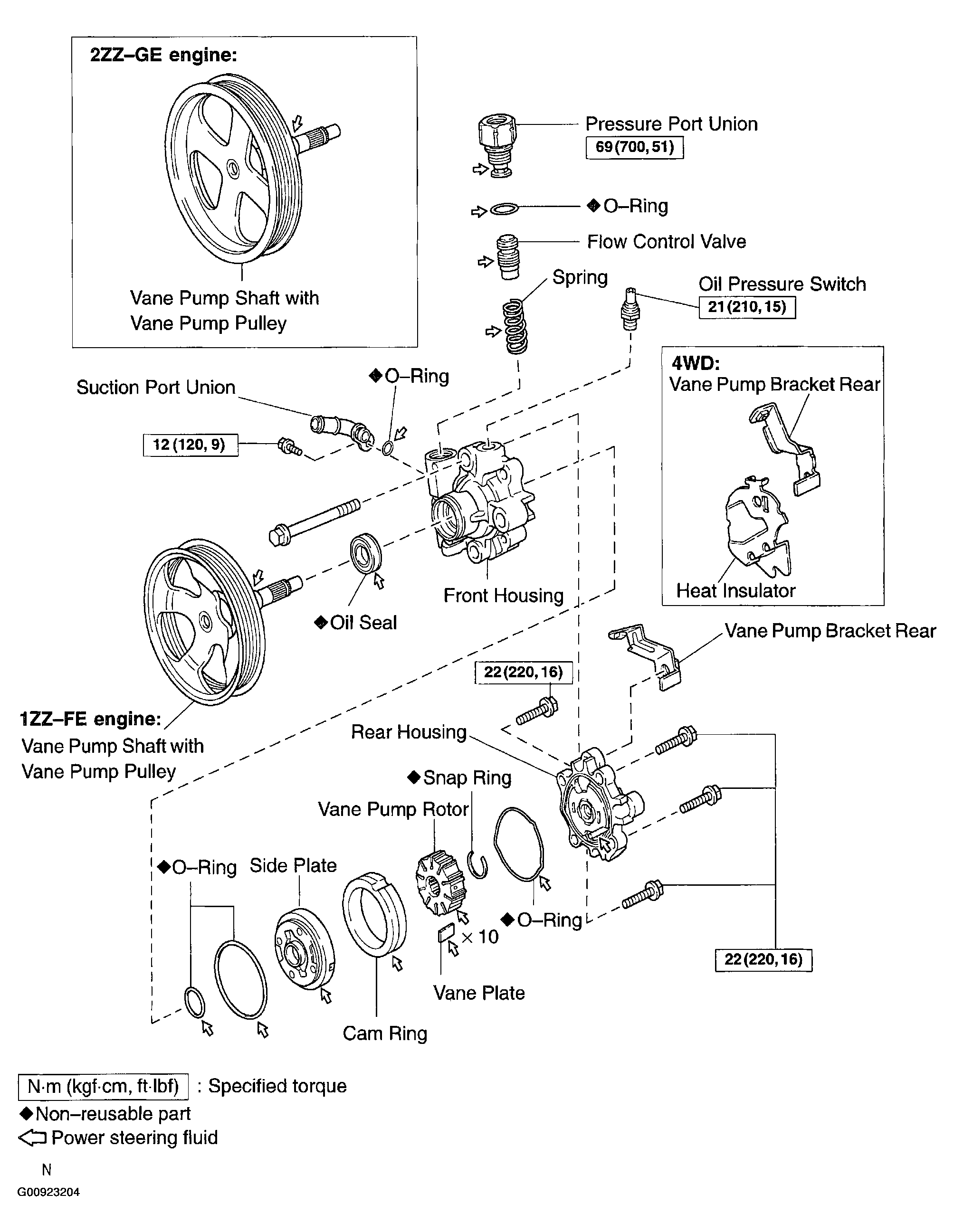

Fig 1: Identifying Vane Pump Assy Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
