Ecu Power Source Circuit: Wiring Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

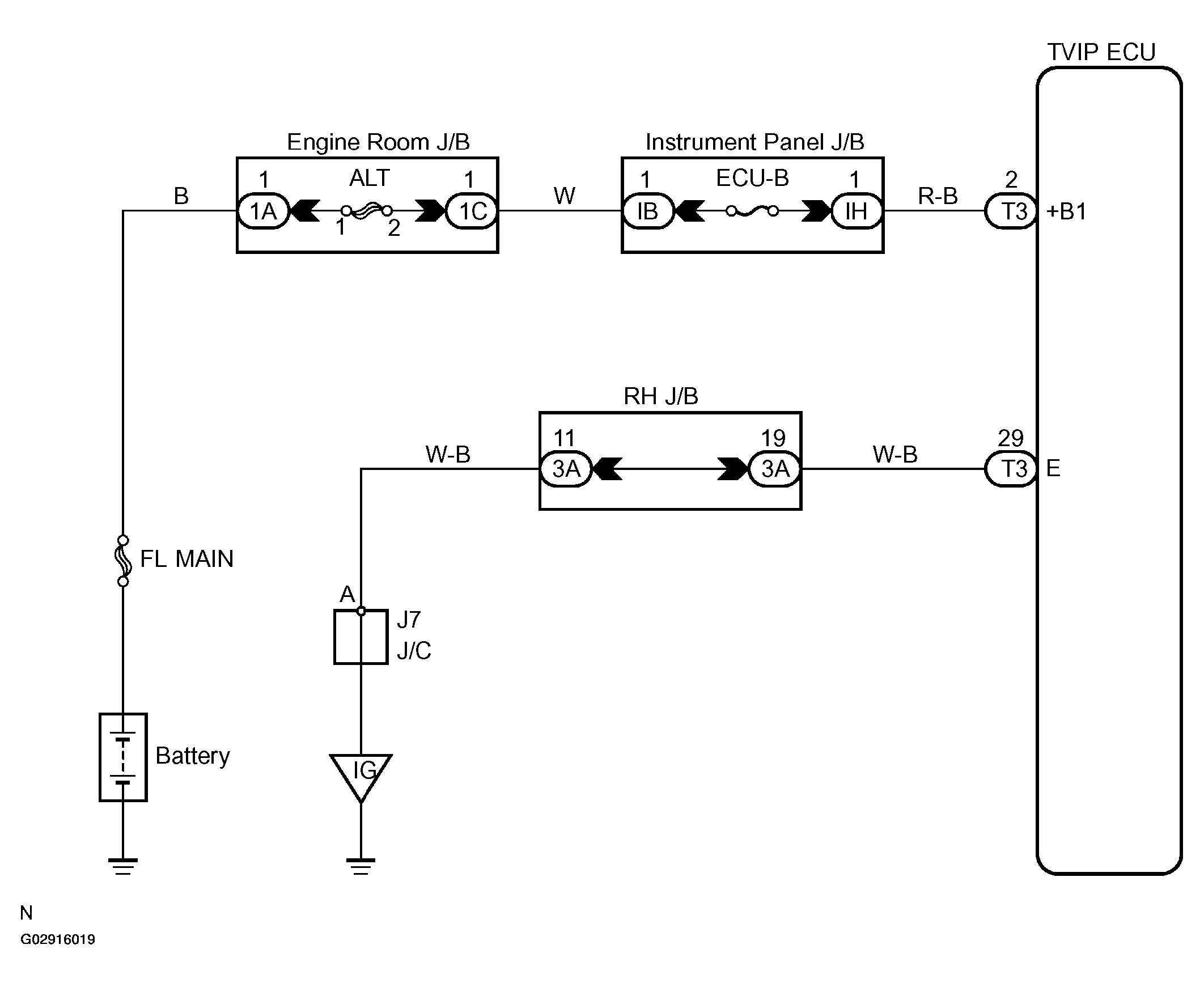

Fig 1: Wiring Diagram - TVIP ECU
G02916019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
