Screen Cannot Be Dimmed When Light Control Switch Is Turned To "Tail" Position: Wiring Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

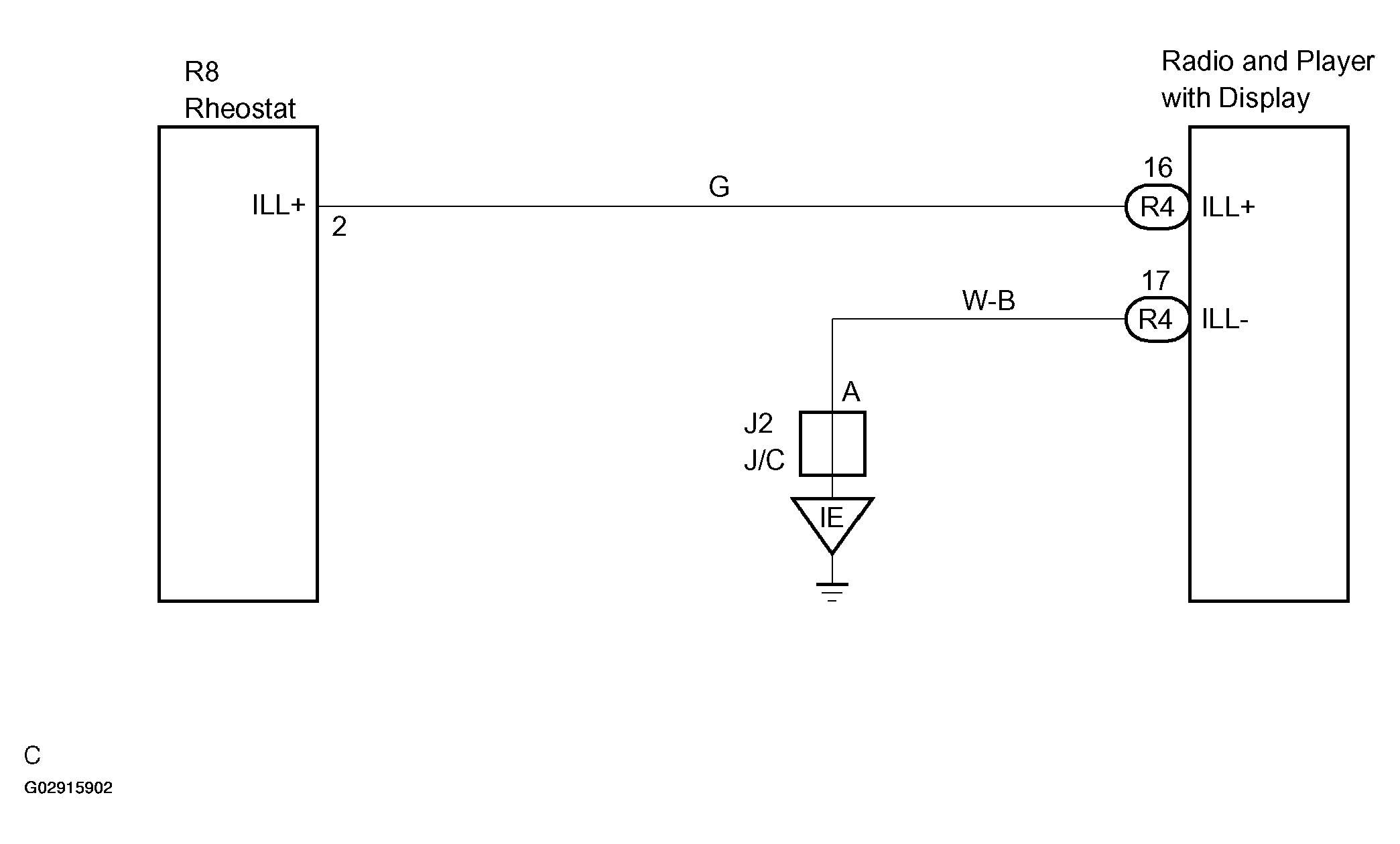

Fig 1: Navigation System Display Rheostat Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
