Windshield Wiper Switch ASSY: Replacement

  1. REMOVE STEERING COLUMN COVER LWR
    1. Remove 3 screws and steering column cover LWR.

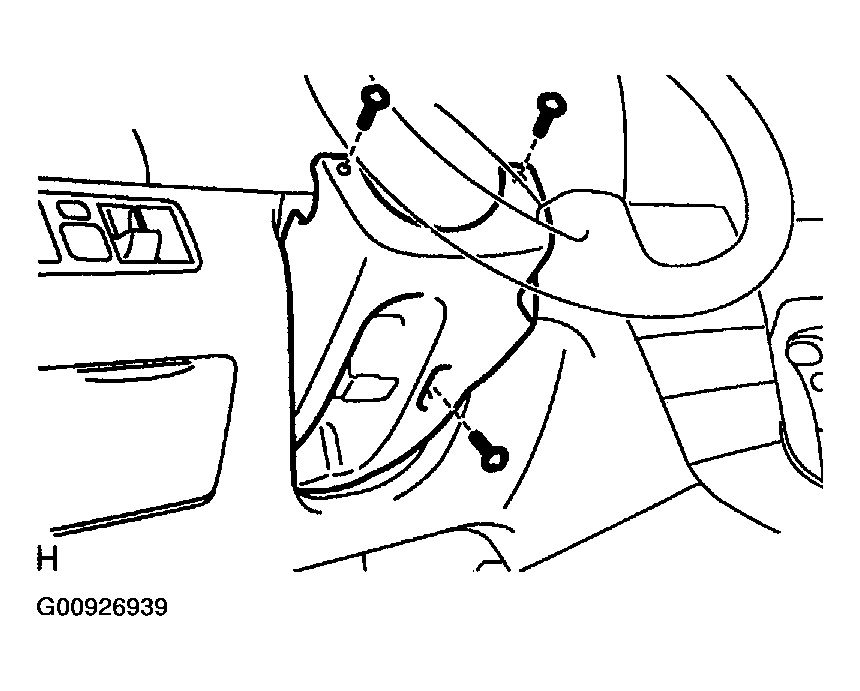

    Fig 1: Removing Screws & Steering Column Cover LWR
    G00926939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE WINDSHIELD WIPER SWITCH ASSY
    1. Disconnect the connector of the windshield wiper switch.
    2. Release the claw and pull out the windshield wiper switch assy as shown in Fig 2 .

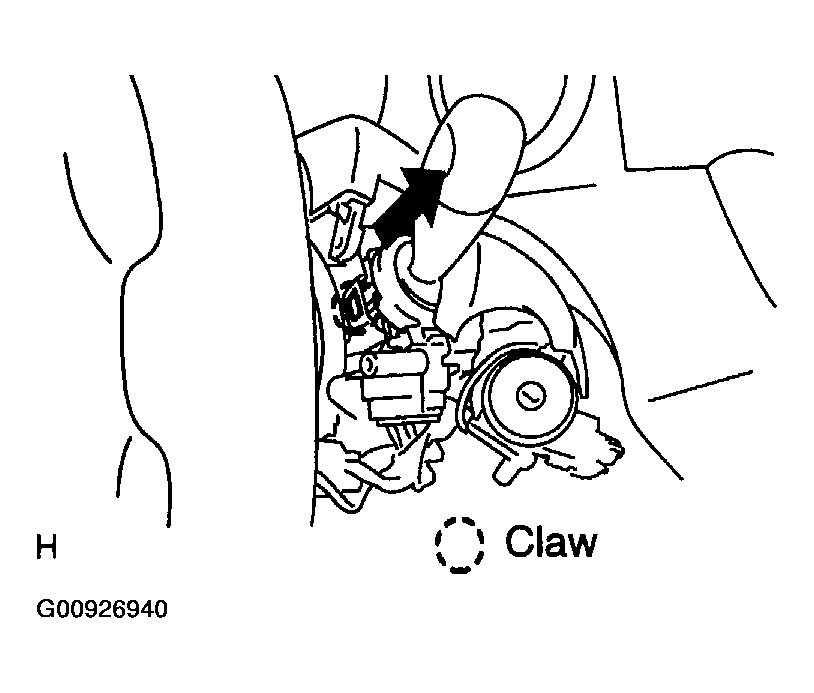

    Fig 2: Removing Windshield Wiper Switch Assy
    G00926940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Pressing the claw hard breaks the claw.
