Circuit Description

This sensor detects deceleration on the vehicle. The sensor signal is used in ABS control. If the sensor functions abnormally, the ABS warning light comes on but the ABS still operates.

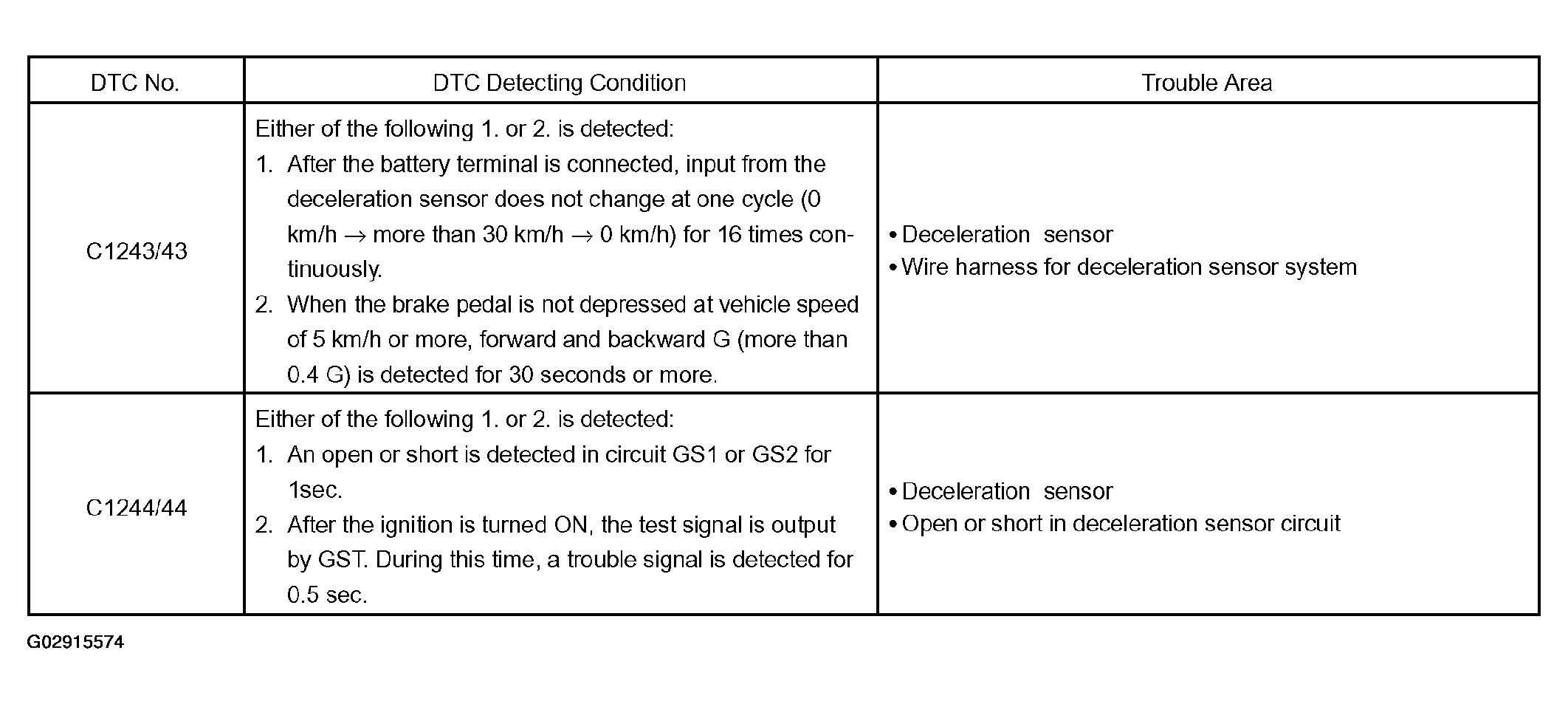

Fig 1: Identifying Deceleration Sensor DTC's Detected Conditions & Trouble Areas
G02915574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
