Diagnosis & Repair
WARNING: This page is about a different car, the 2003 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

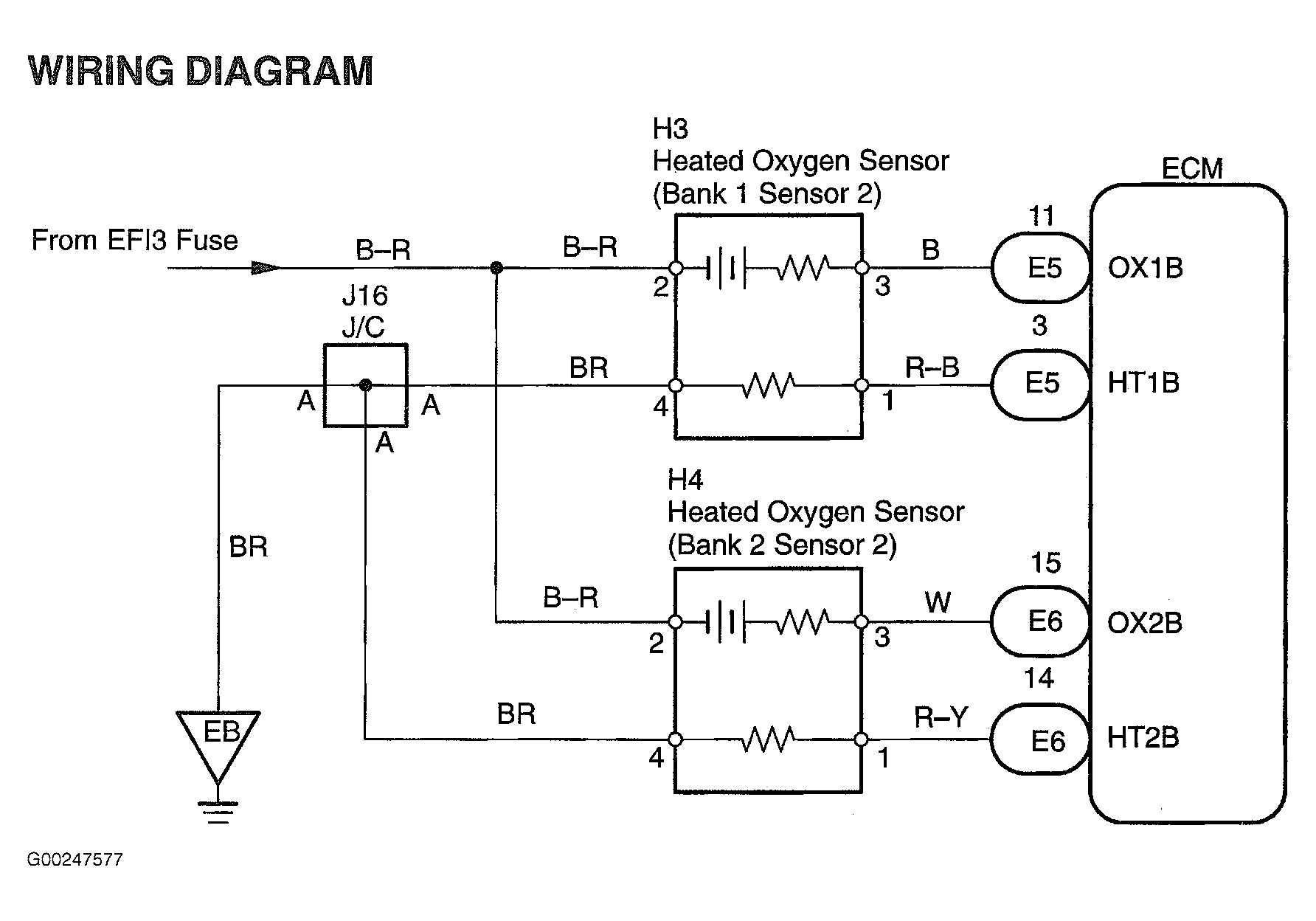

For diagnosis and repair procedure, see Fig 1. For HO2S circuit wiring diagram, see Figure. To check resistance of heater on heated oxygen sensor (bank 1 & 2 sensor 2), see Fig 2.
When instructed to "Perform Confirmation Driving Pattern", go to TEST DRIVE CONFIRMATION procedure.
When access to ECM is necessary, Engine Control Module (ECM) is located behind glove box. See Figure. For ECM connector terminal view, see Figure.
For testing of systems or components, see SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For removal and installation of components, see REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.
