Shift & Select Lever Shaft ASSY (C60): Components
WARNING:
This page is about a different variant/trim than selected.

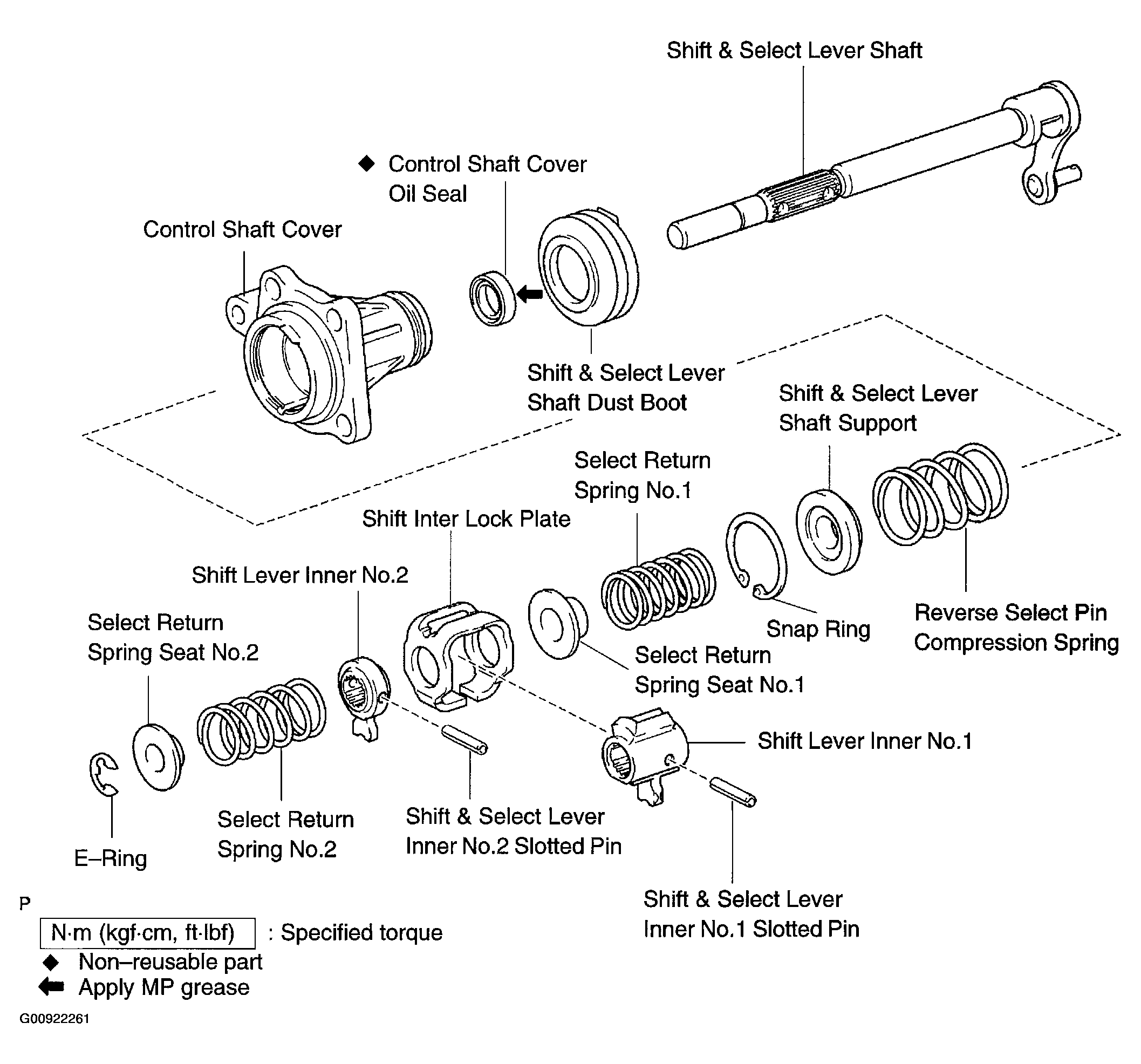

Fig 1: Exploded View Of Shift & Select Lever Shaft Assembly Components (C60 - 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

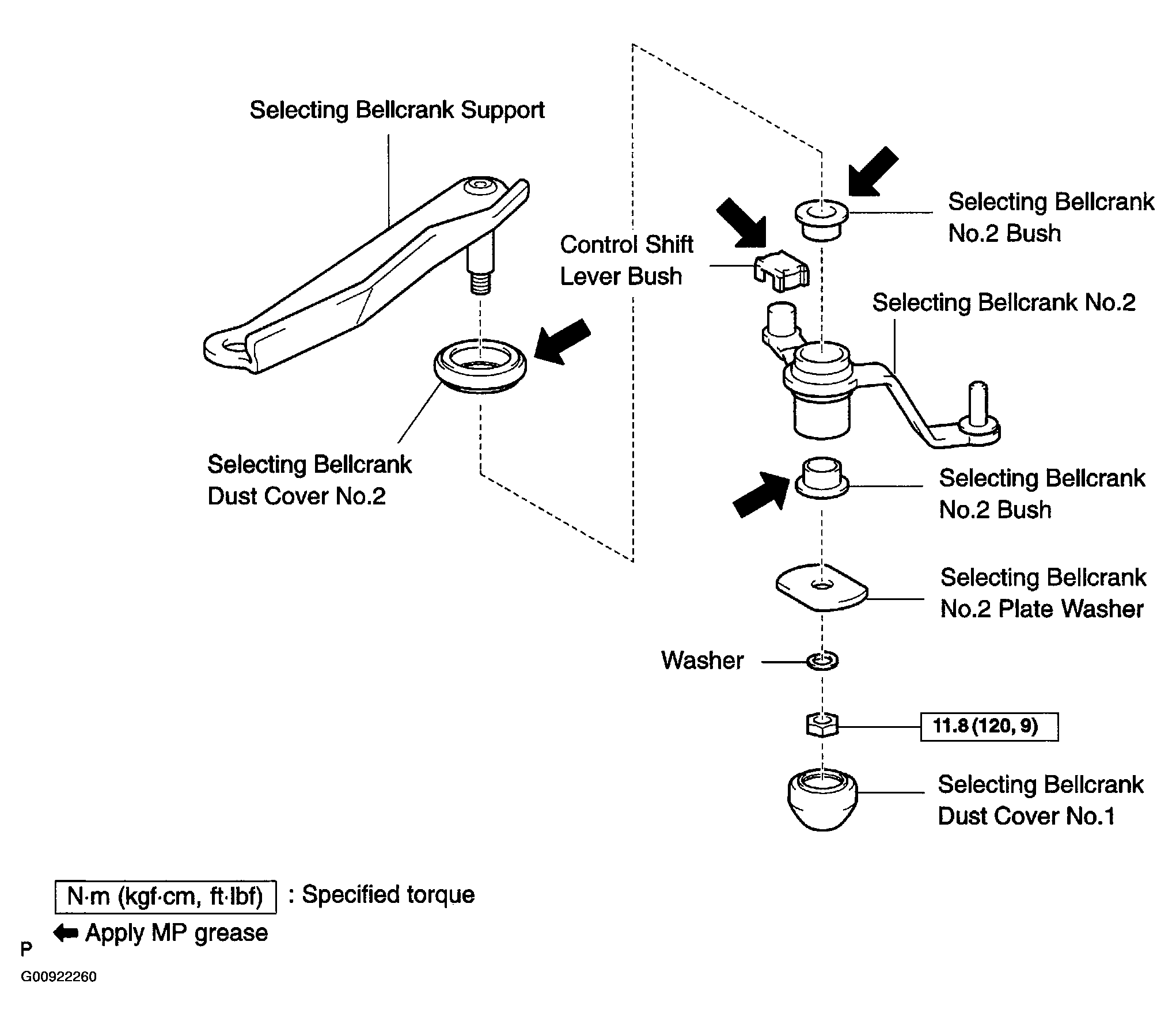

Fig 2: Exploded View Of Shift & Select Lever Shaft Assembly Components (C60 - 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
