Typical Enabling Condition: P0805

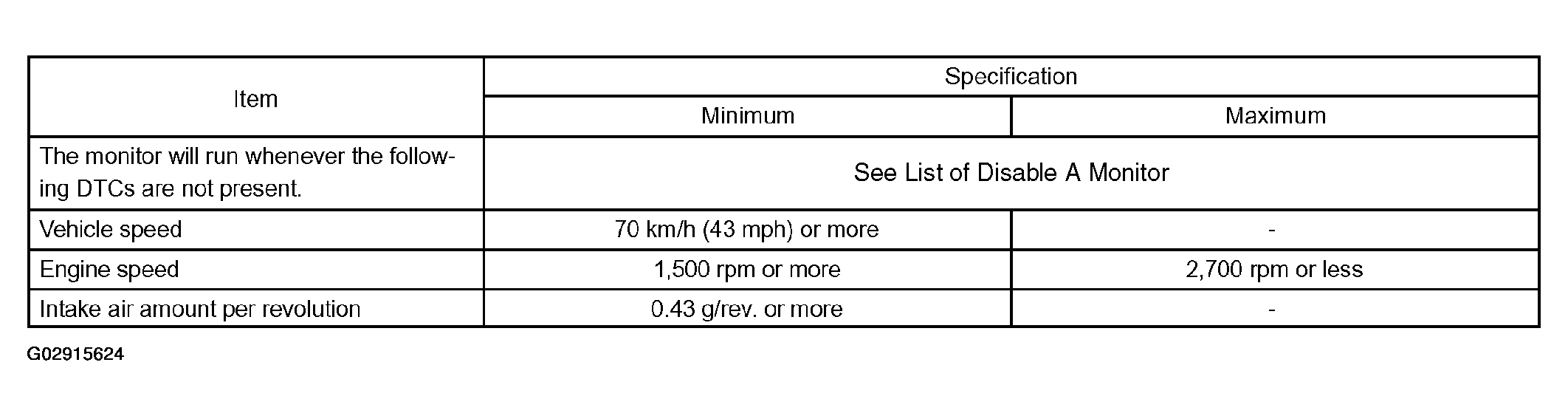

Fig 1: Typical Enabling Condition P0805 Table

G02915624

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
