Automatic Transmission Electronic Controlled (ECT) - A246E - Diagnostics
>>
Problem Symptoms Table
>>
Chapter 1: Electronic Circuit Matrix Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Chapter 1: Electronic Circuit Matrix Chart

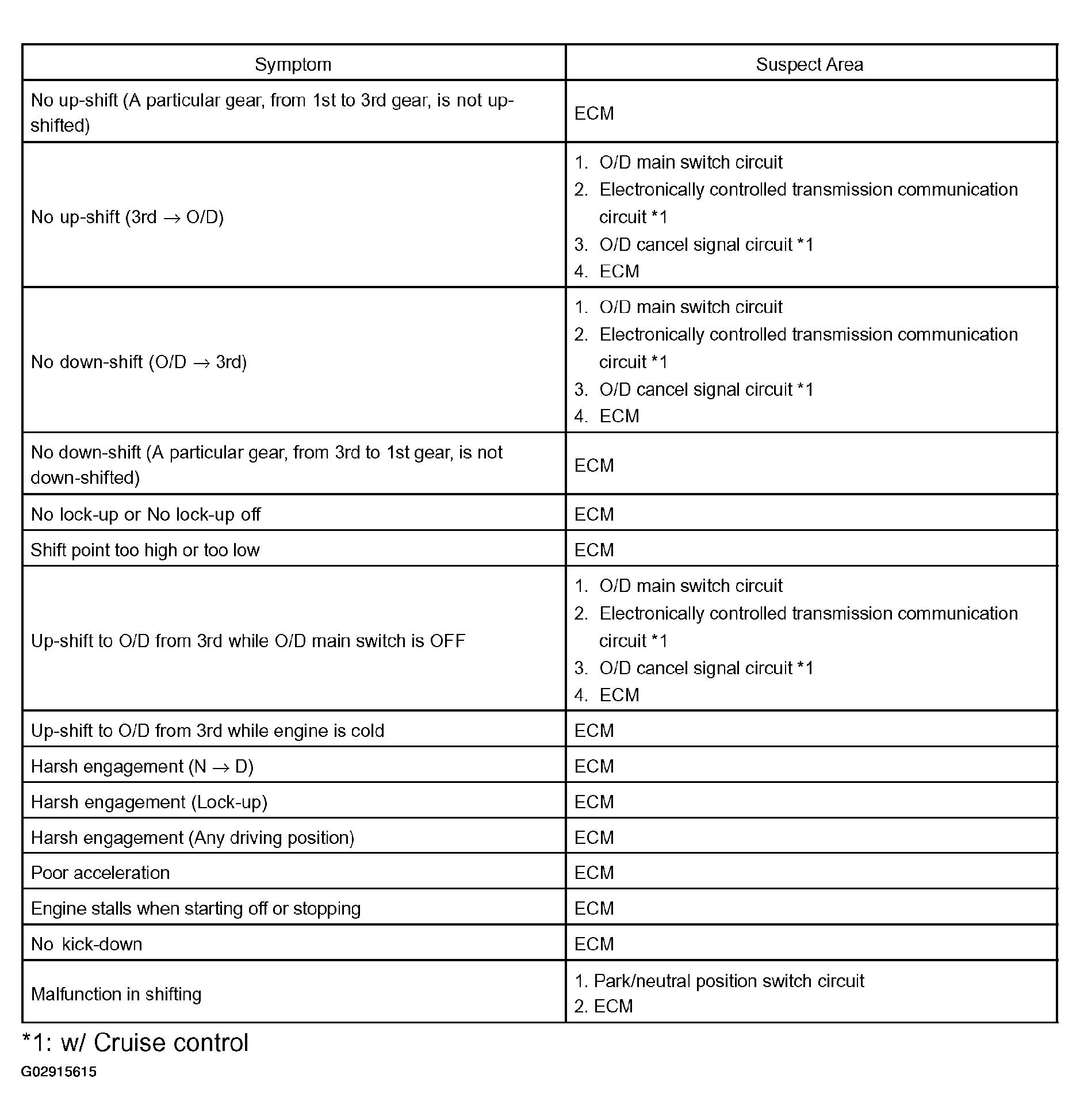

Fig 1: Electronic Circuit Check Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
