Inspection Procedure

  1. CHECK FUSE (ECU-B FUSE)
    1. Remove the fuse from the instrument panel J/B.
    2. Check the continuity of the fuse.

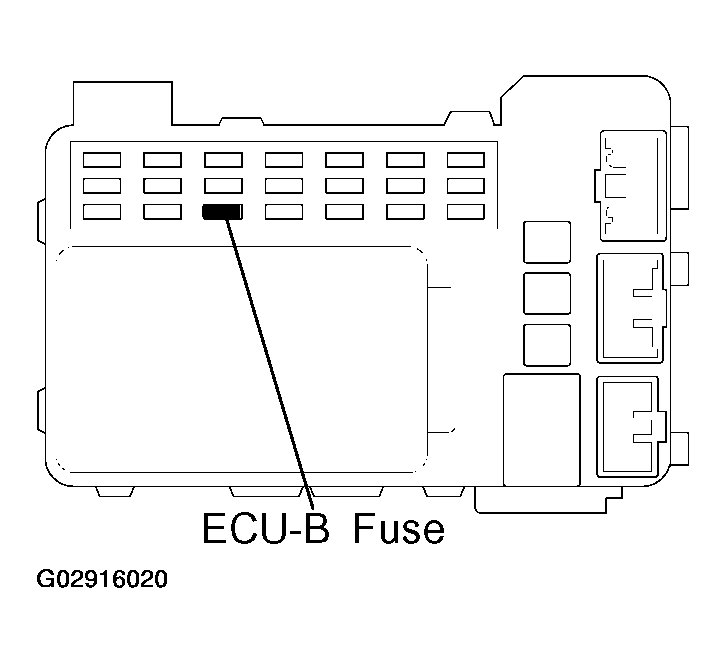

      Fig 1: Locating ECU-B Fuse
      G02916020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard: Continuity

    1. NG: REPLACE FUSE
    2. OK: Go to next step.
  2. CHECK TVIP ECU
    1. Disconnect the TVIP ECU connector.
    2. Check the voltage between the terminals of the ECU connector, as shown in Fig 2 and CHECKING TVIP ECU TERMINAL VOLTAGE .

      Standard:

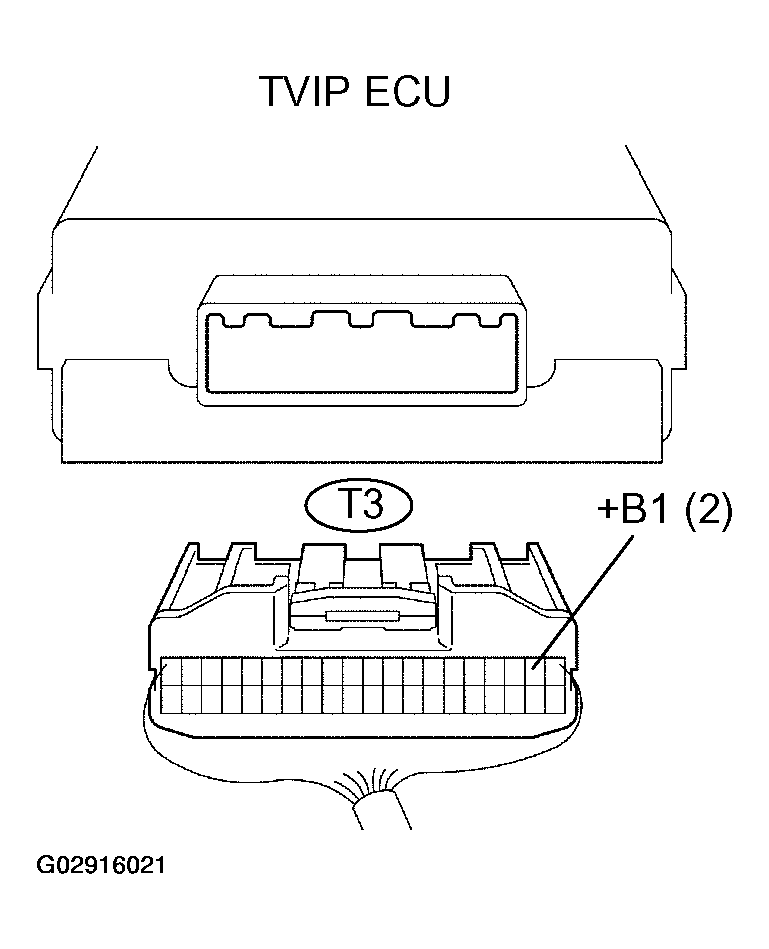

      Fig 2: Locating TVIP ECU Connector T3 Terminal +B1 (2)
      G02916021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CHECKING TVIP ECU TERMINAL VOLTAGE

      Test Between Terminals No. Specified Condition
      +B1 <=> (T3-2) Body ground 10 - 14 V
    1. NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )
    2. OK: Go to next step.
  3. CHECK WIRE HARNESS (TVIP ECU <=> BODY GROUND)
    1. Disconnect the TVIP ECU connector.
    2. Check the continuity between the terminal the of the TVIP ECU connector and the body ground, as shown in Fig 3 and CHECKING TVIP ECU TERMINAL CONTINUITY .

      Standard:

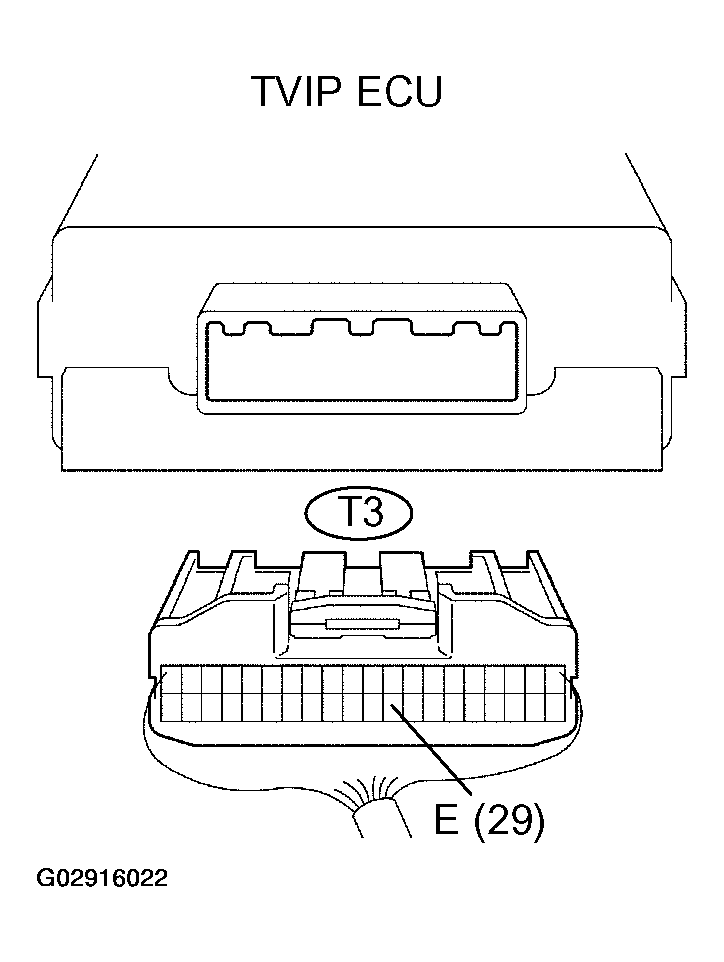

      Fig 3: Locating TVIP ECU Connector T3 Terminal E (29)
      G02916022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CHECKING TVIP ECU TERMINAL CONTINUITY

      Test Between Terminals No. Specified Condition
      E (T3-29) <=> Body Ground Continuity
    1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR
    2. OK: CHECK AND REPLACE TVIP ECU (Refer to  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  ).
