Stop Light Switch Circuit: Wiring Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

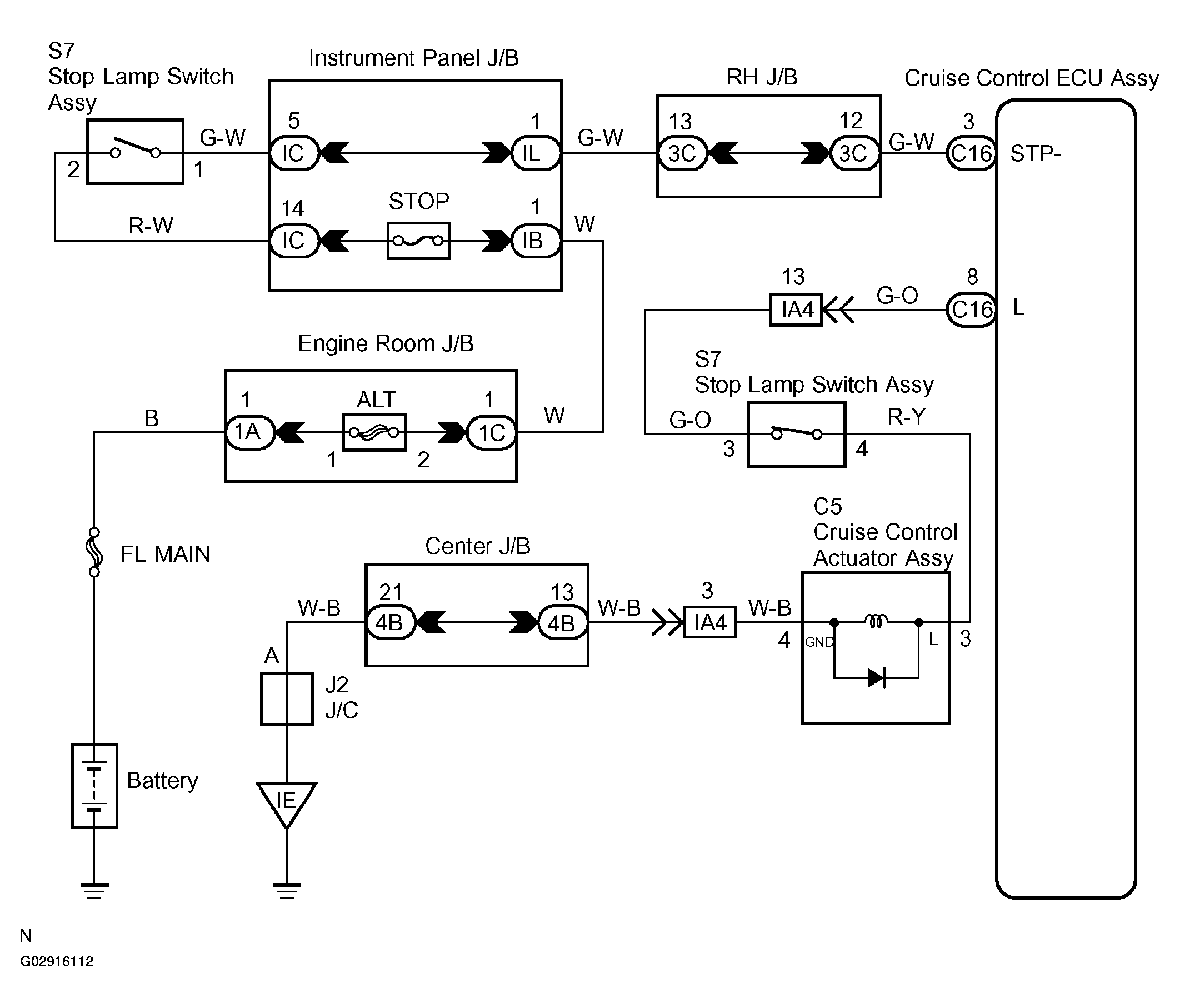

Fig 1: Wiring Diagram - Stop Light Switch
G02916112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
