Wireless Door Lock Control System - Diagnostics: Location

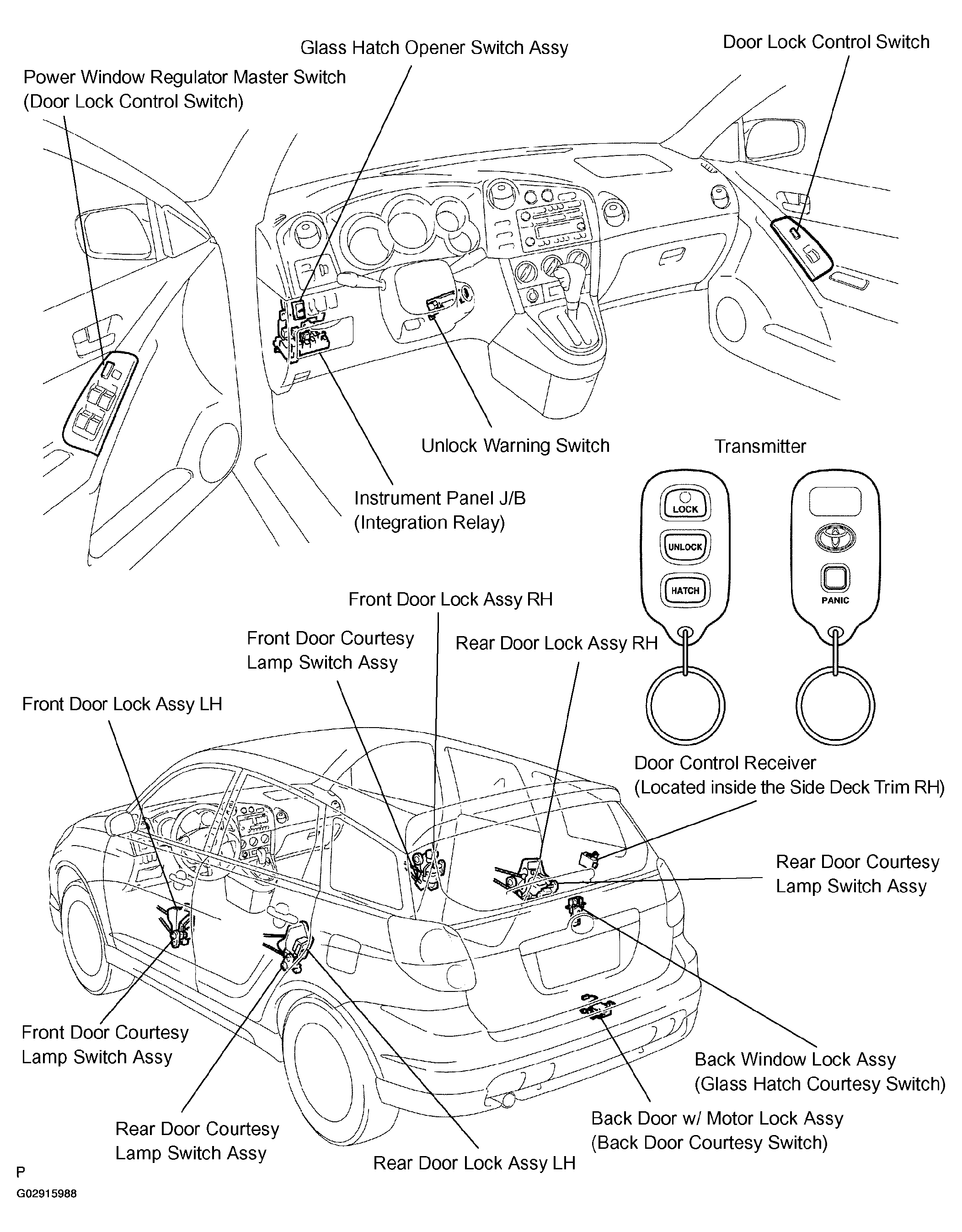

Fig 1: Locating Wireless Door Lock Control System Components
G02915988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
