DTC P0505: Idle Air Control System, DTC P0511: Idle Air Control Circuit: Wiring Diagram

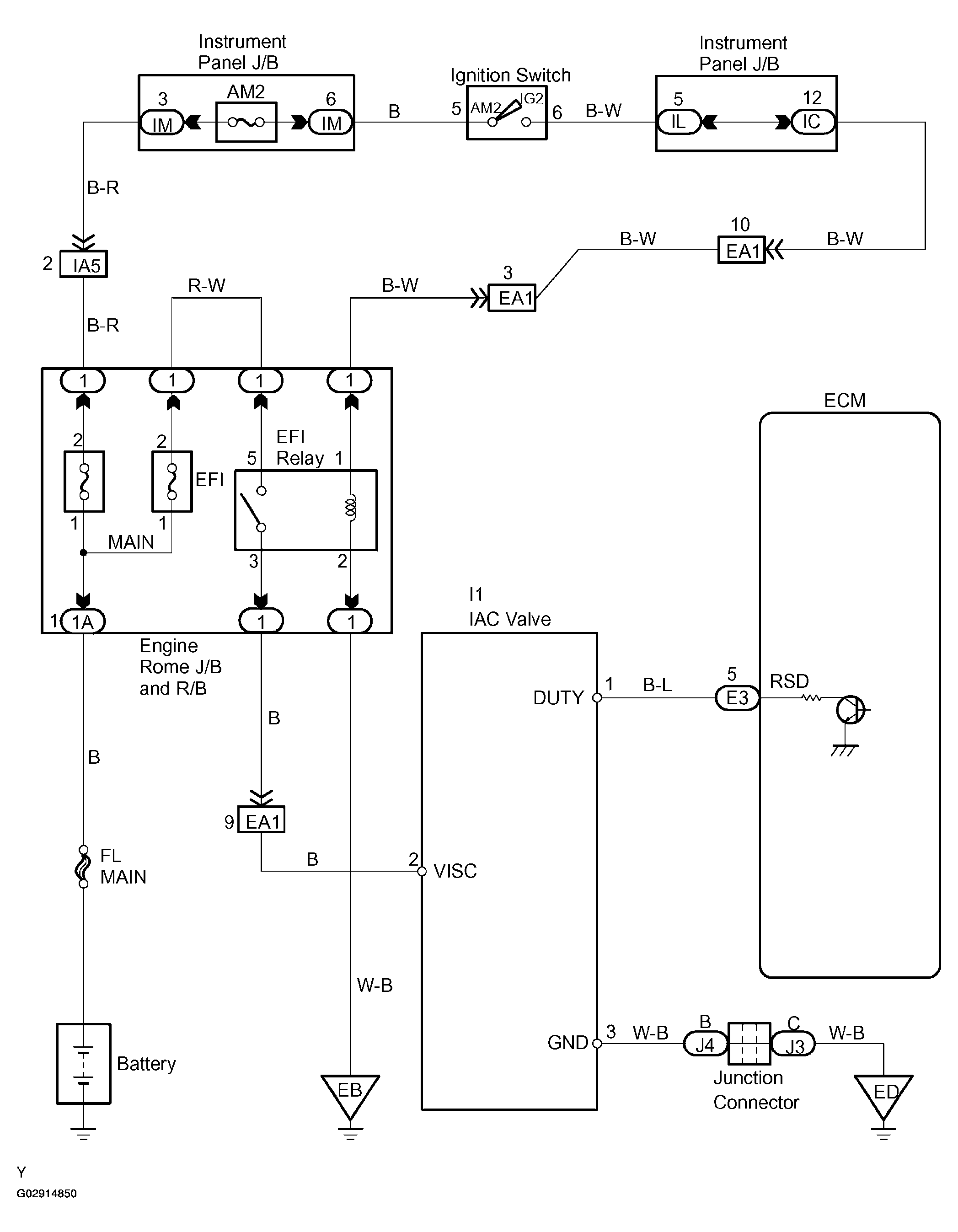

Fig 1: Wiring Diagram - Idle Air Control Circuit
G02914850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
