Headlamp Leveling Ecu: Replacement

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  SAFETY PRECAUTIONS  )
  2. REMOVE GLOVE COMPARTMENT DOOR ASSY (SEE  INSTRUMENT PANEL SUB-ASSY  )
  3. REMOVE ECM (SEE  ECM (1NZ-FXE)  )
  4. REMOVE HEADLAMP LEVELING ECU ASSY
    1. Disconnect the connector.
    2. Remove the bolt and the headlamp leveling ECU assy.

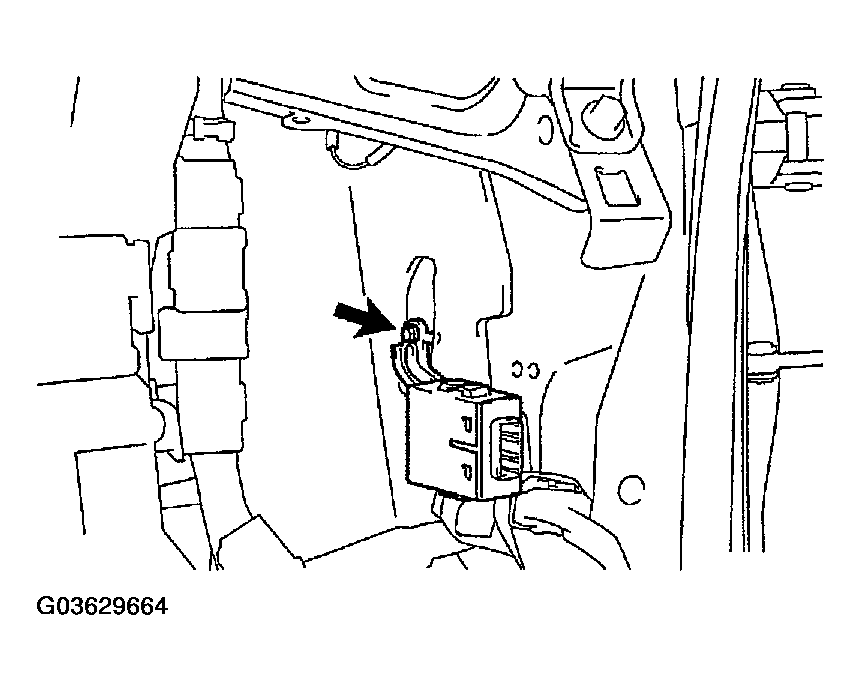

    Fig 1: Removing Headlamp Leveling ECU Assy
    G03629664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL ECM (SEE  ECM (1NZ-FXE)  )
  6. CONNECT BATTERY NEGATIVE TERMINAL (SEE  SAFETY PRECAUTIONS  )
  7. PERFORM INITIALIZATION (SEE  INITIALIZATION  )
