Windshield Wiper Switch ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  PRECAUTIONS  )
  2. REMOVE STEERING WHEEL COVER LOWER NO.2 (SEE  STEERING WHEEL  )
  3. REMOVE STEERING WHEEL COVER LOWER NO.3 (SEE  STEERING WHEEL  )
  4. REMOVE HORN BUTTON ASSY (SEE  STEERING WHEEL  )
  5. REMOVE STEERING WHEEL ASSY (SEE  OVERHAUL  )

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  6. REMOVE TILT LEVER BRACKET (SEE  OVERHAUL  )
  7. REMOVE STEERING COLUMN COVER (SEE  OVERHAUL  )
  8. REMOVE WINDSHIELD WIPER SWITCH ASSY
    1. Disconnect the connector.

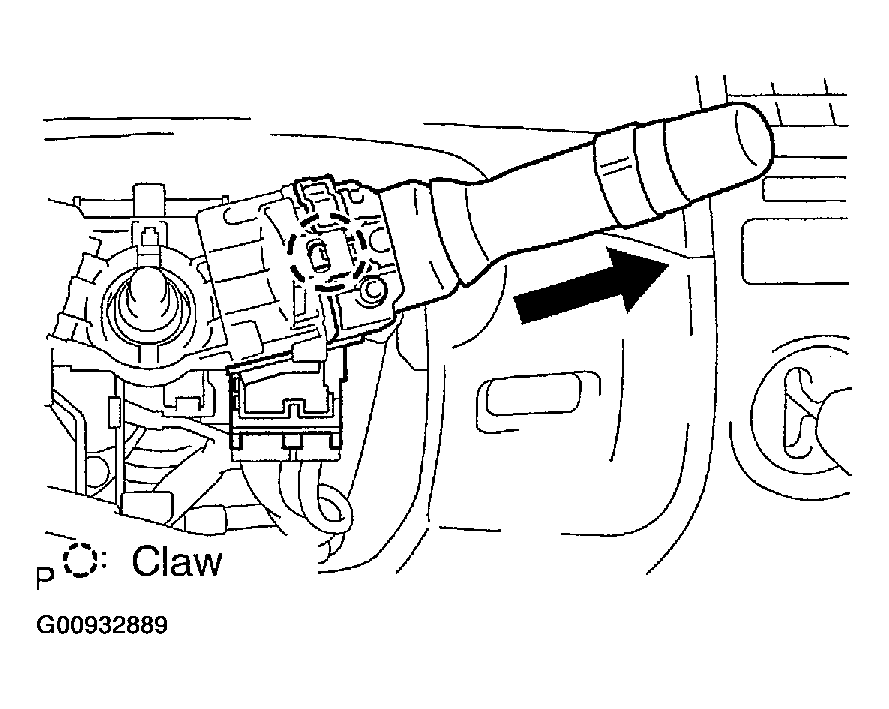

    2. Push and disengage the claw shown in the illustration and remove the windshield wiper switch assy.
    Fig 1: Removing Windshield Wiper Switch Assy
    G00932889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: The claw will be broken if pressed too hard.
  9. CENTER SPIRAL CABLE (SEE  CENTERING SPIRAL CABLE  )
  10. INSTALL STEERING WHEEL ASSY (SEE  OVERHAUL  )
  11. INSTALL HORN BUTTON ASSY (SEE  STEERING WHEEL  )
  12. CONNECT BATTERY NEGATIVE TERMINAL (SEE  PRECAUTIONS  )
  13. INSPECT HORN BUTTON ASSY (SEE  STEERING WHEEL  )
  14. INSPECT SRS WARNING LIGHT (SEE  INSPECTION  )
  15. PERFORM INITIALIZATION (SEE  INITIALIZATION  )
