Evaporative Emission (EVAP) Control System: Components

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

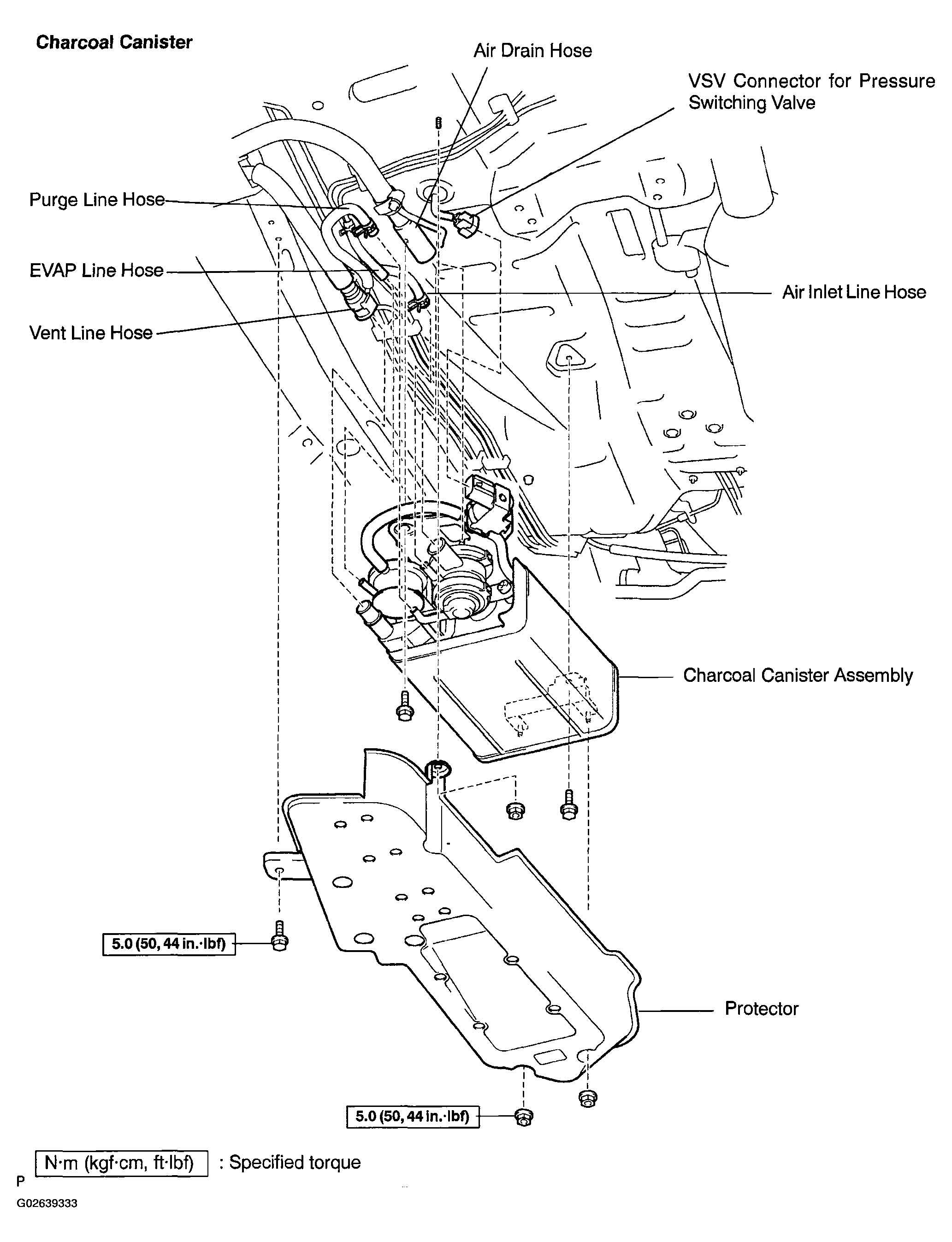

Fig 1: Identifying Evaporative Emission (EVAP) Control System Components
G02639333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
