Circuit Description
WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

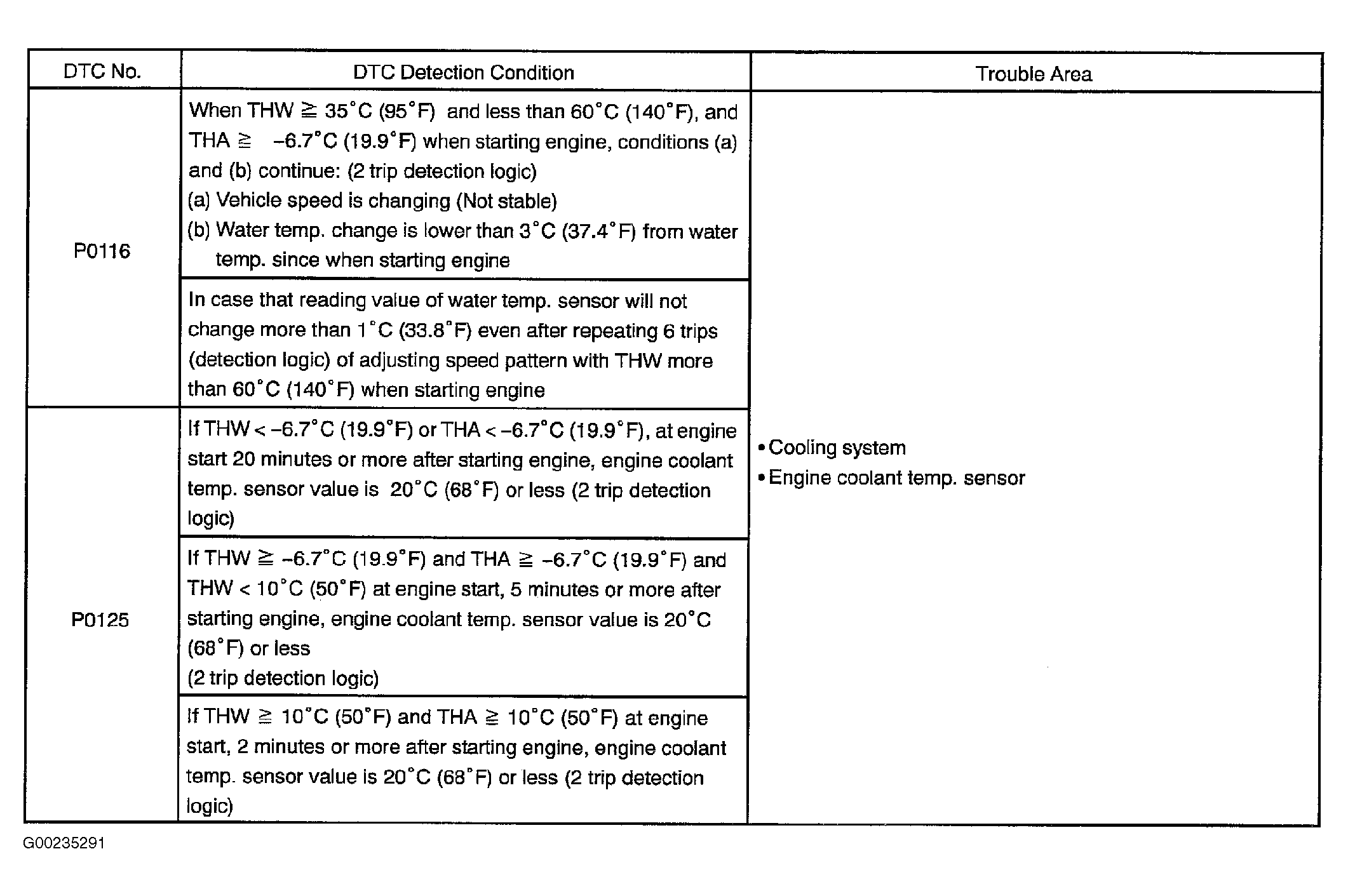

For circuit description, see Circuit Description under DTC P0115, P0117 OR P0118. For DTC detection condition and possible causes, see Fig 1.
