Circuit Description
WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

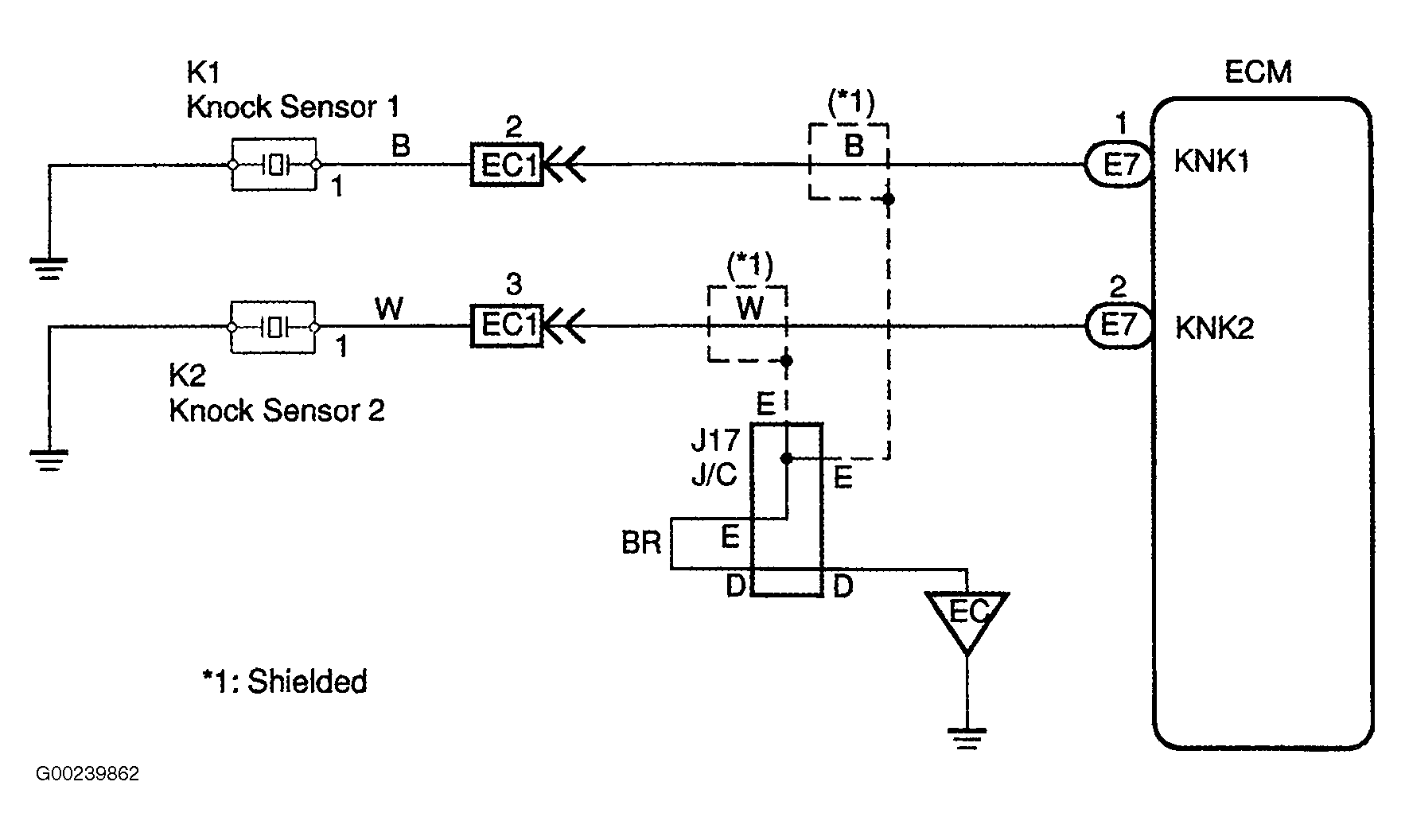

Knock sensors are located on either side of cylinder block under intake manifold. Knock sensor generates voltage when engine block vibrates due to knocking. DTC P0325 is for bank that includes cylinder No. 1. DTC P0330 is for bank that does not include cylinder No. 1. See Fig 1. DTC is set when there is no knock sensor signal to ECM with engine speed 1700-5400 RPM. Possible causes are:
- Knock sensor circuit is open or shorted.
- Defective or loose knock sensor.
- Defective ECM.
