Circuit Description
WARNING: This page is about a different car, the 2003 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

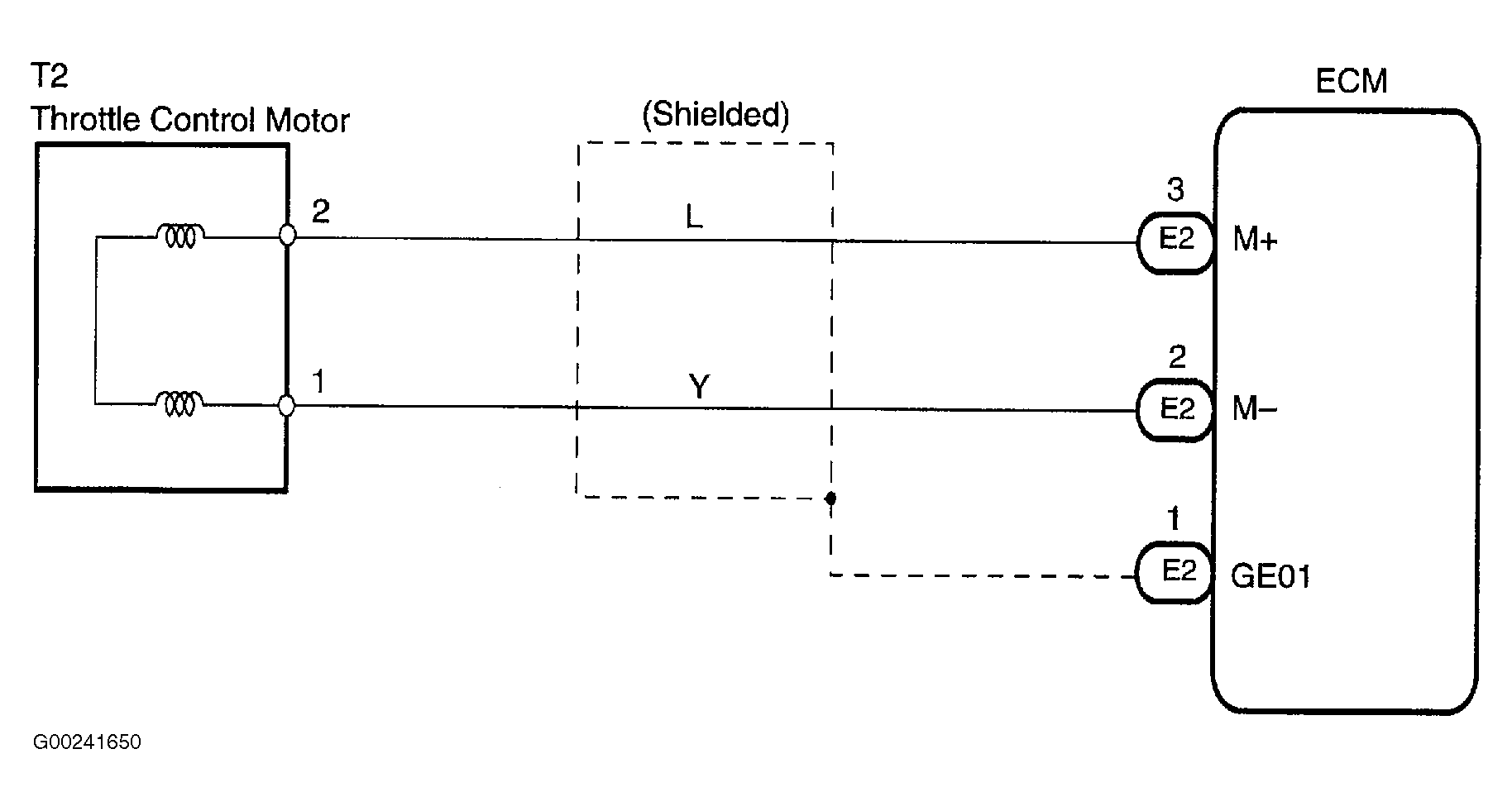

Throttle motor is operated by the ECM and it opens and closes the throttle valve. The opening angle of the throttle valve is detected by the throttle position sensor which is mounted on the throttle body. It provides feedback to the ECM to control the throttle motor in order to control the throttle valve opening angle properly in response to the driving condition. If this DTC is stored, ECM shuts down the power for the throttle motor, and the throttle valve is fully closed by the return spring. Throttle valve is locked at a certain opening angle. Also, the whole electronically controlled throttle operation is cancelled until the system returns to normal and the ignition switch is turned OFF. See Fig 1. Possible causes are:
- Open or short in throttle control motor circuit.
- Faulty throttle control motor.
- Faulty ECM.
