Diagnosis & Repair
WARNING: This page is about a different car, the 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Using hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.
After confirming DTC P0100, use Toyota hand-held tester or scan tool to access CURRENT DATA to confirm MAF meter air flow rate. If MAF meter air flow rate is 0.0 gm/sec., VG circuit may be open or shorted, or power source circuit may be open. If MAF meter air flow rate is 271.0 gm/sec. or more, EVG circuit may be open.

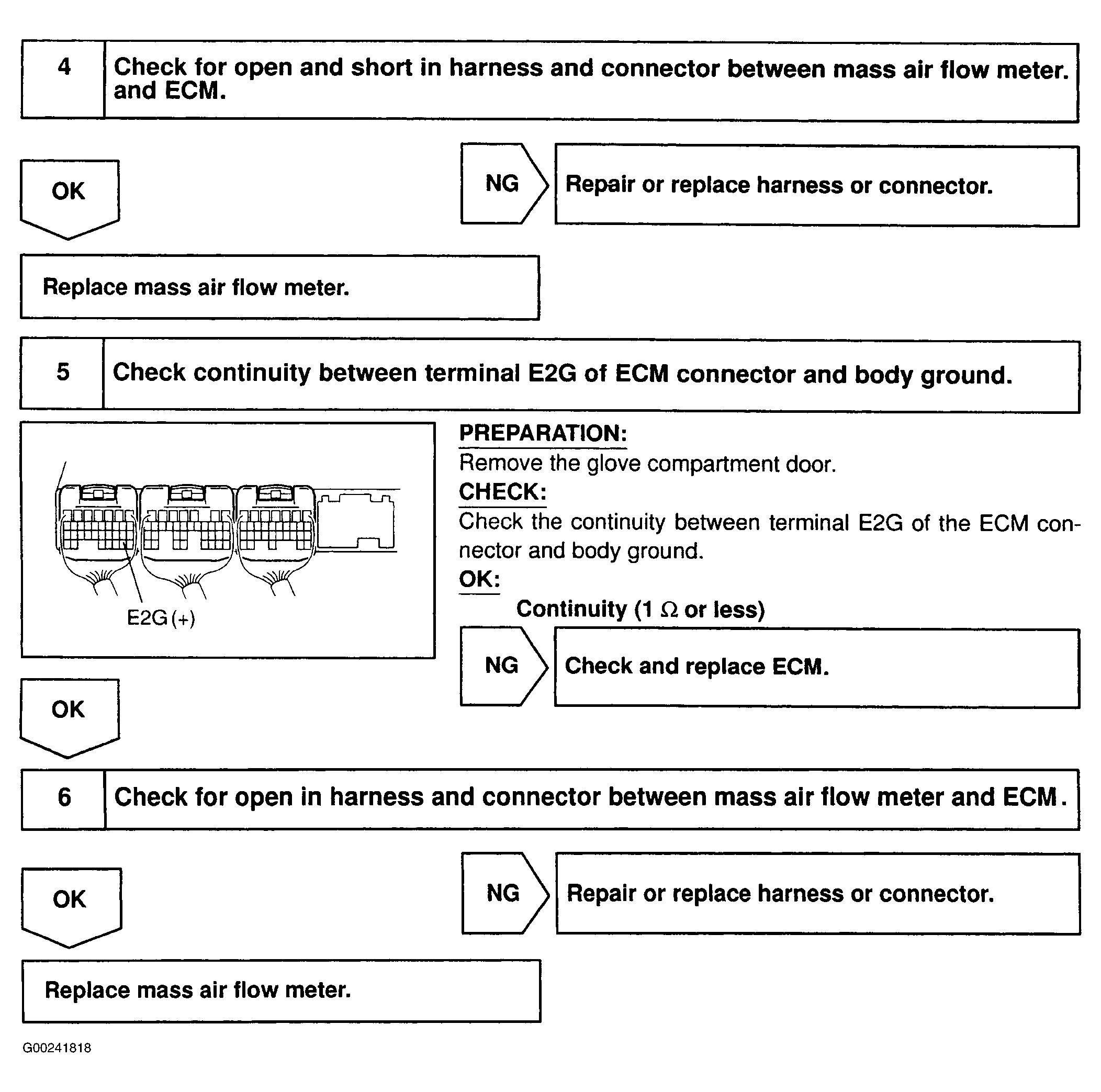

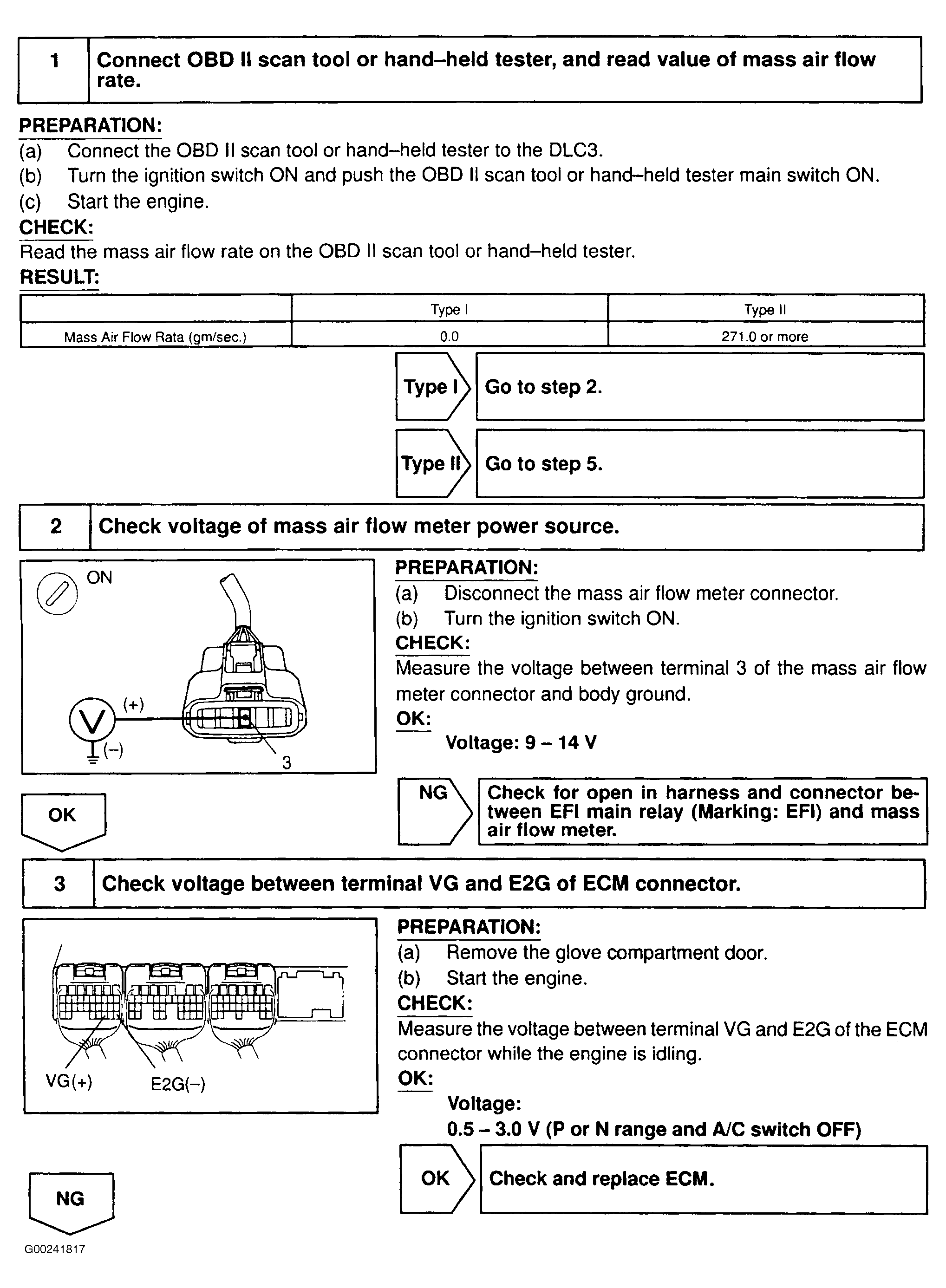

For diagnosis and repair procedure, see Fig 1 & Fig 2 .

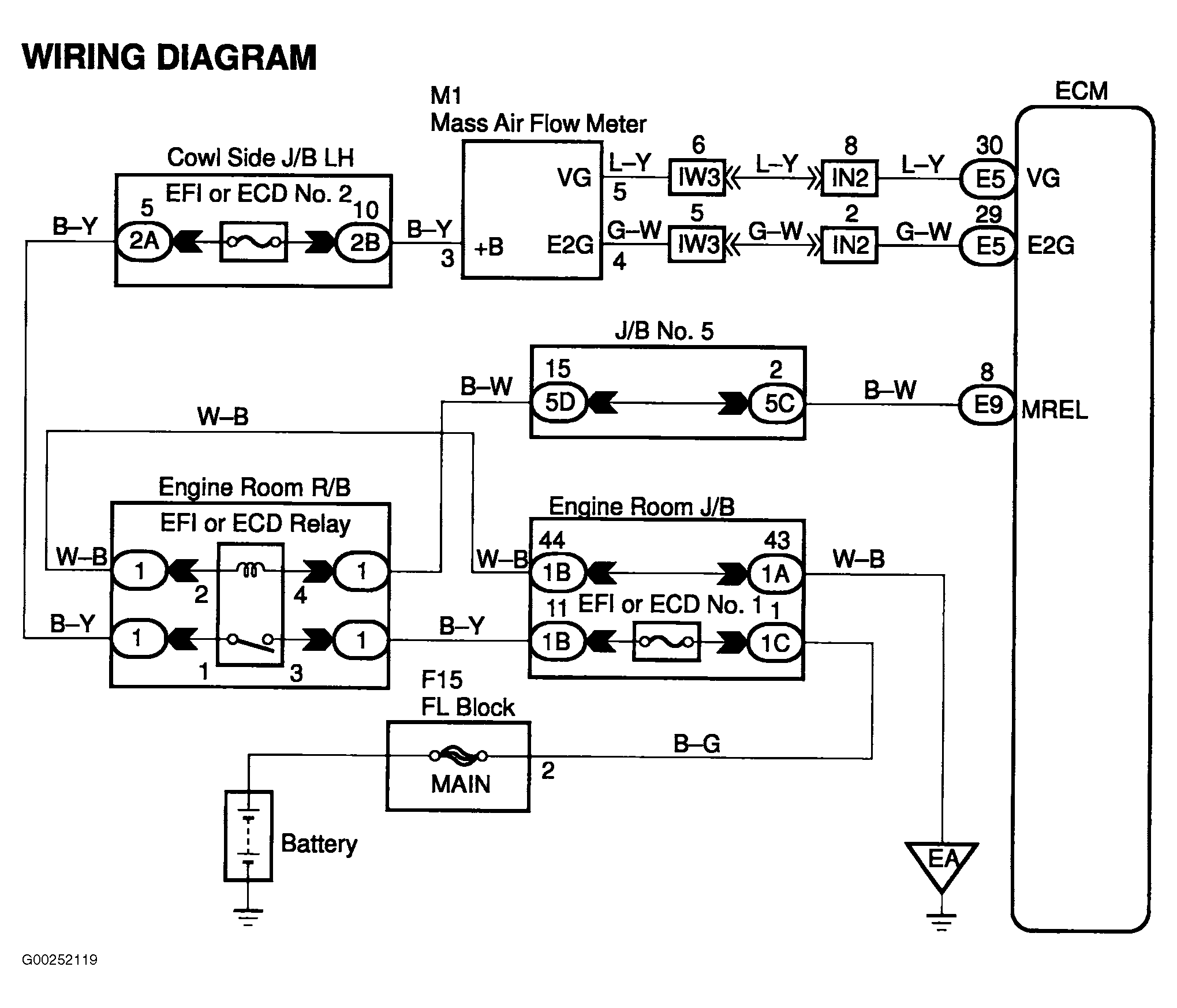

For ECM location, see Figure. For ECM connector terminal view, see Figure. For MAF meter circuit wiring diagram, see Fig 3. For location of emission related components, see Figure.
For testing of systems or components, see SYSTEM & COMPONENT TESTING - V6 & V8 article. For removal and installation of components, see REMOVAL & INSTALLATION - V6 & V8 article.
