Diagnosis & Repair
WARNING: This page is about a different car, the 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Using hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.
After confirming DTC P0110, use Toyota hand-held tester or scan tool to access CURRENT DATA to read the intake air temperature for IAT sensor. If displayed intake air temperature is -40°F (-40°C), IAT sensor circuit may be open. If displayed intake air temperature is 284°F (140°C) or more, IAT sensor circuit may be shorted.

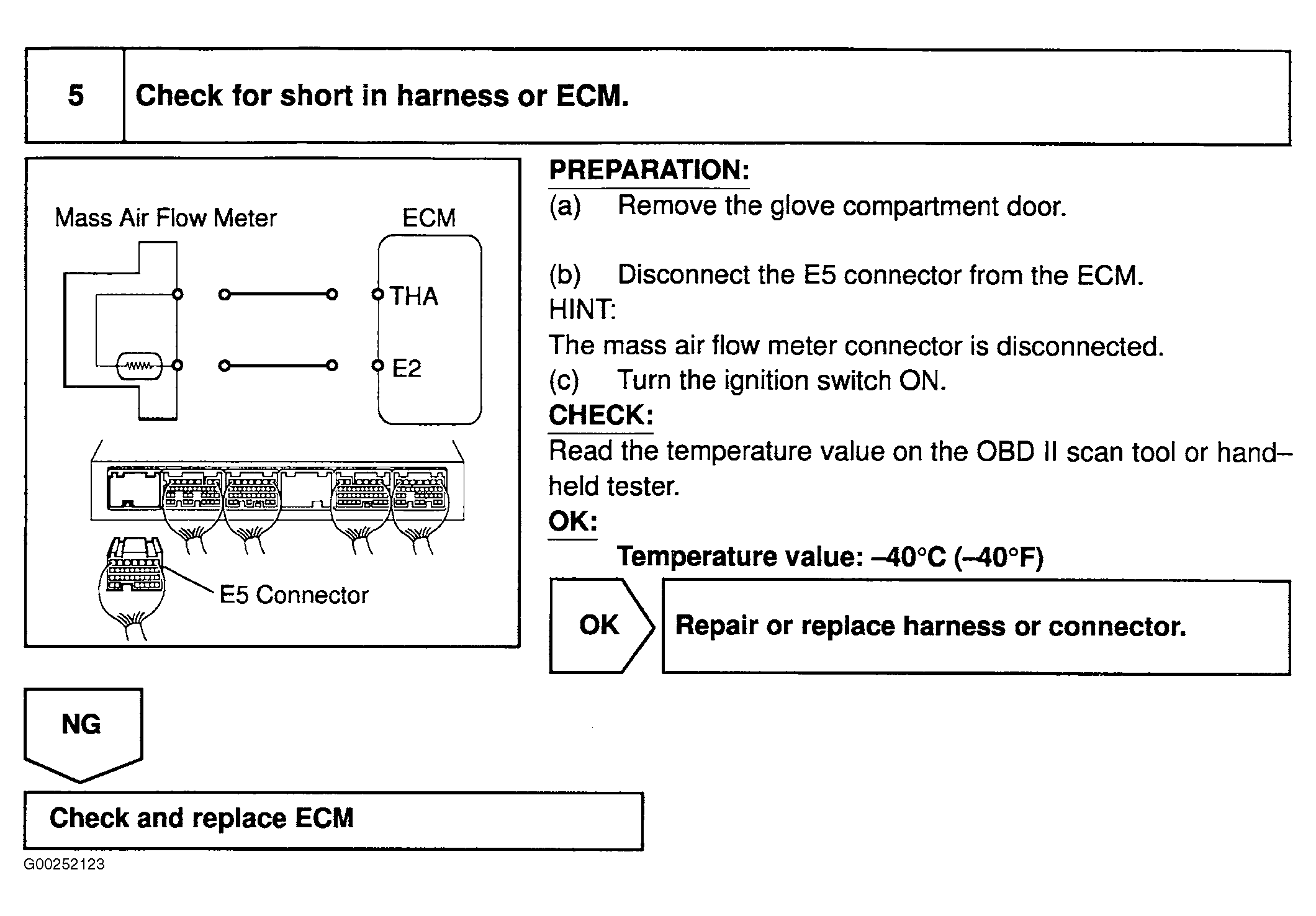

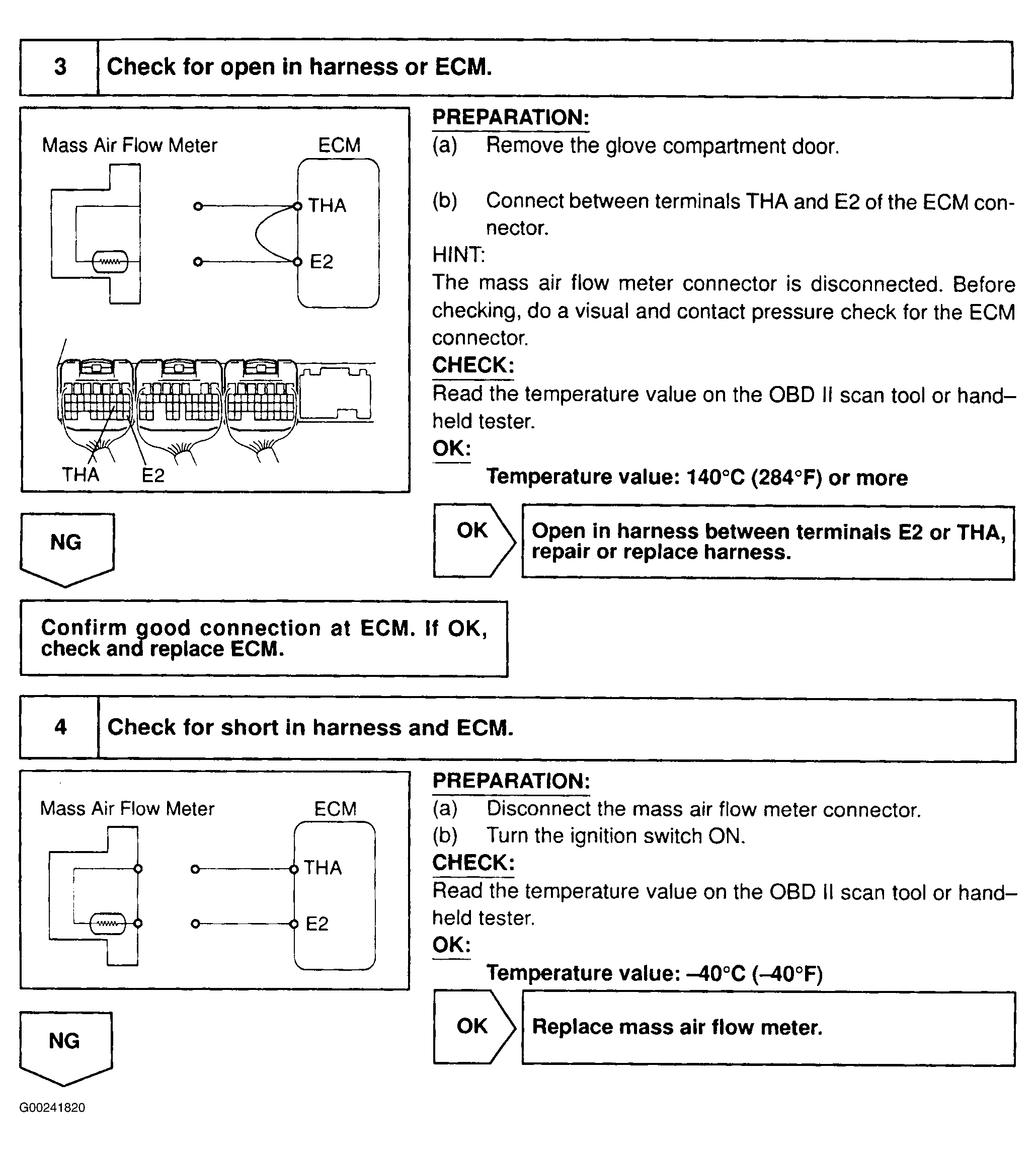

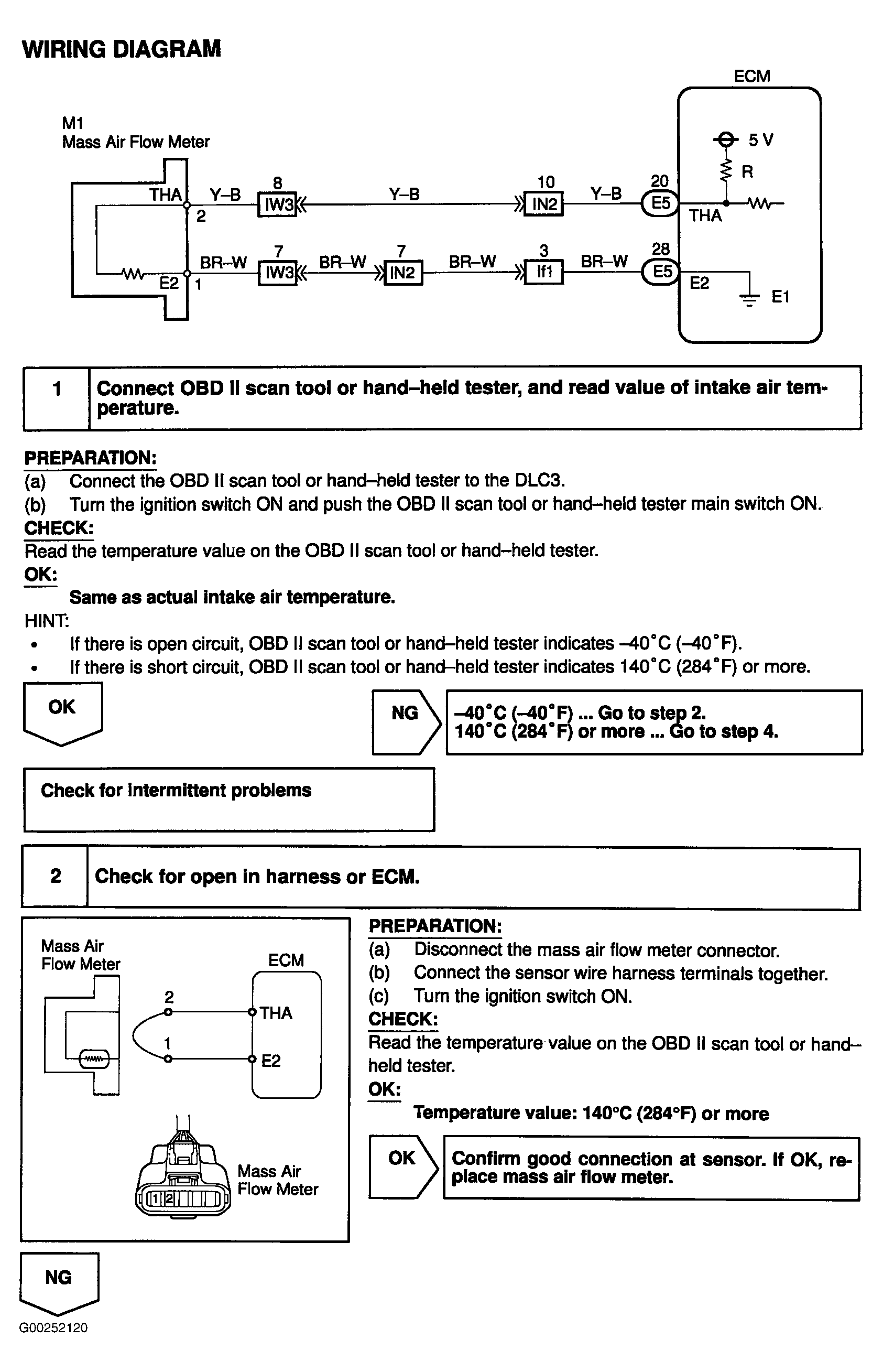

For IAT sensor circuit wiring diagram, diagnosis and repair procedure, see Fig 1-Fig 3 .
For ECM location, see Figure. For ECM connector terminal view, see Figure. For location of emission related components, see Figure.
For testing of systems or components, see SYSTEM & COMPONENT TESTING - V6 & V8 article. For removal and installation of components, see REMOVAL & INSTALLATION - V6 & V8 article.
