Diagnosis & Repair
WARNING: This page is about a different car, the 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

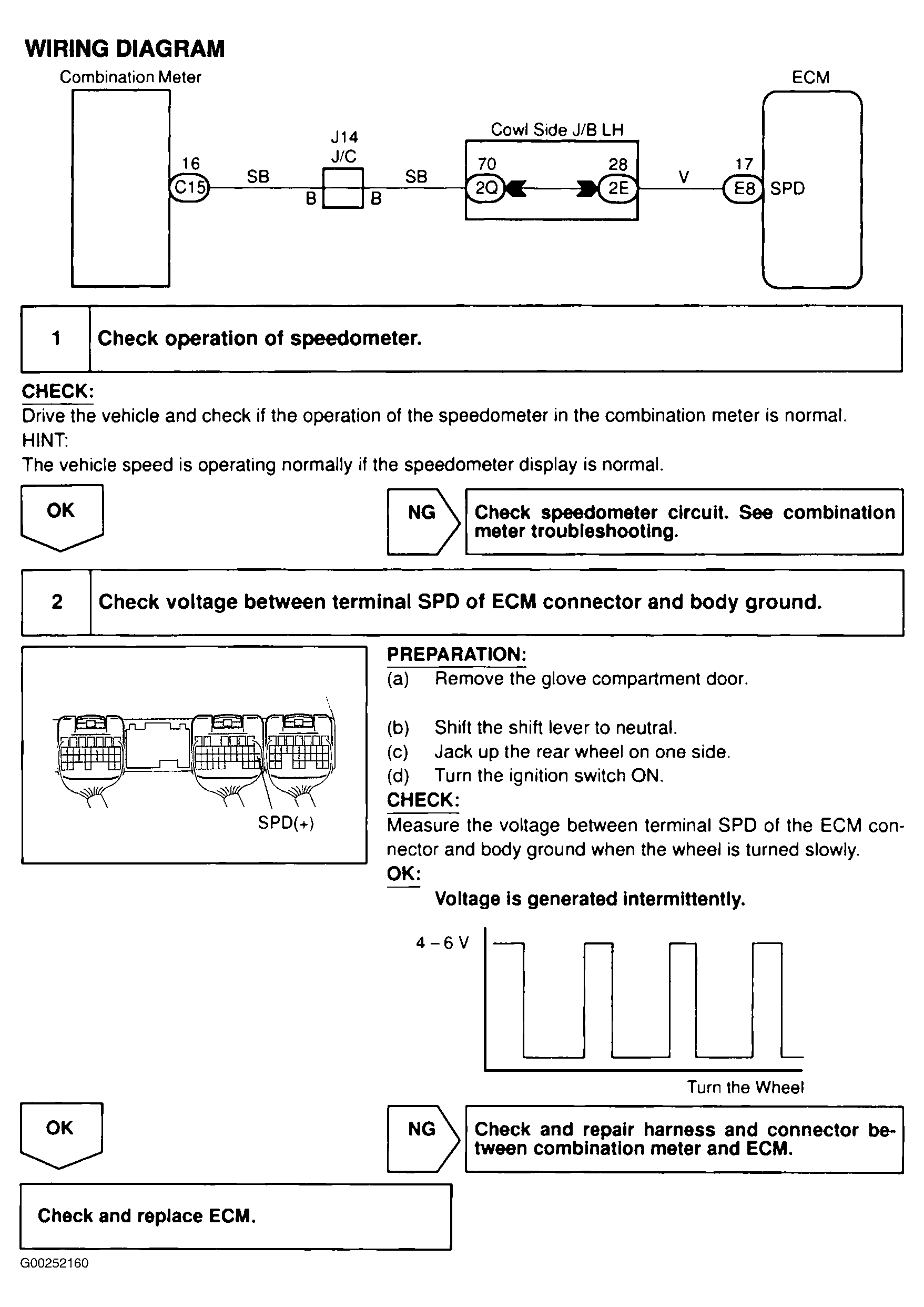

For circuit wiring diagram, diagnosis and repair procedure, see Fig 1.
For ECM location, see Figure. For ECM connector terminal view, see Figure. For location of emission related components, see Figure.
For testing of systems or components, see SYSTEM & COMPONENT TESTING - V6 & V8 article. For removal and installation of components, see REMOVAL & INSTALLATION - V6 & V8 article.
