Diagnosis & Repair
WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.
For diagnosis and repair procedure, see Fig 1. Crankshaft position sensor is located at front of crankshaft, near crankshaft pulley. See Fig 2.

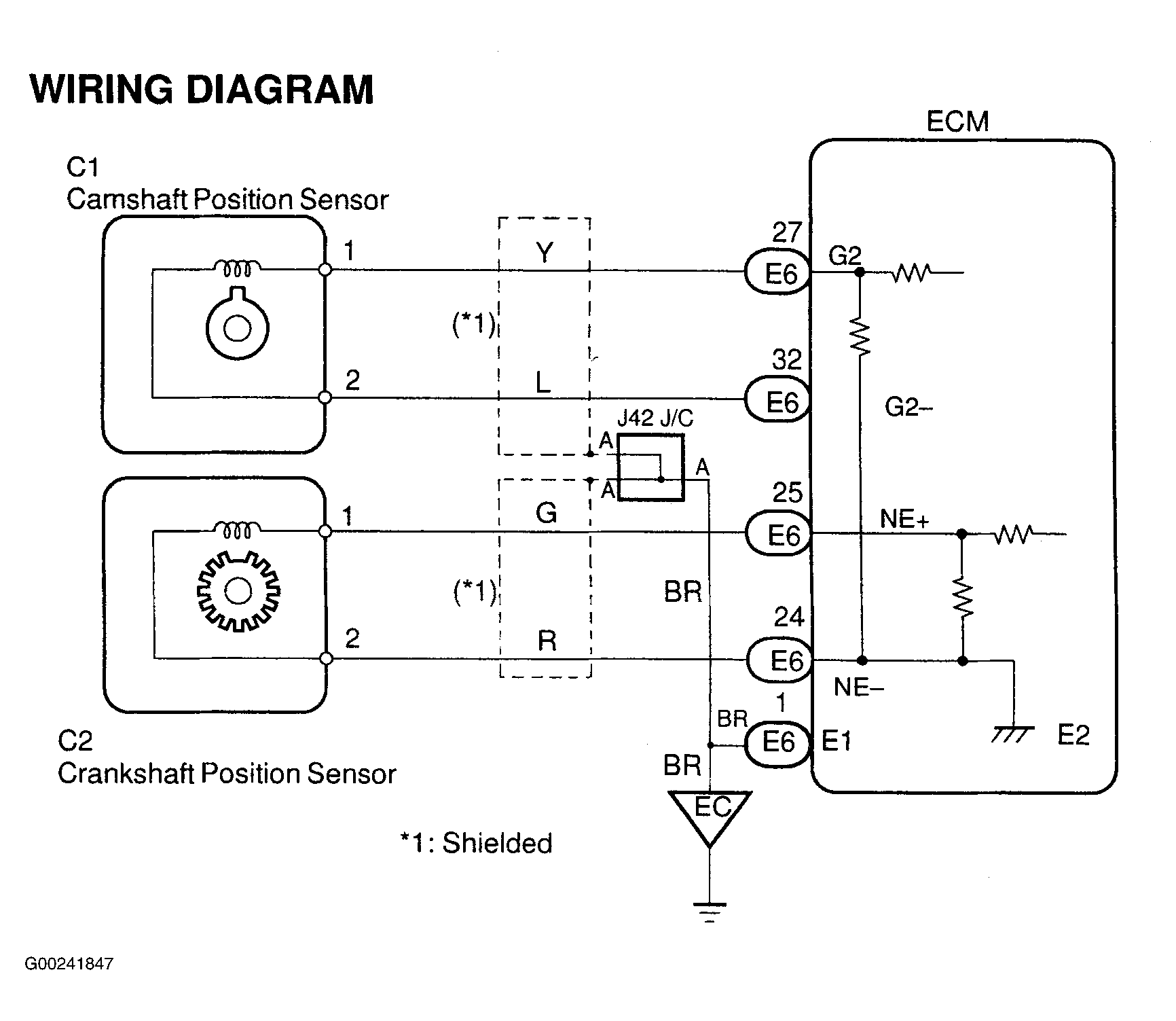

For ECM location, see Figure. For ECM connector view, see Figure. For CKP and CMP sensor circuit wiring diagram, see Fig 3. For testing of systems or components, see BASIC DIAGNOSTIC PROCEDURES - V6 & V8 article or SYSTEM & COMPONENT TESTING - V6 & V8 article. For adjustments, see ON-VEHICLE ADJUSTMENTS - V6 & V8 article. For removal and installation of components, see REMOVAL & INSTALLATION - V6 & V8 article.
