Possible Causes

WARNING: This page is about a different car, the 2003 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For DTC detection conditions and possible causes, see Fig 1.

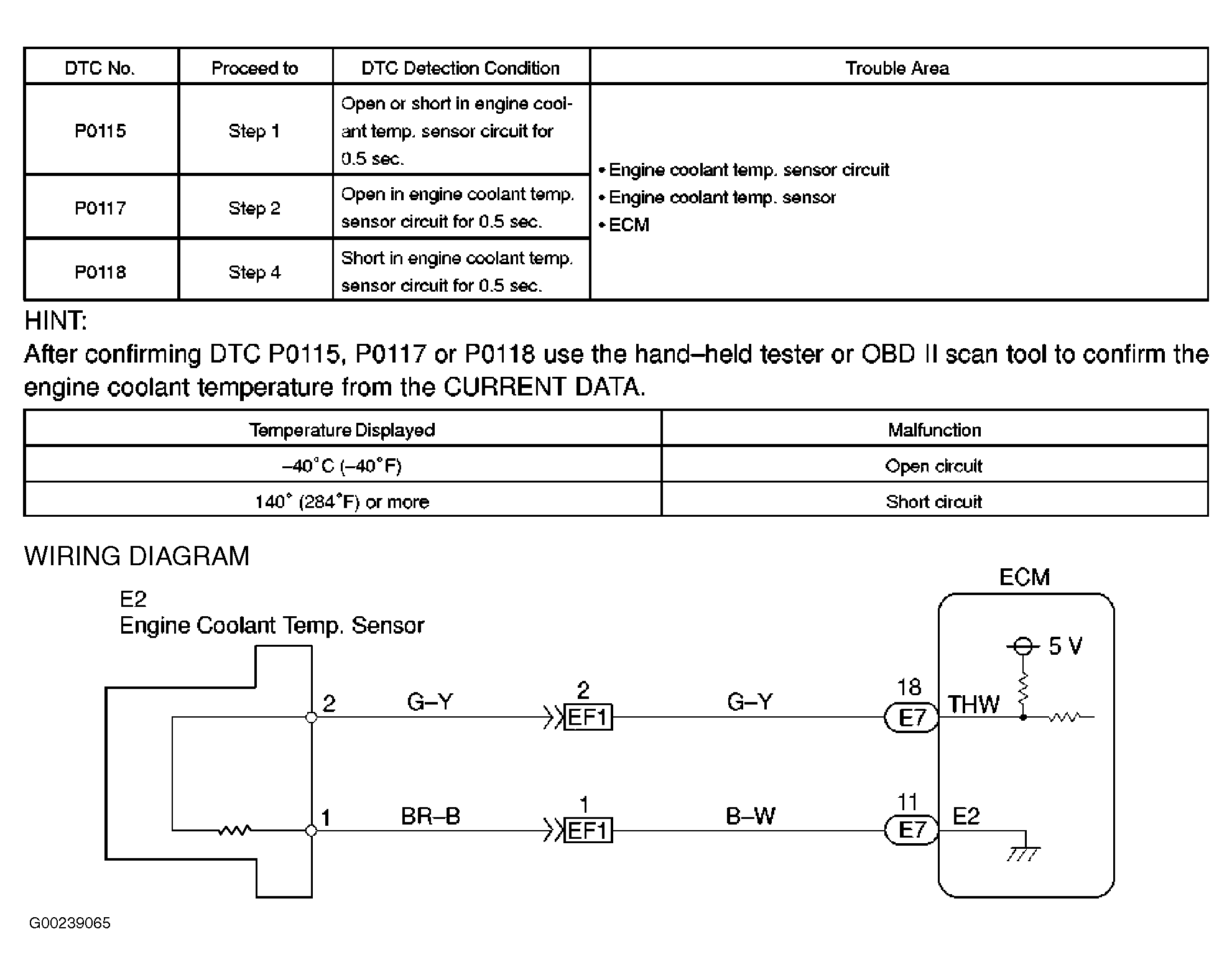

Fig 1: DTCs P0115, P0117 & P0118 Detection Conditions, Possible Causes & Wiring Diagram
G00239065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
