Possible Causes

WARNING: This page is about a different car, the 2003 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For DTCs P0120, P0122, P0123, P0220, P0222, P0223 & P2135 detection conditions and possible causes, see Fig 1

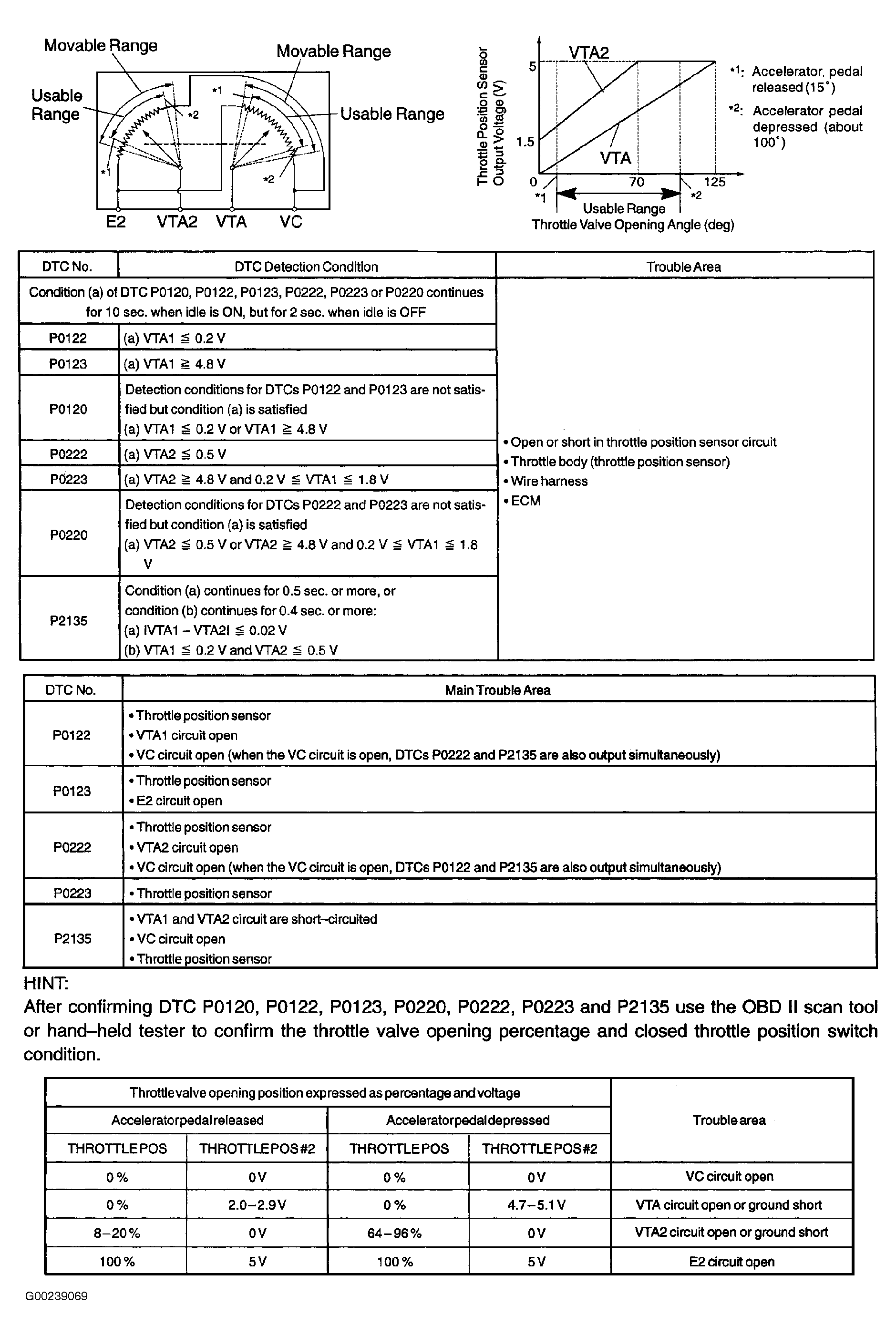

Fig 1: DTC Detection Condition & Possible Causes
G00239069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
