Possible Causes
WARNING: This page is about a different car, the 2003 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

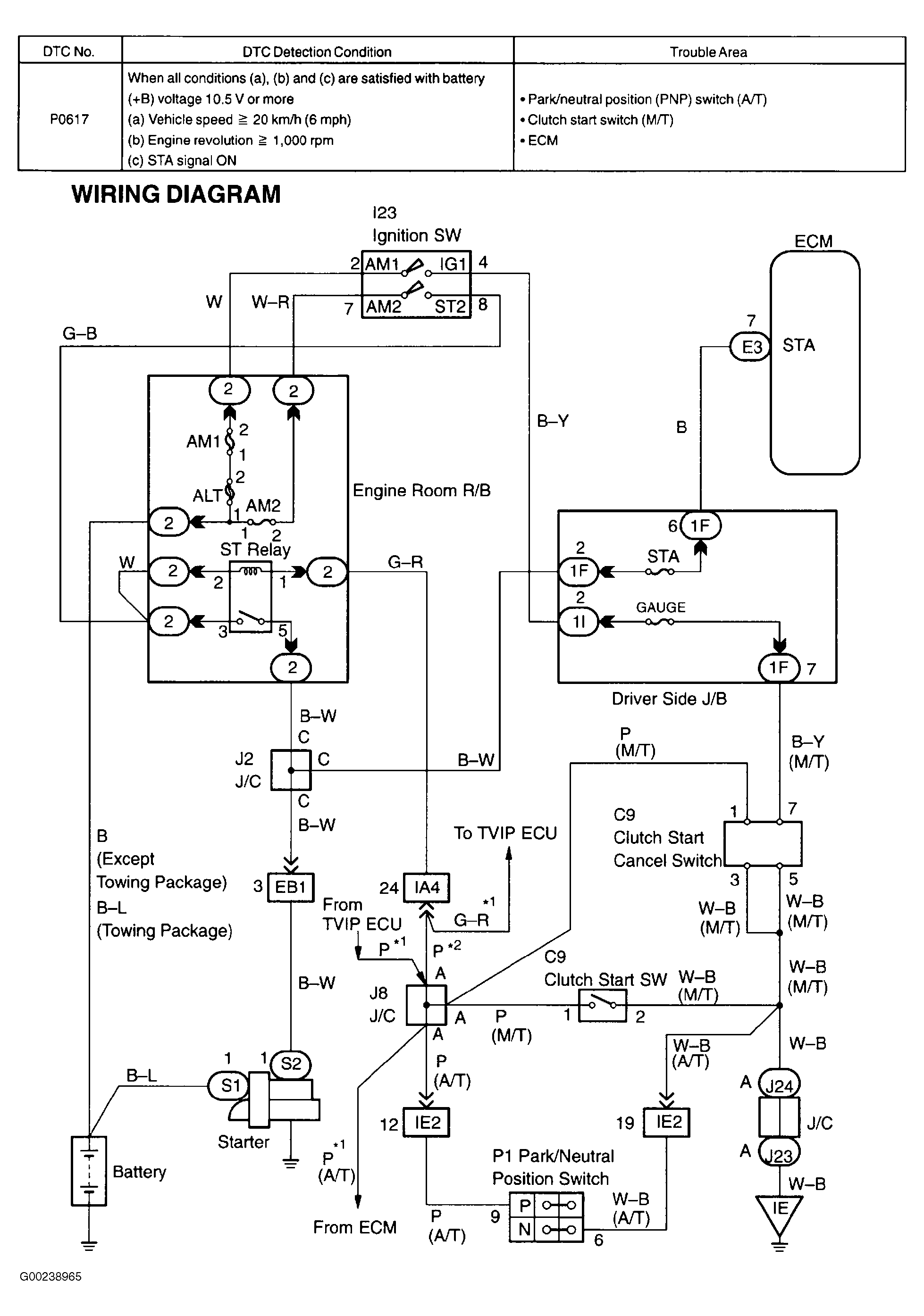

For DTC detection conditions and possible causes and circuit diagram, see Fig 1.
