4Runner 4.7L

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

For throttle body inspection procedure, see Fig 1 and Fig 2 . To check throttle control motor, see Fig 3. To inspect accelerator position sensor wiring, see ACCELERATOR PEDAL POSITION SENSOR under ENGINE SENSORS & SWITCHES.

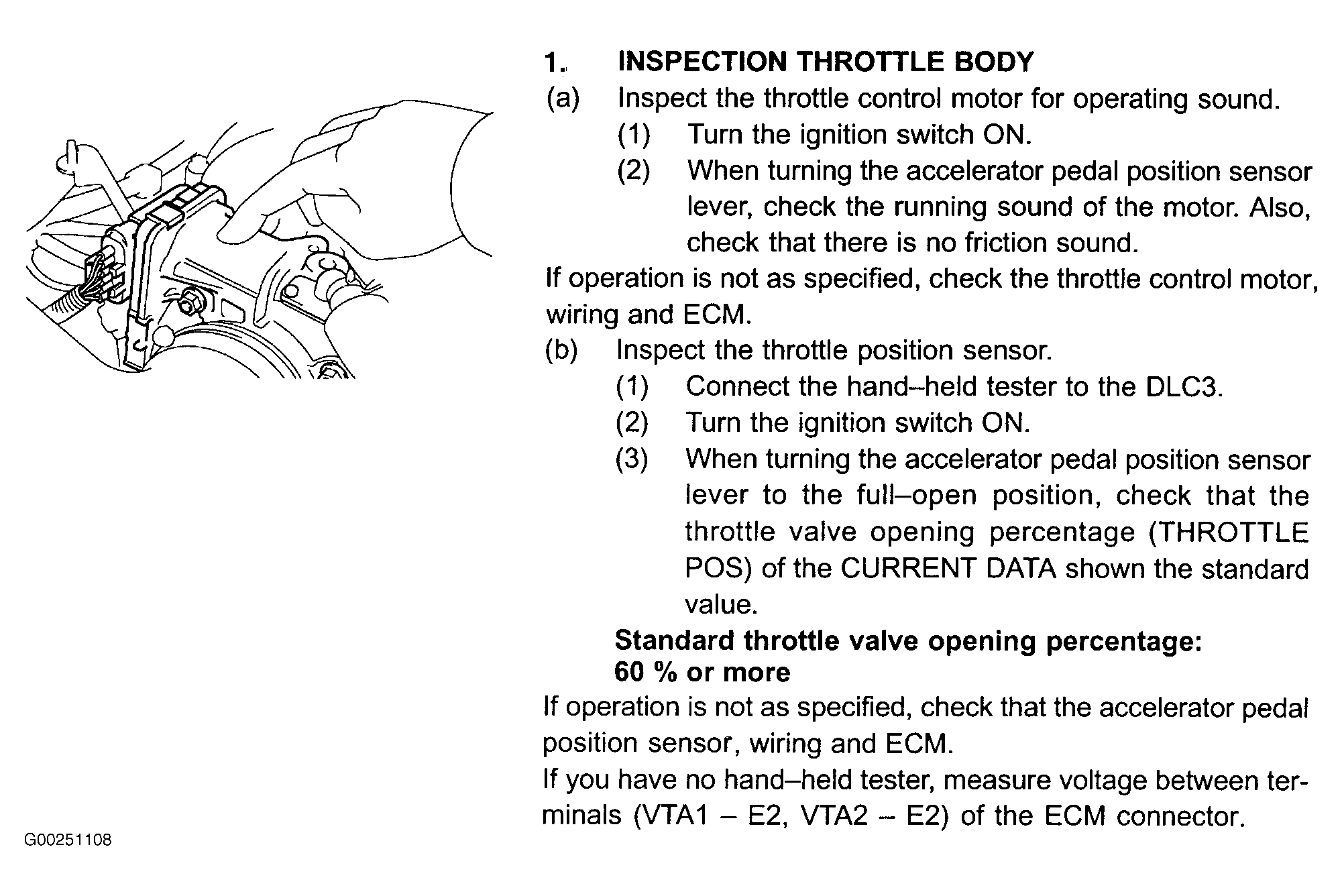

Fig 1: Inspecting Throttle Body - 1 of 2 (4Runner 4.7L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

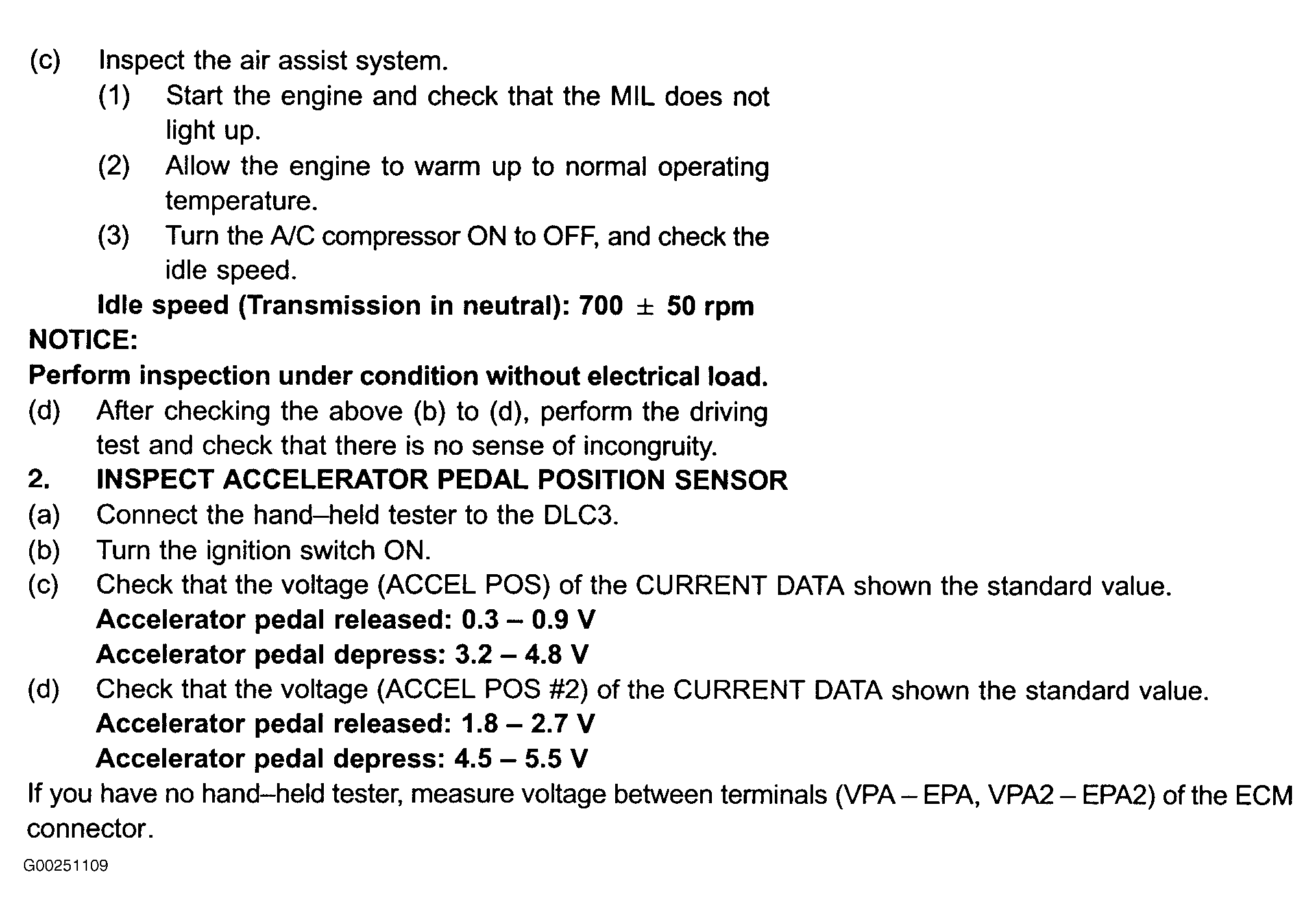

Fig 2: Inspecting Throttle Body - 2 of 2 (4Runner 4.7L)

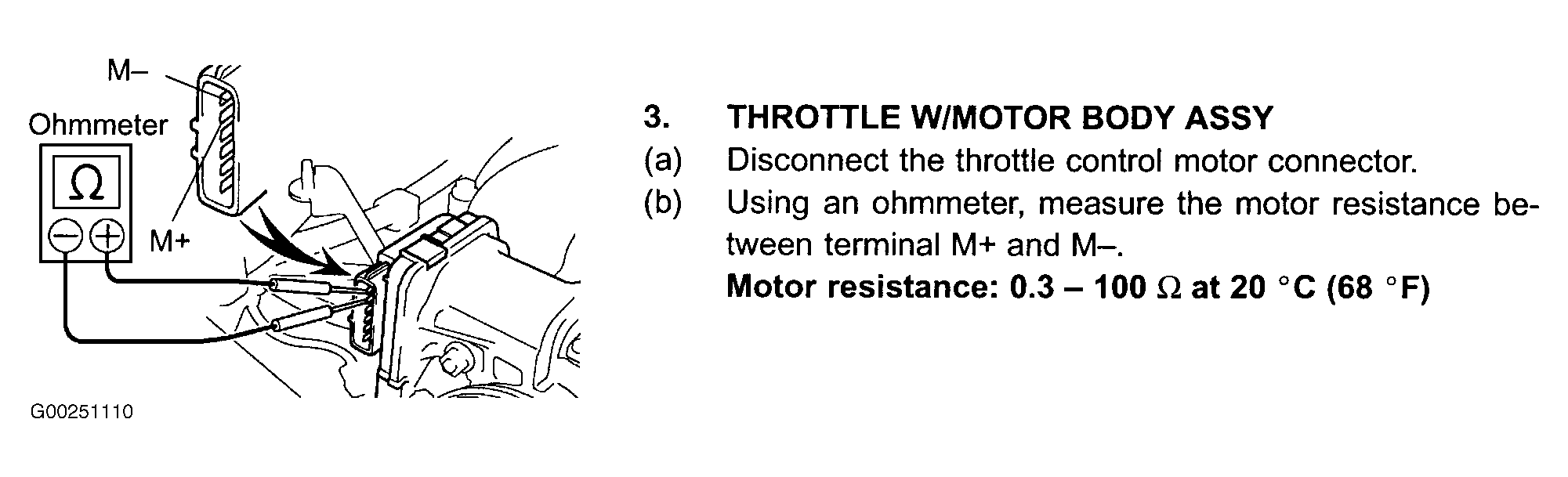

Fig 3: Inspecting Throttle Control Motor (4Runner 4.7L)
