Continuity Test
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition off. Disconnect Black 18-pin electrical harness connector from wiper/washer switch at bottom of upper steering column bracket. Remove wiper/washer switch. Note wiper/washer switch positions and electrical terminals.

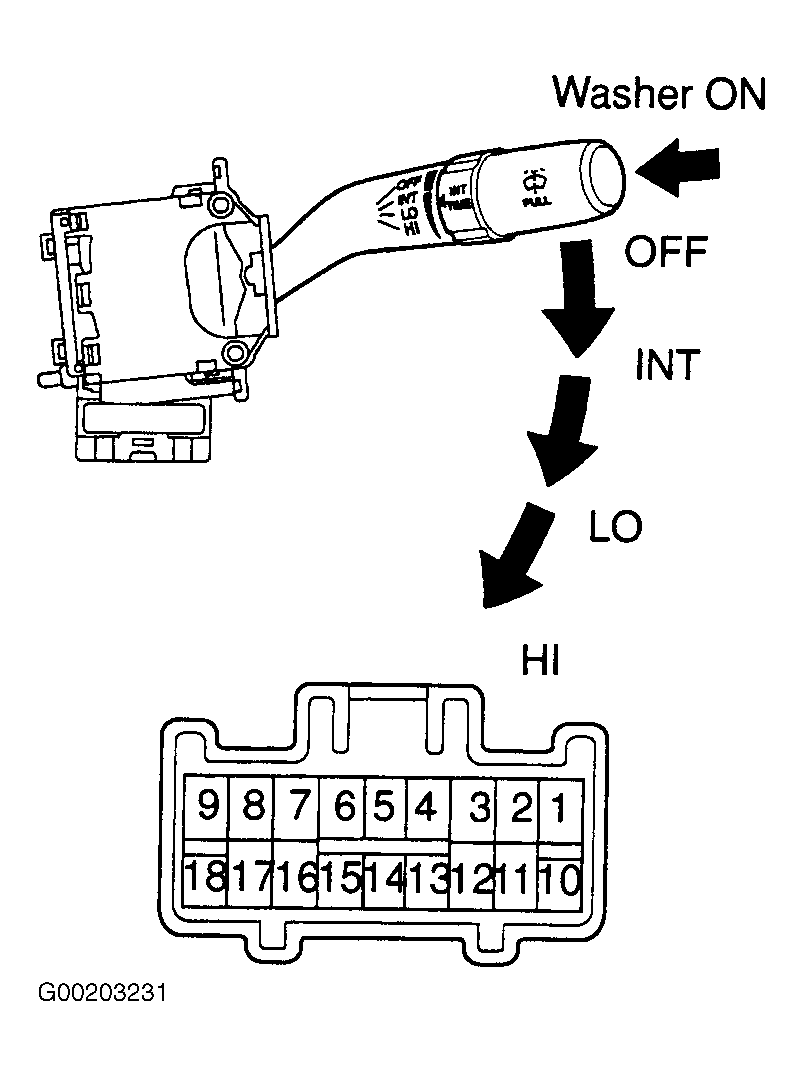

- Using a DVOM, check continuity between specified terminals of wiper/washer switch with wiper/washer switch in each specified position. See Fig 1. See WIPER/WASHER SWITCH CONTINUITY table. If continuity is not as specified, replace wiper/washer switch. See WIPER/WASHER SWITCH under REMOVAL & INSTALLATION.
WIPER/WASHER SWITCH CONTINUITY
| Switch Position | DVOM Test Points | Specification |
|---|---|---|
| OFF | 7 & 16 | Continuity |
| INT | 7 & 16 | Continuity |
| LO | 7 & 17 | Continuity |
| HI | 8 & 17 | Continuity |
| Washer On | 2 & 11 | Continuity |
