Component Location Graphics

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

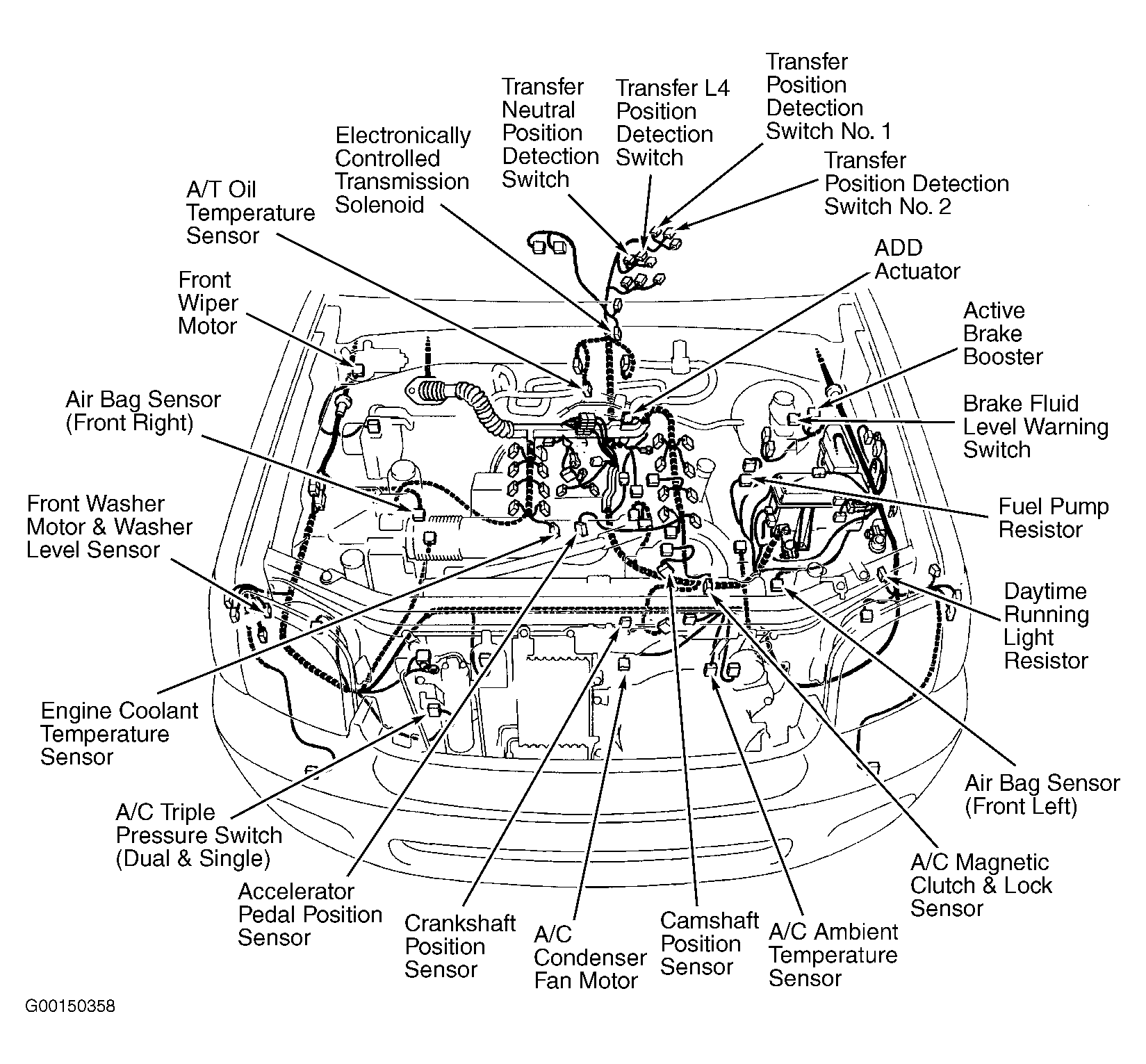

Fig 1: Engine Compartment

G00150358

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

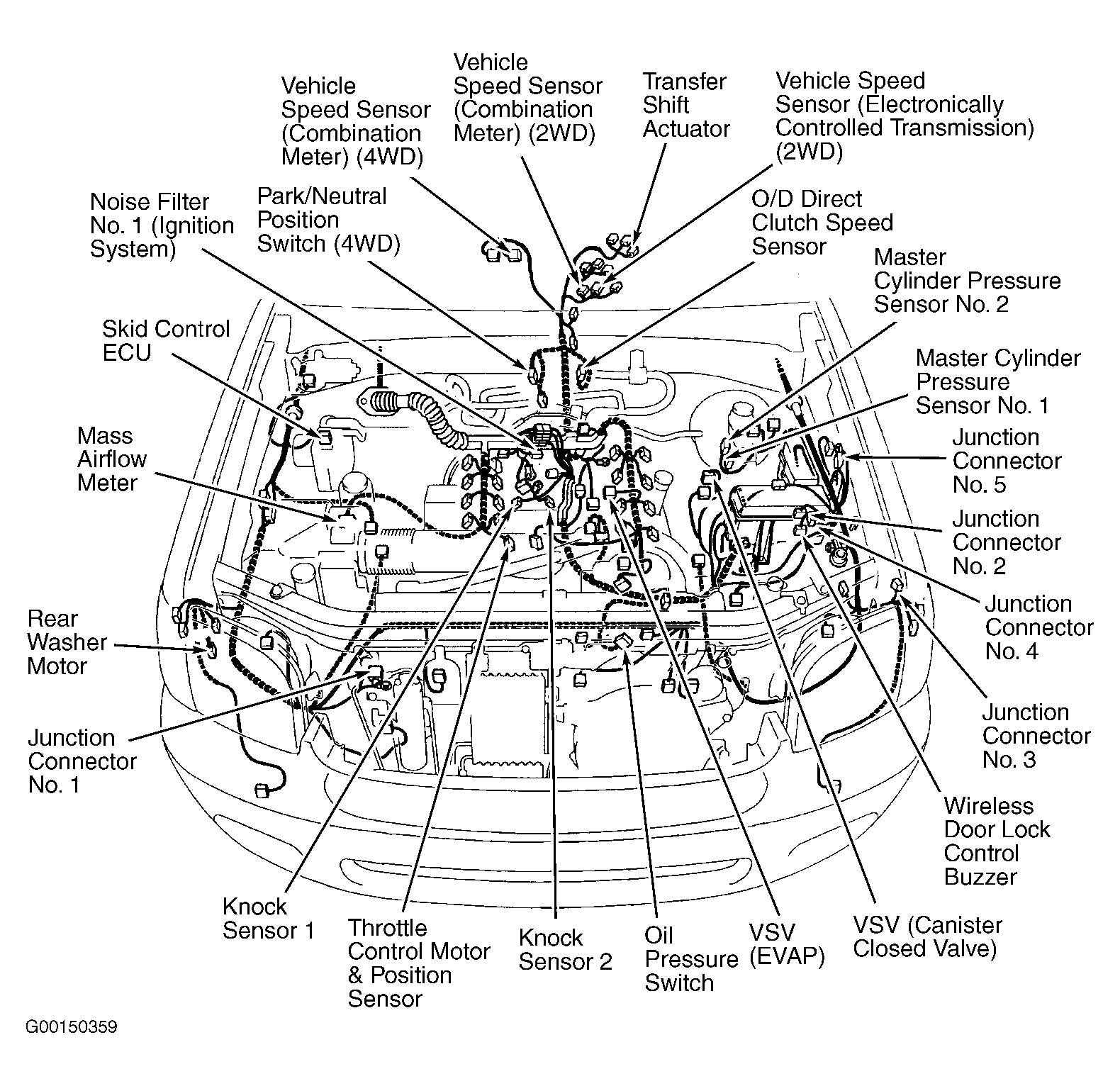

Fig 2: Engine Compartment

G00150359

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

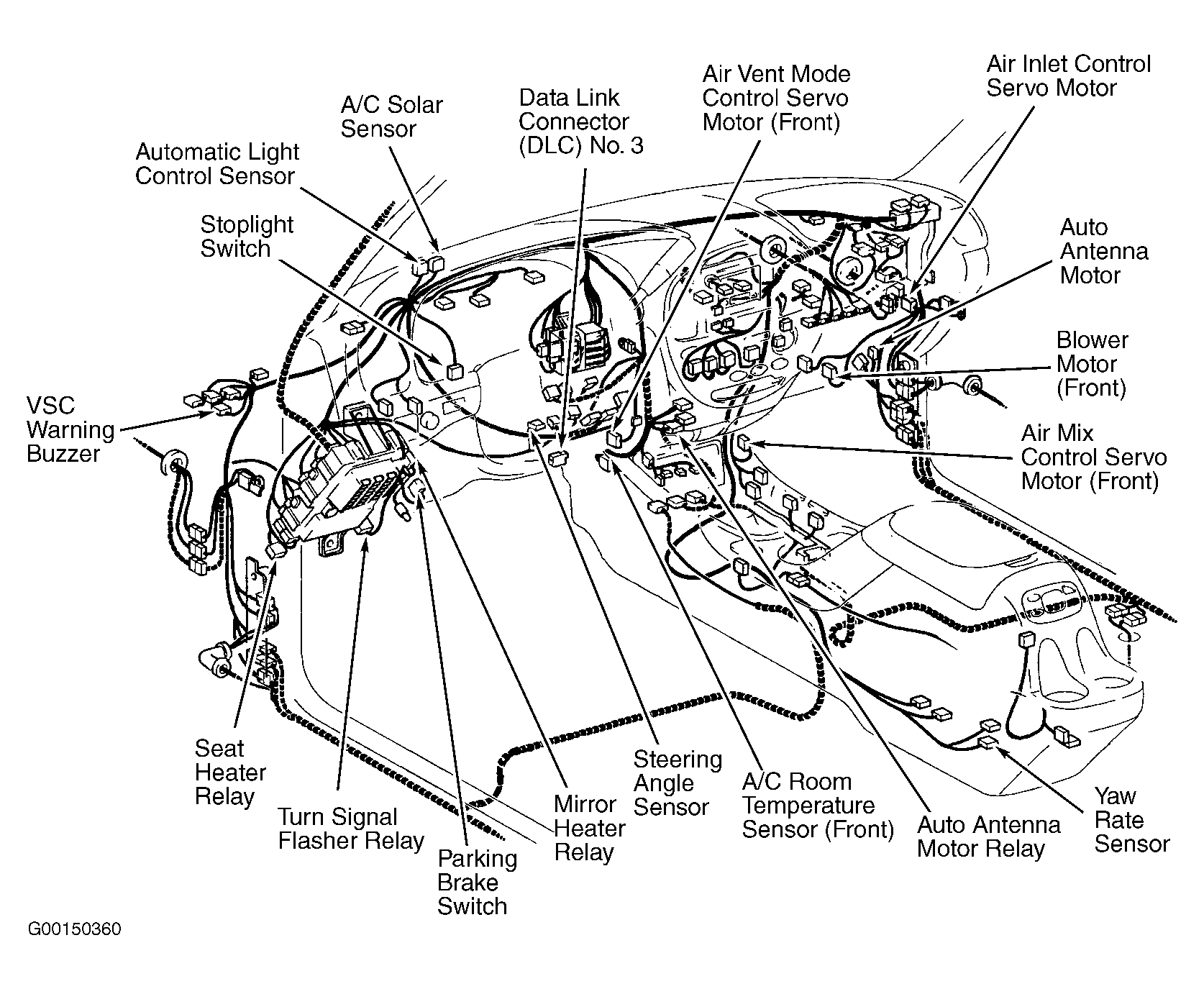

Fig 3: Dash

G00150360

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Dash

G00027545

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Vehicle Overview

G00027546

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

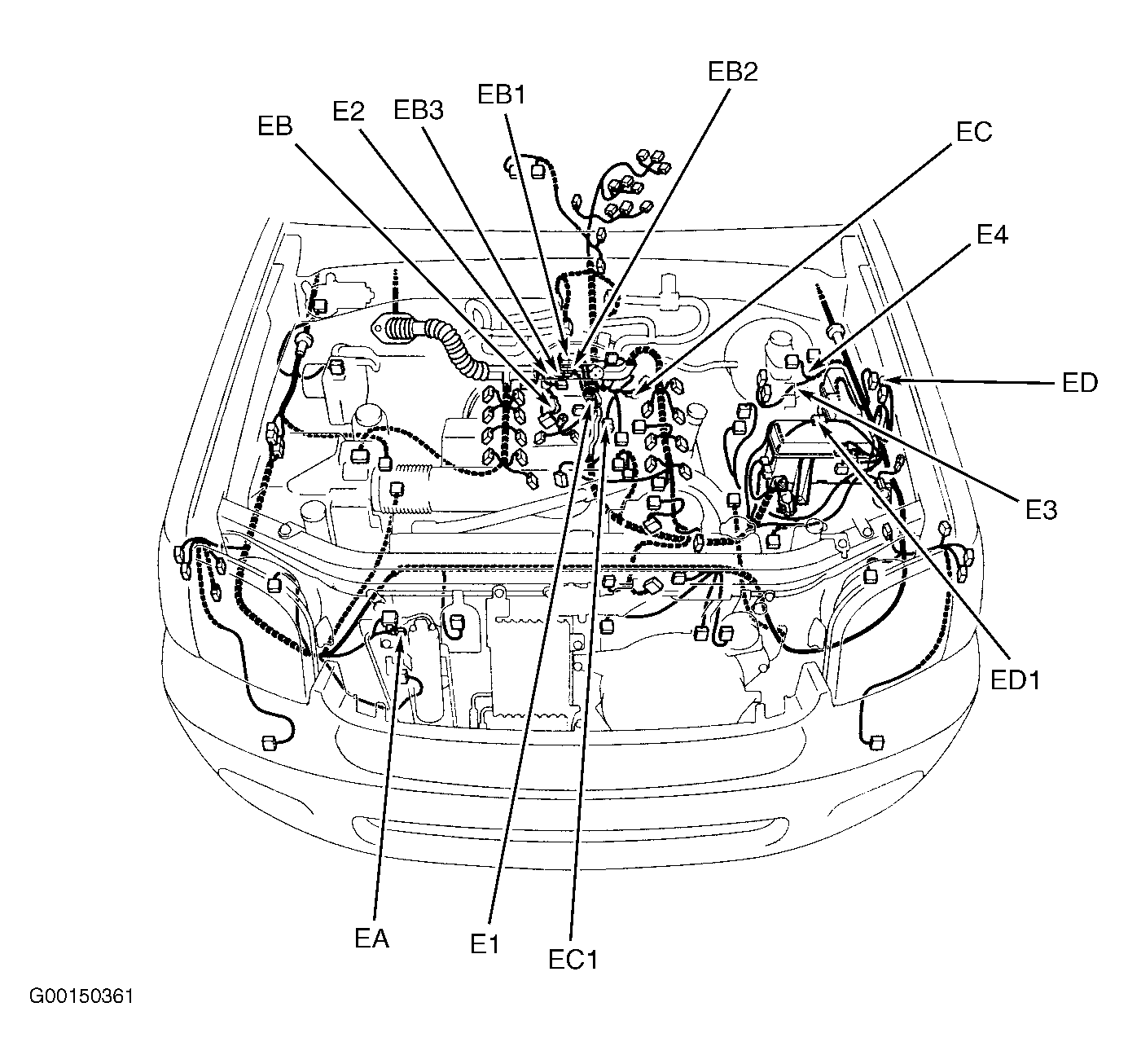

Fig 6: Engine Compartment

G00150361

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

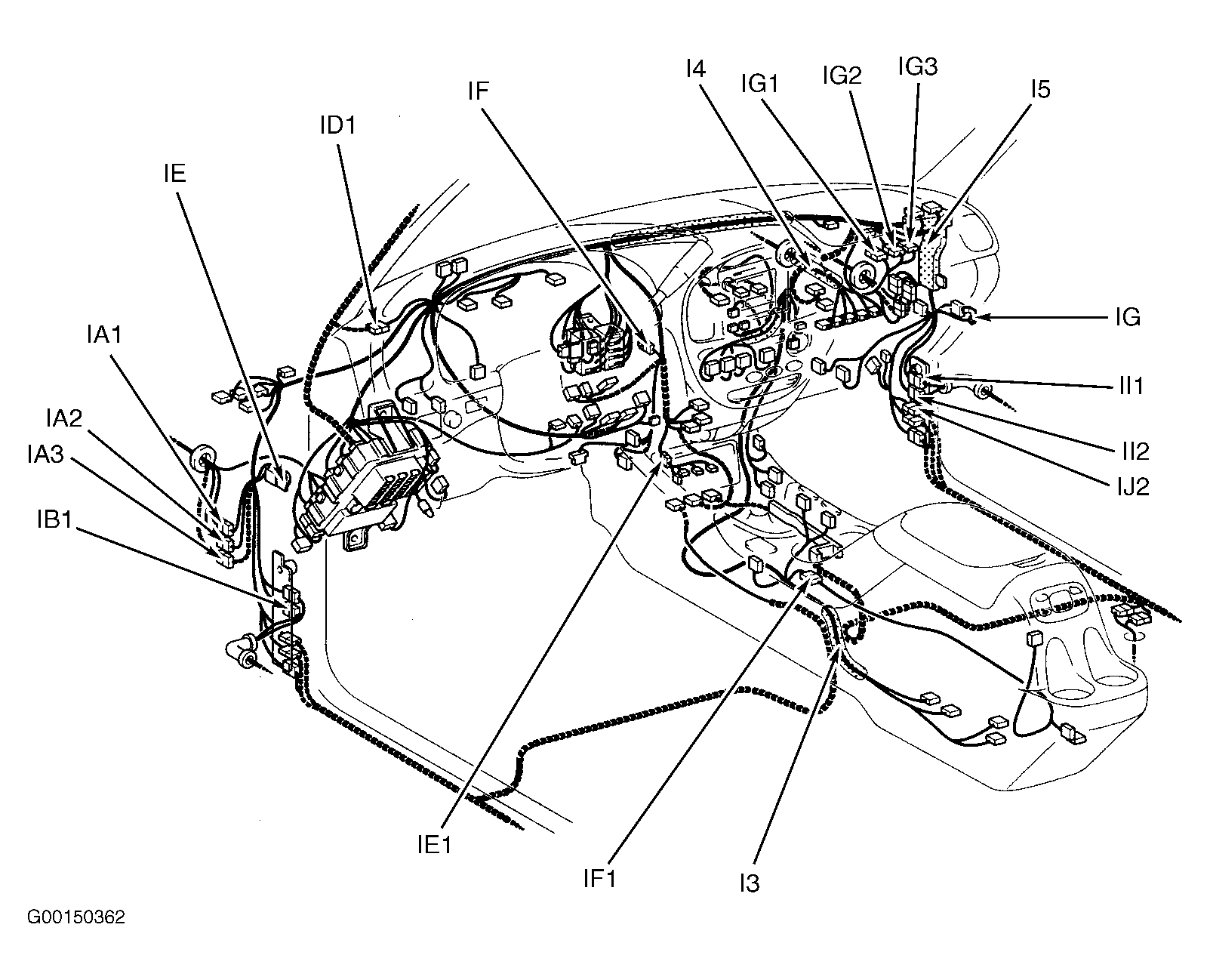

Fig 7: Dash

G00150362

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

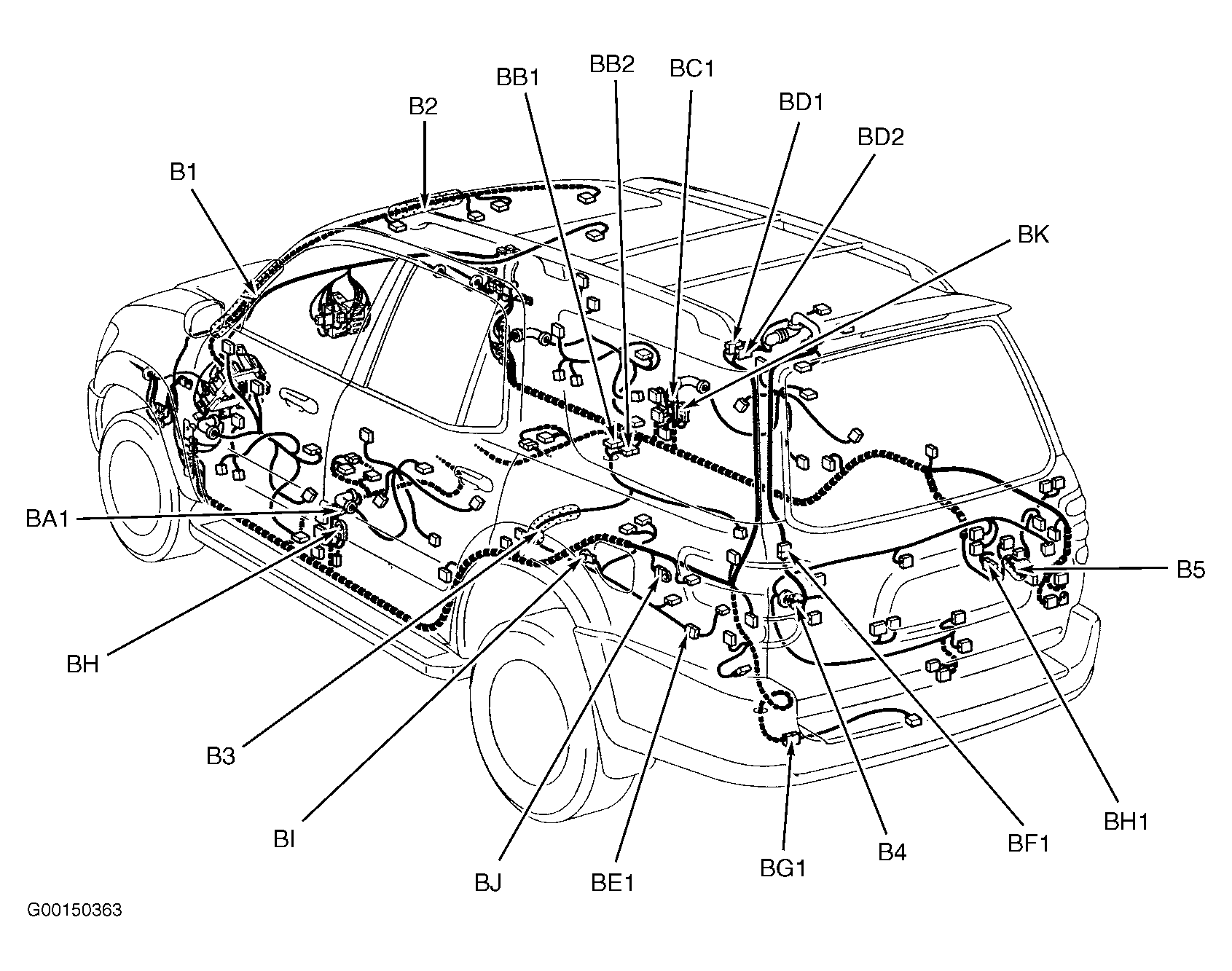

Fig 8: Vehicle Overview

G00150363

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
