Rear Wheel Alignment

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

Measure vehicle height (see step MEASURE VEHICLE HEIGHT ) .
Install camber/caster/kingpin gauge or position vehicle on wheel alignment tester .
1. Follow the specific instructions of the equipment manufacturer.
Inspect camber .

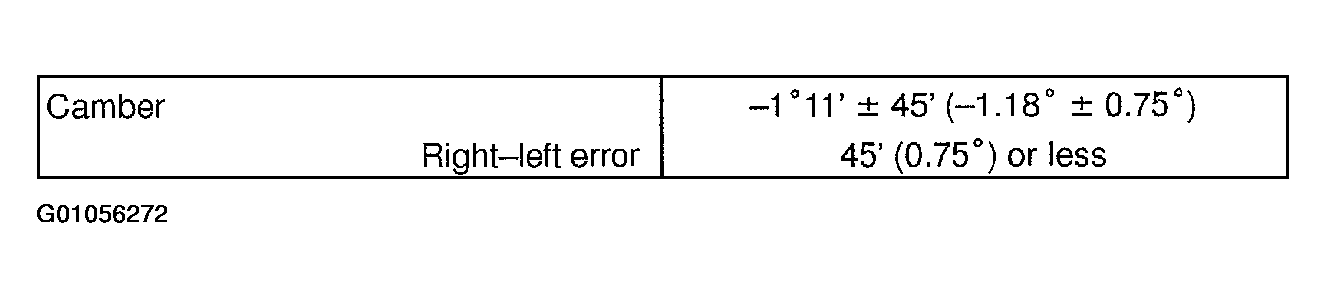

1. Camber:

  Fig 1: Identifying Camber Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the camber is not within the specified value, after the toe-in is inspected, see step 5 to adjust.
Inspect toe-in .

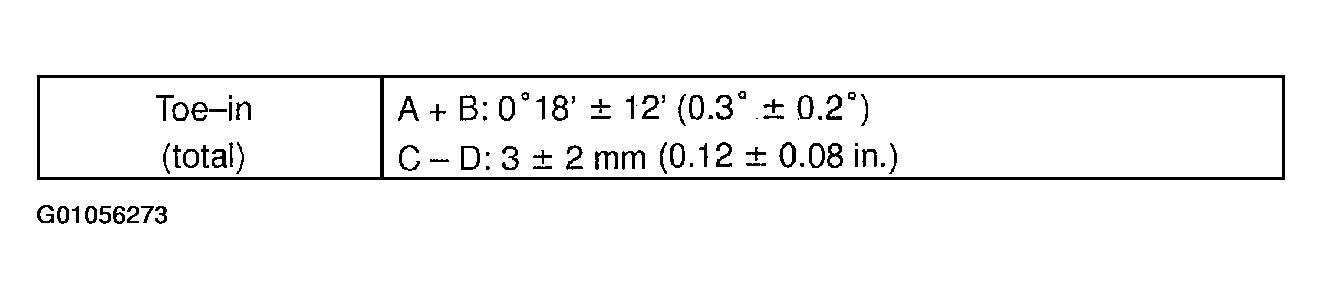

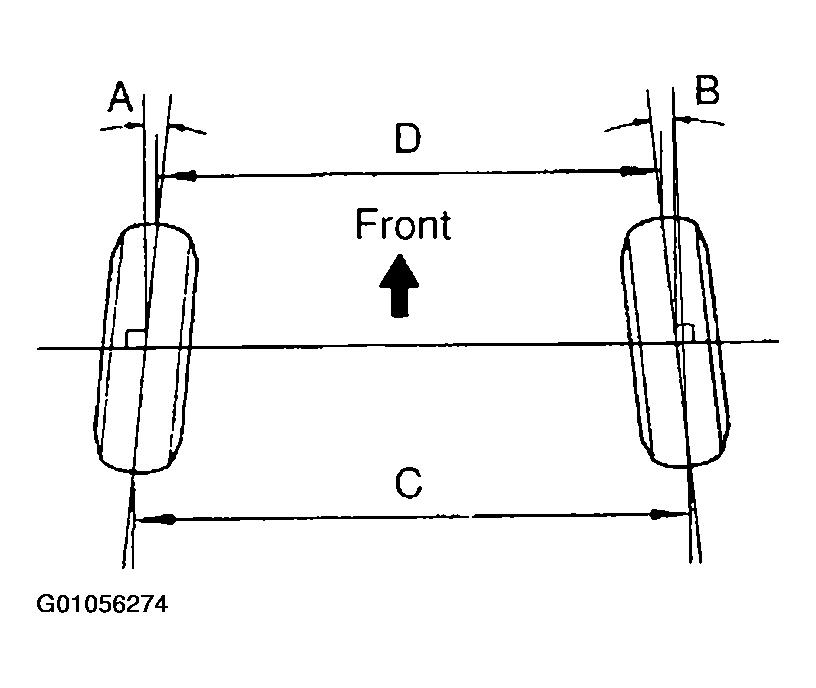

1. Toe-in:

  Fig 3: Identifying Toe-In Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the toe-in is not within the specified value, see step 5 to adjust.
Adjust camber and toe-in .

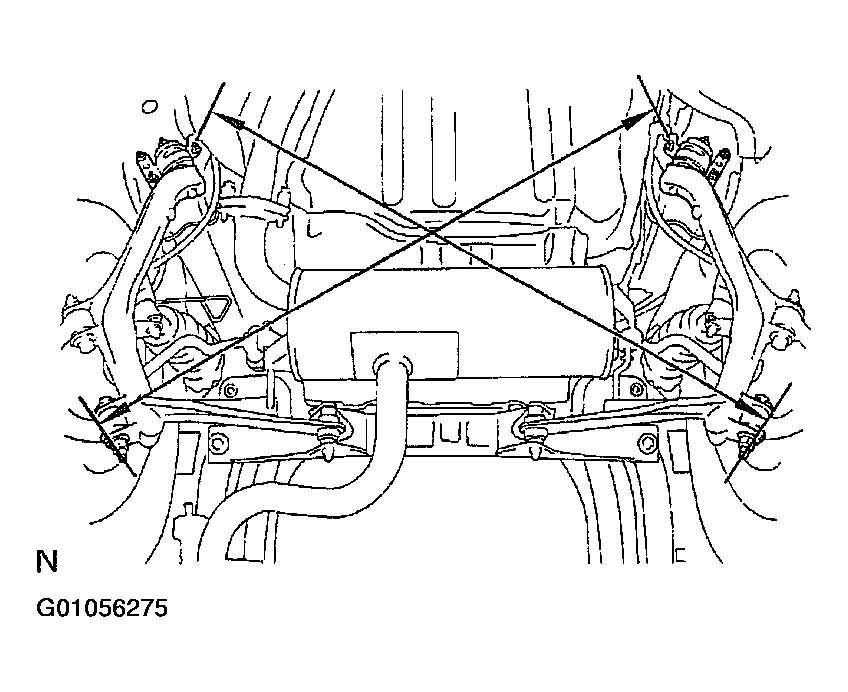

1. Measure the distance from the LH lower suspension arm bracket set bolt to the RH axle carrier rear side set bolt as shown in Fig 4.

  Fig 4: Measuring Distance Between Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Employ the same manner to the RH-LH.
  1. Length difference: 6 mm or less
    If it exceeds the specified value, adjust it by turning the adjusting cams.
3. Loosen the upper and lower arm adjusting cam set nuts.

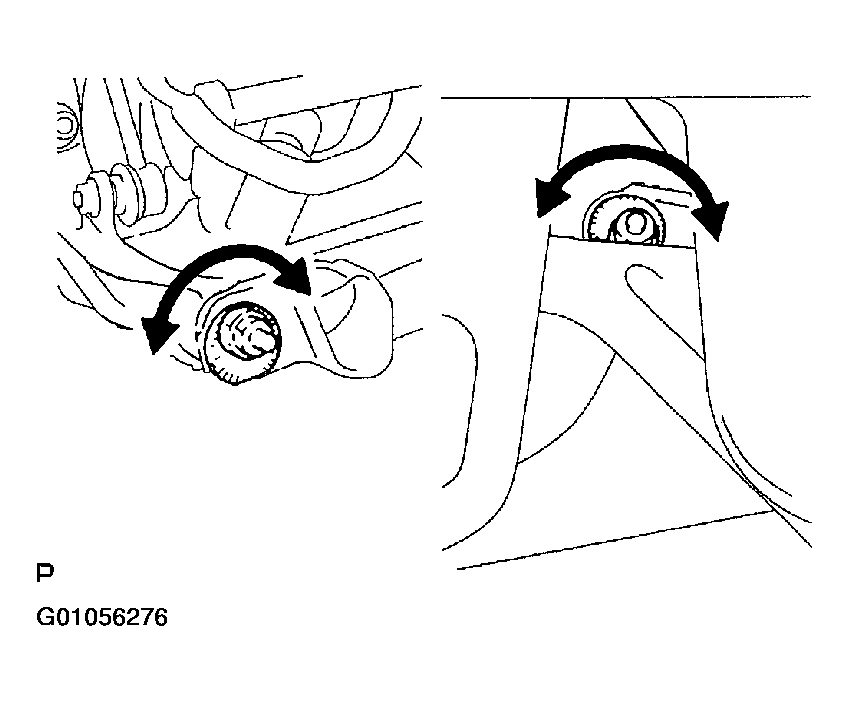

  Fig 5: Loosening Upper & Lower Arm Adjusting Cam Set Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Adjust the camber and toe-in by turning the adjusting cams.
  NOTE: Try to adjust the camber and toe-in to the center of the specified values.
5. Torque the upper and lower arm adjusting cam set nuts.
  1. Torque: 74 N.m (755 kgf.cm, 55 ft.lbf)
How to read adjustment chart (example) .
1. Measure the present alignment.
  1. Example:
    Camber (RH): -0+/-26' (-0.43°)

    Camber (LH): -1+/-56' (-1.93°)

    Toe-in (total): IN 7 mm (0.28 in.)

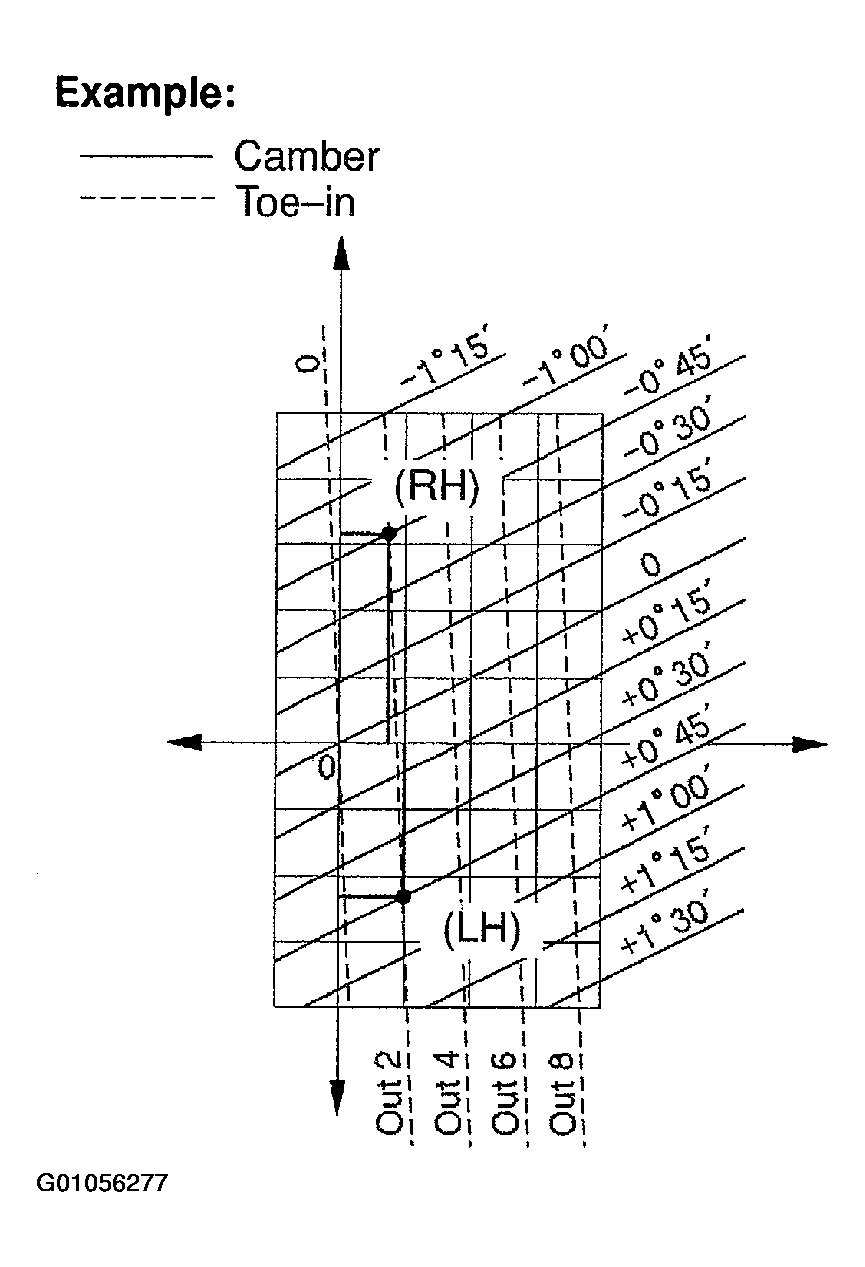

    Fig 6: Displaying Example Of Adjustment Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Mark the difference between the standard value (A) and the measured value (B) on the adjustment chart in Fig 6.
  1. Standard value:
    Camber:-1°11'(-1.18°)

    Toe-in (total): IN 3mm (0.12 in.)

    Formula: A-B = C

    Camber (RH): -1°11'- (-0°26')= -0°45'

    Camber (LH): -1°11' -(-1°56')= 0°45'

    Toe-in (total): IN3 - IN7 = OUT 4

    Toe-in (each side): OUT 2
3. As shown in the example chart in Fig 6, read the distance from the marked point to the origin of the chart, and adjust the upper and/or lower arm adjusting cams accordingly.
  1. Amount to turn adjusting cams (by graduation):
    Upper arm cam (RH): + (Inward) 3.2

    Lower arm cam (RH): + (Inward) 0.8

    Upper arm cam (LH): - (Outward) 2.3

    Lower arm cam (LH): + (Inward) 1.0

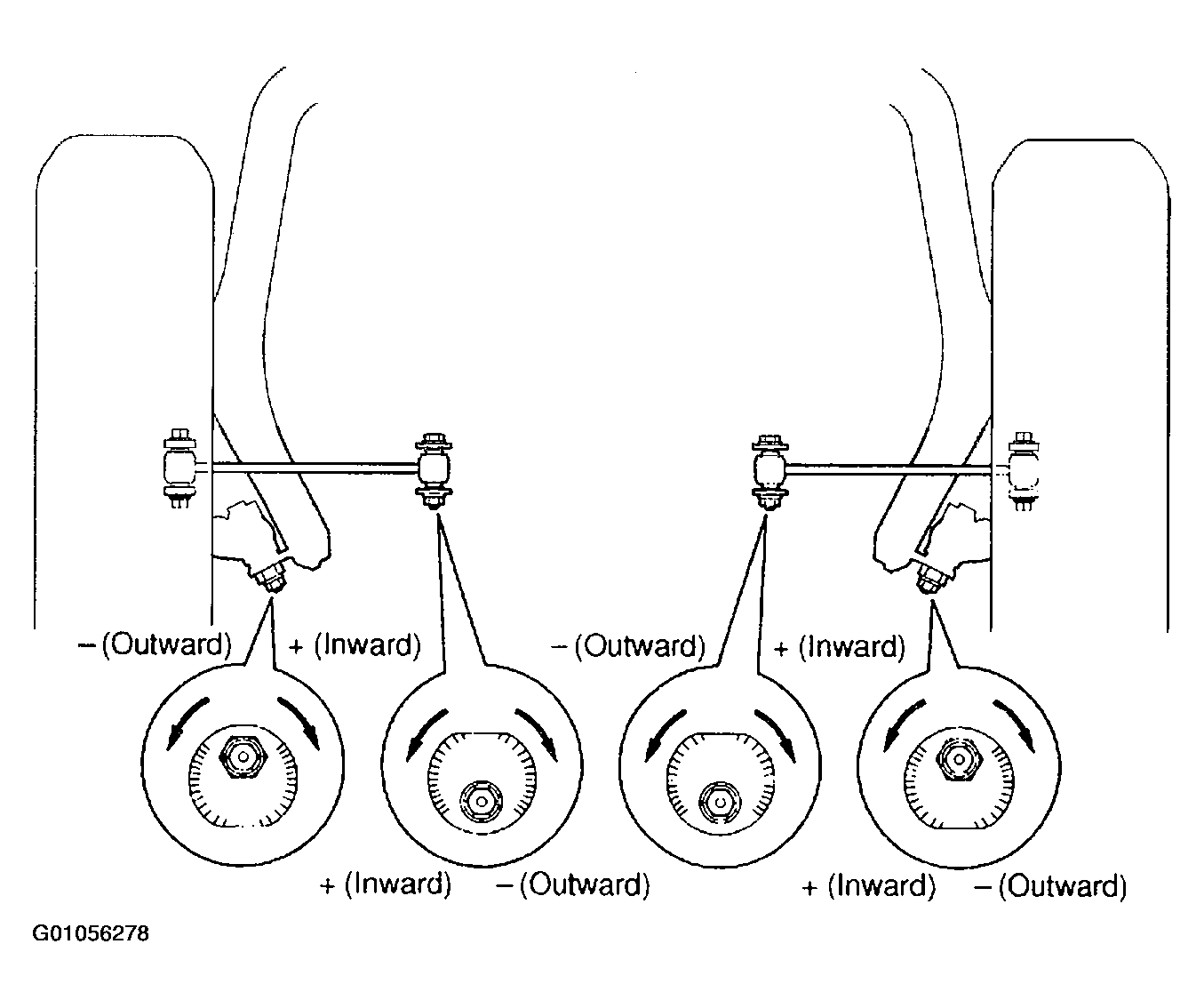

  Fig 7: Identifying Upper And/Or Lower Arm Adjusting Cams
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

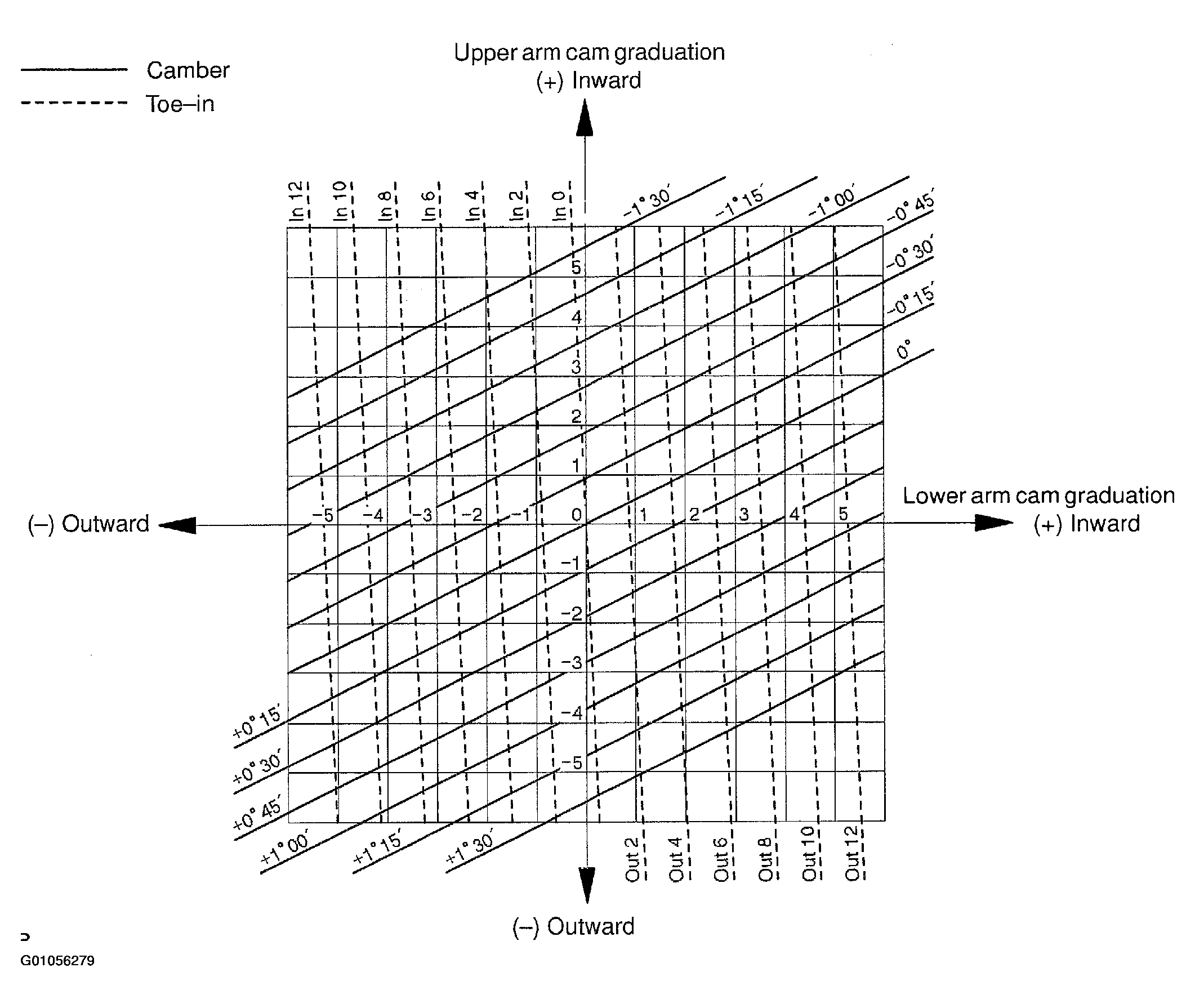

  Fig 8: Displaying Adjustment Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
