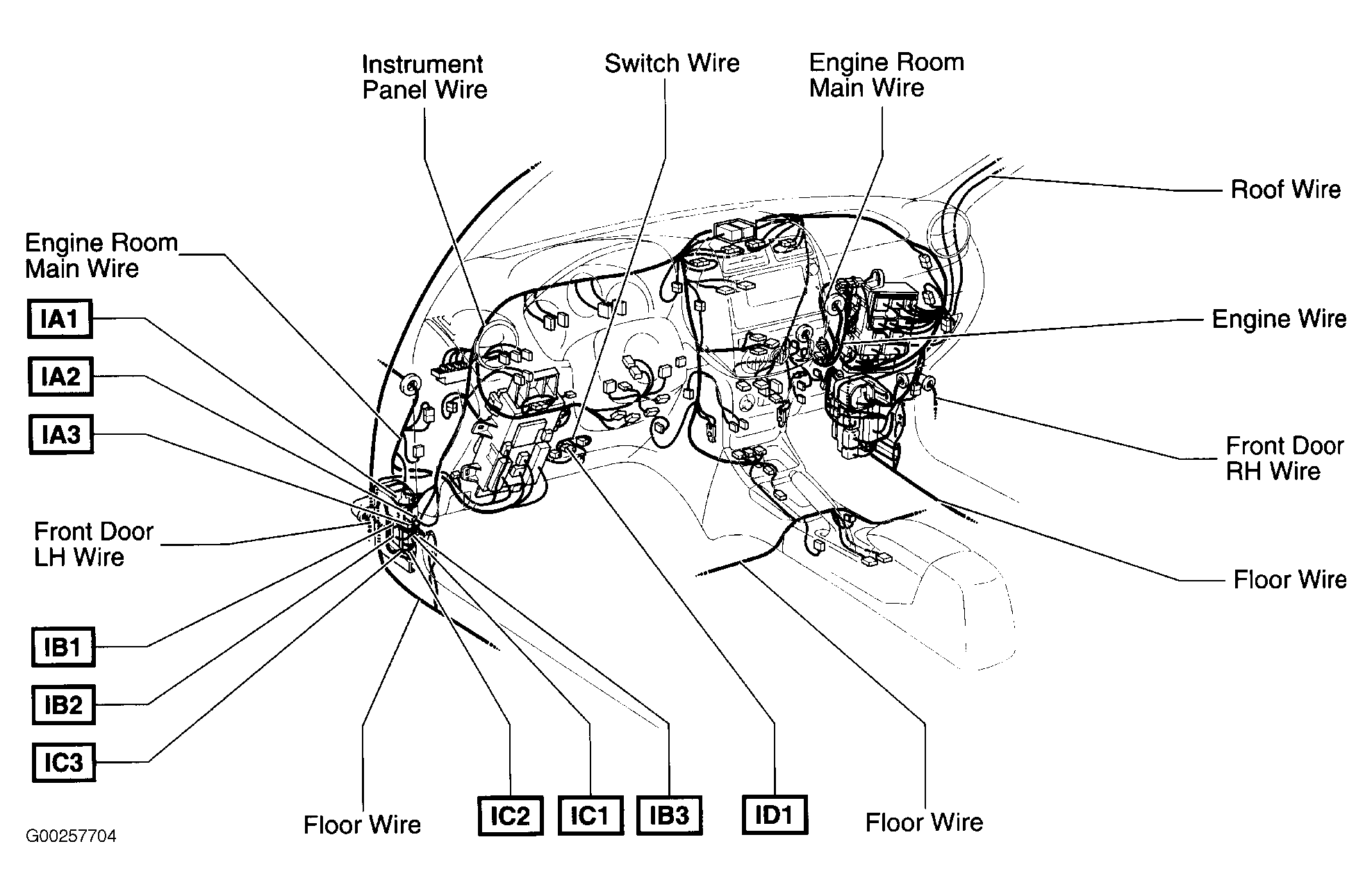

Component Location Graphics
WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

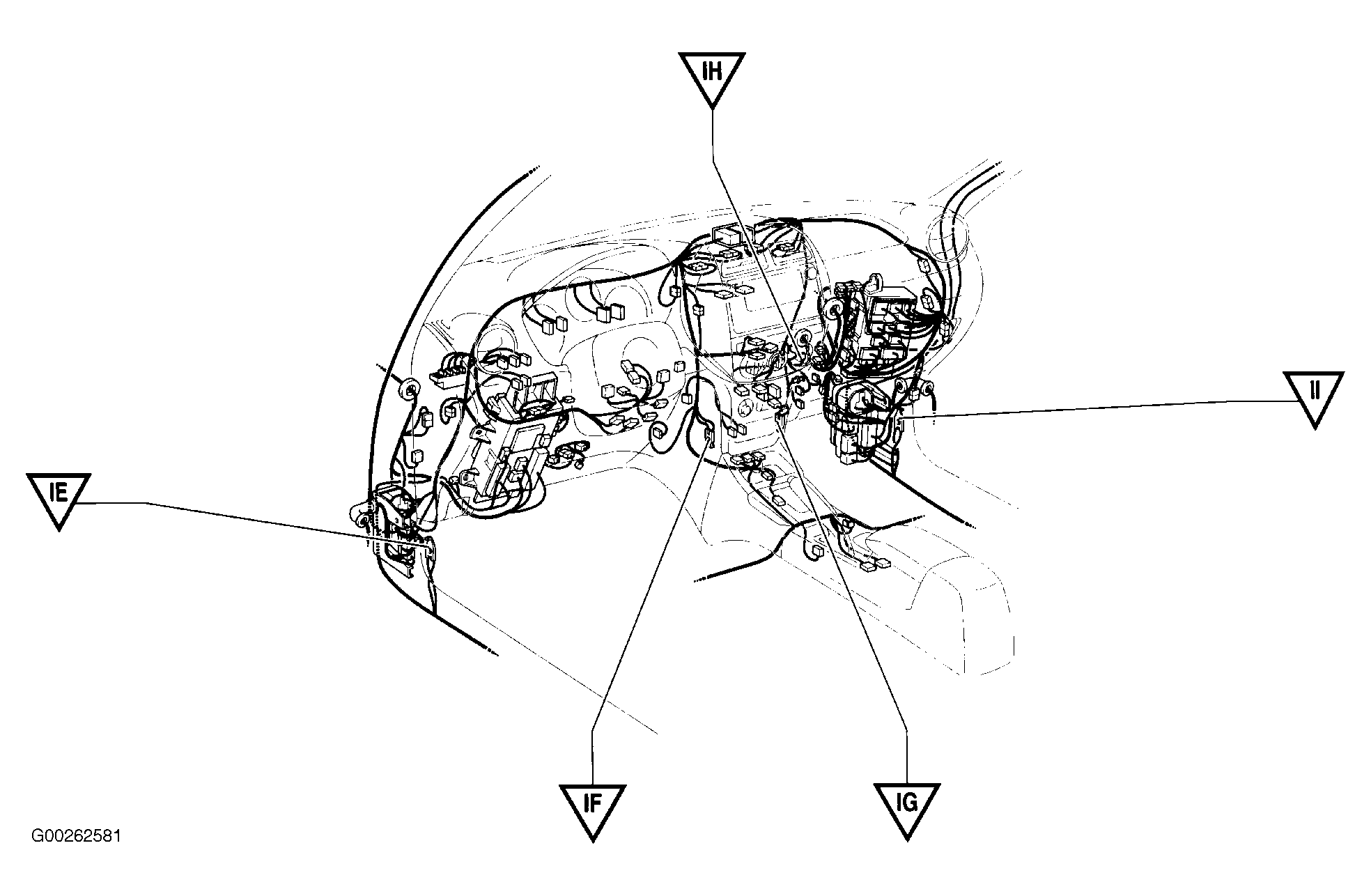

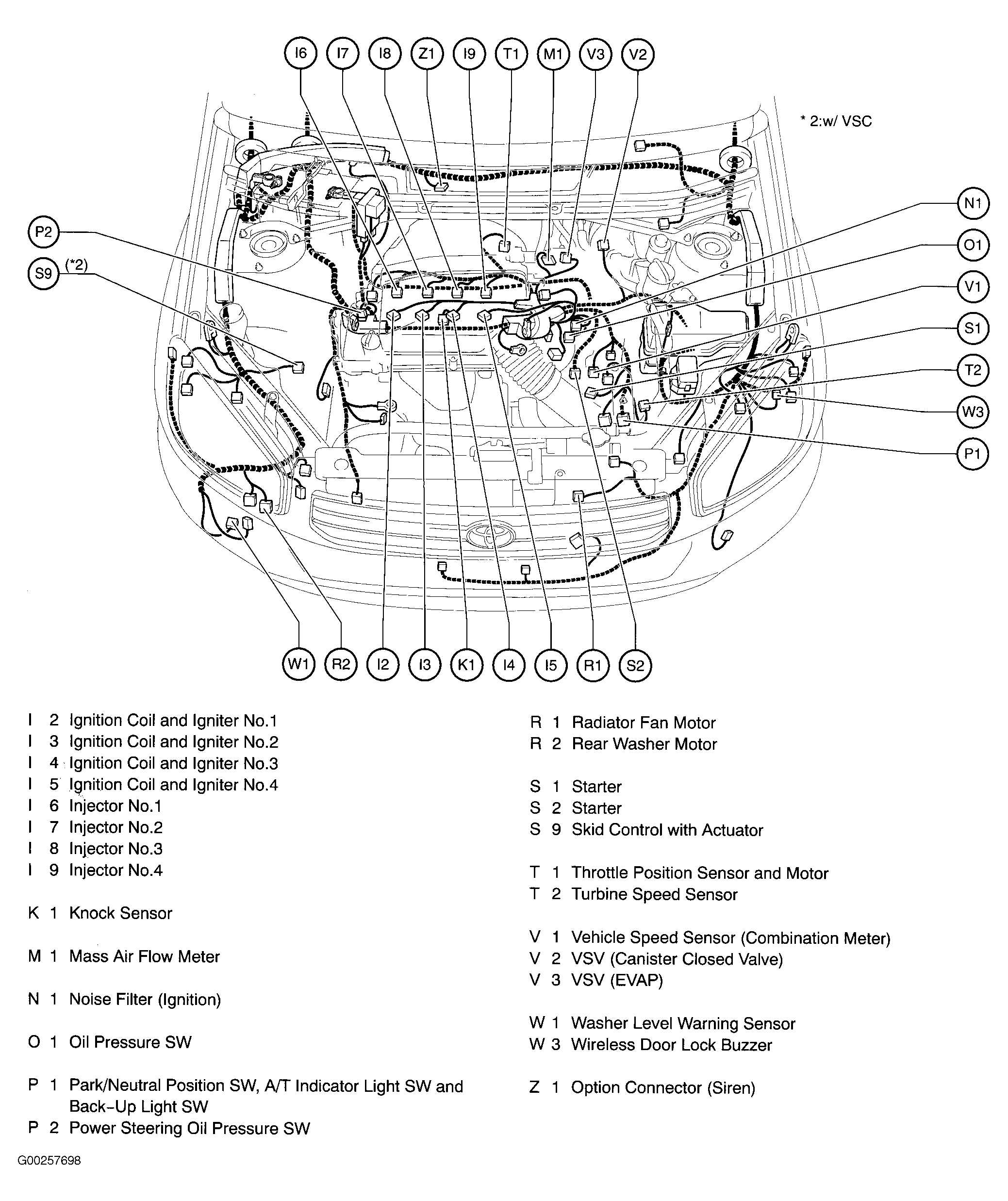

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

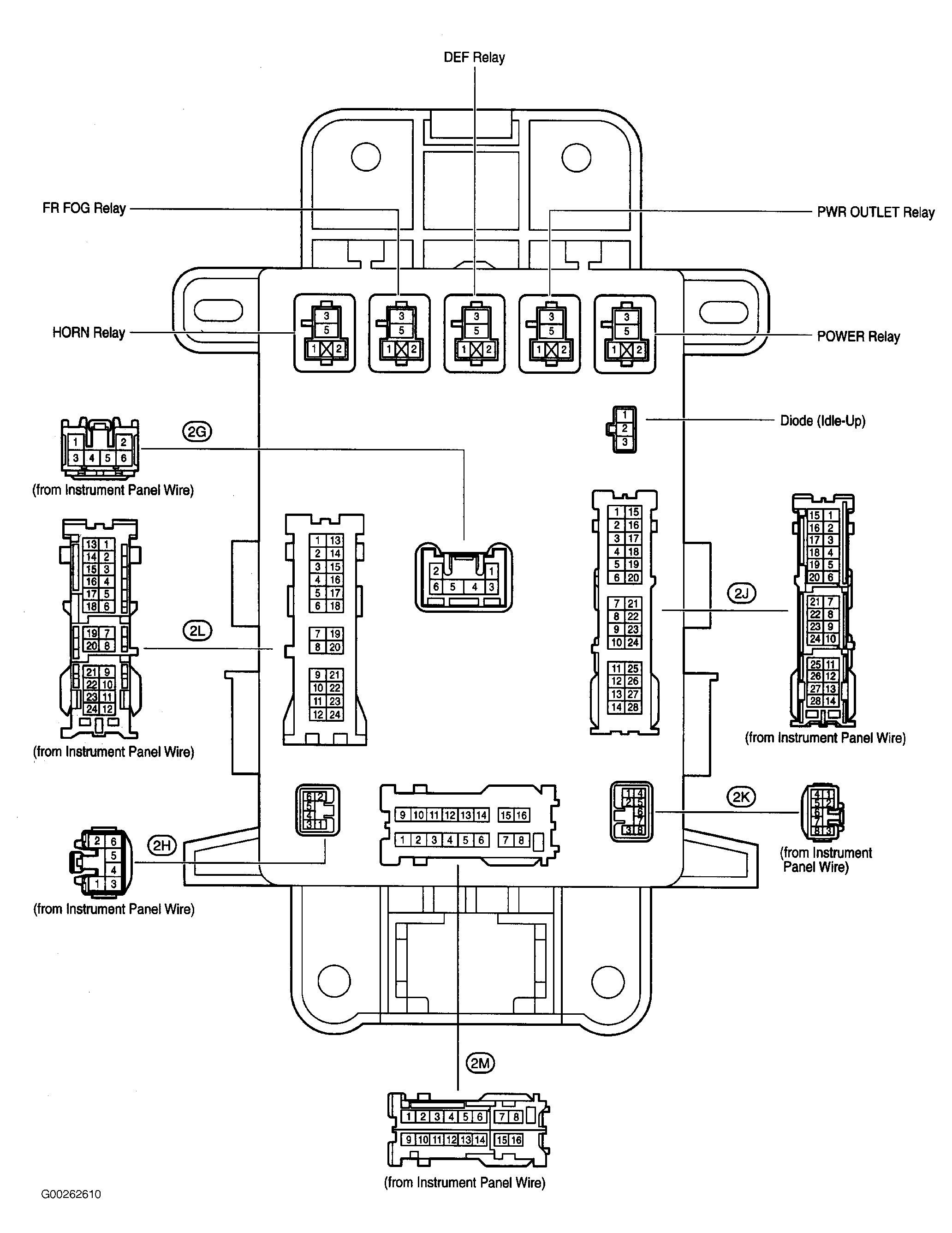

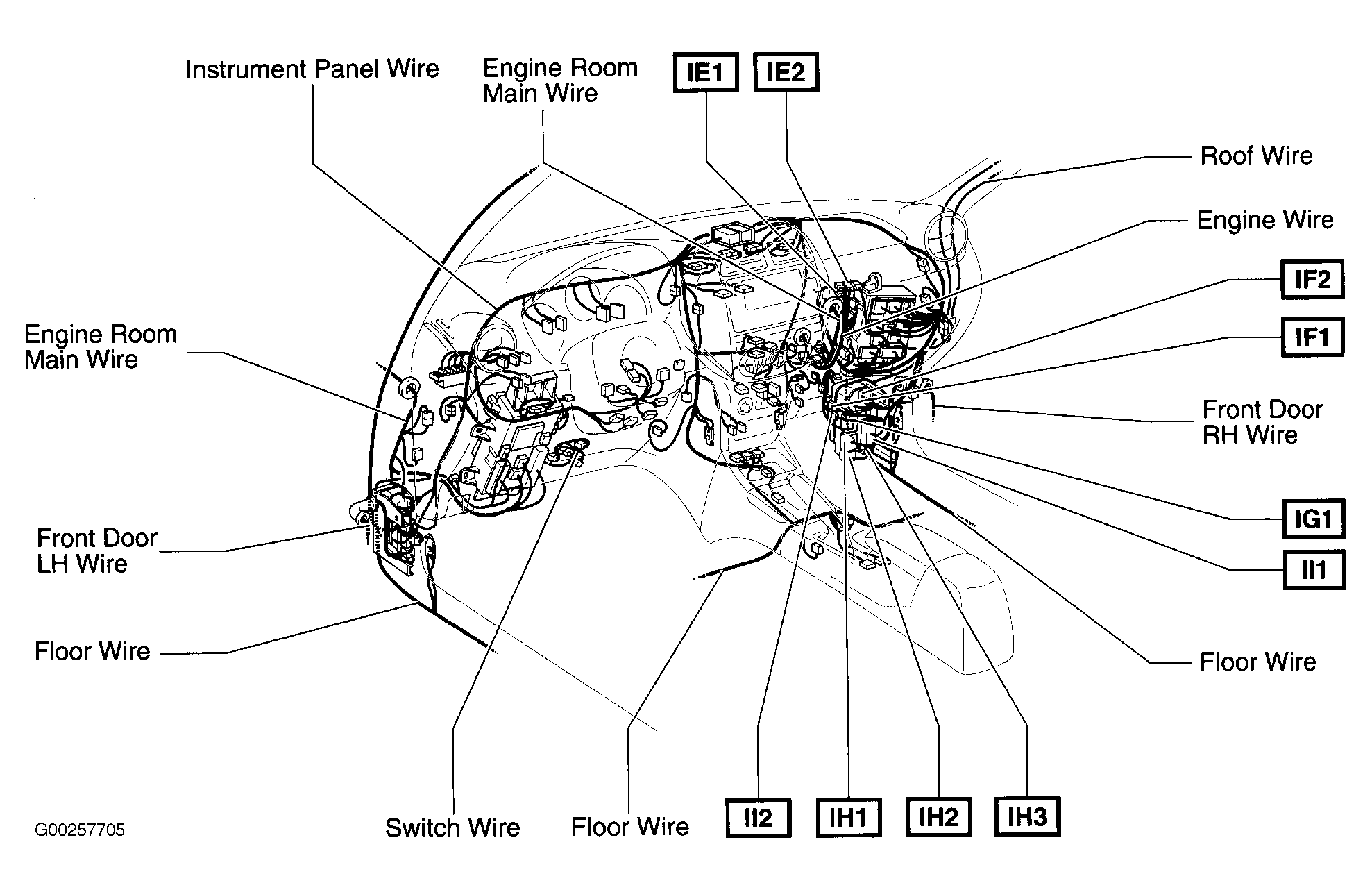

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

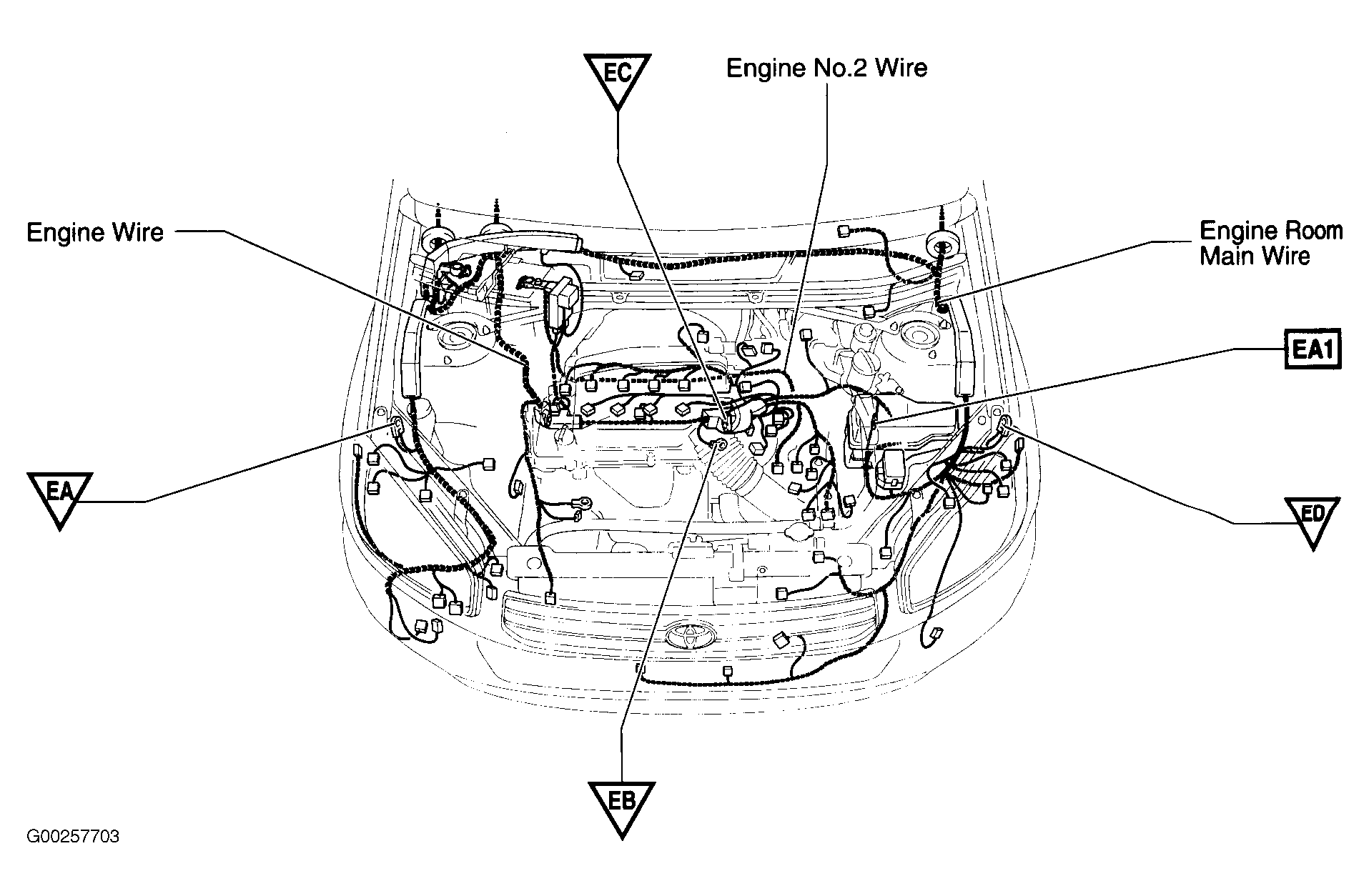

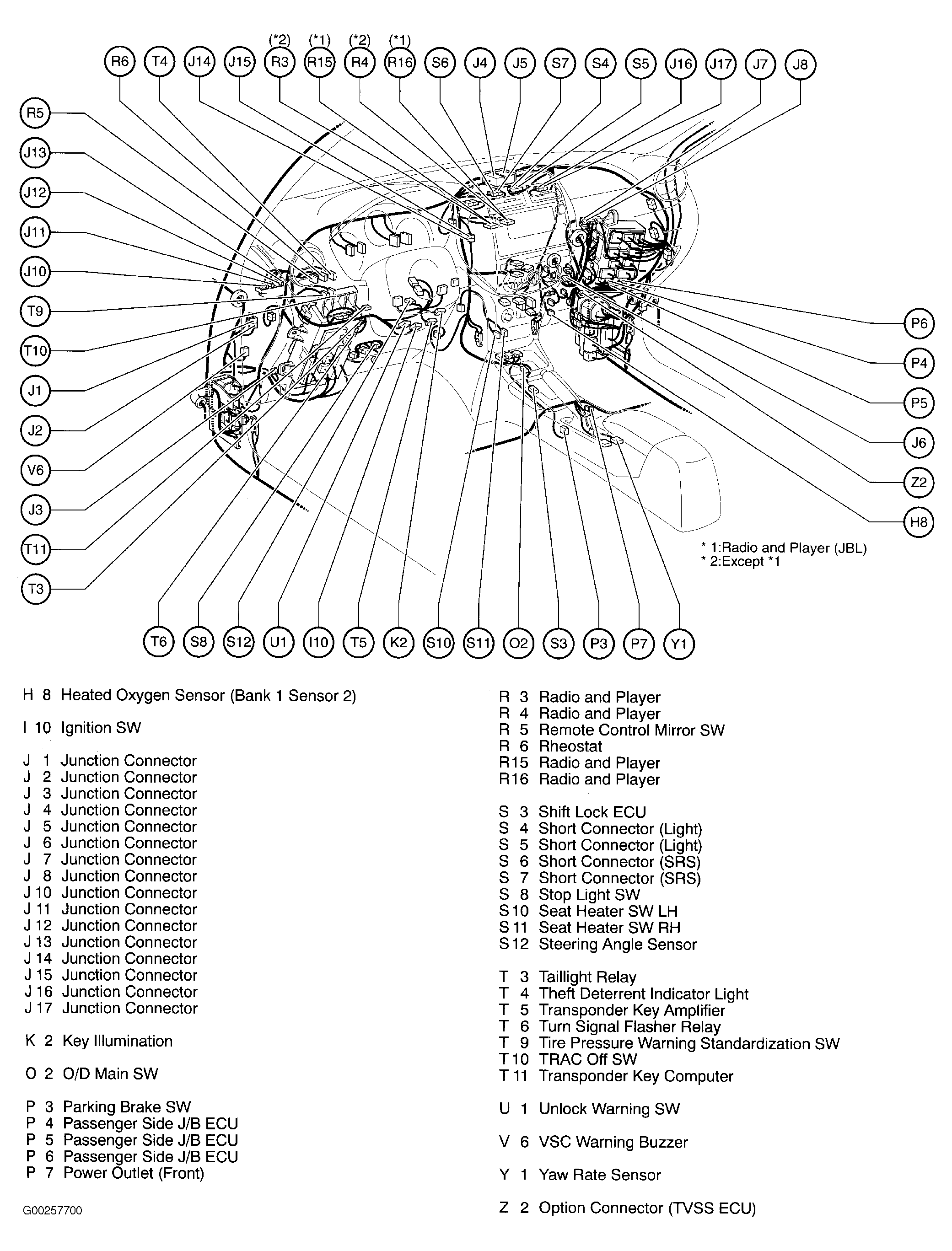

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

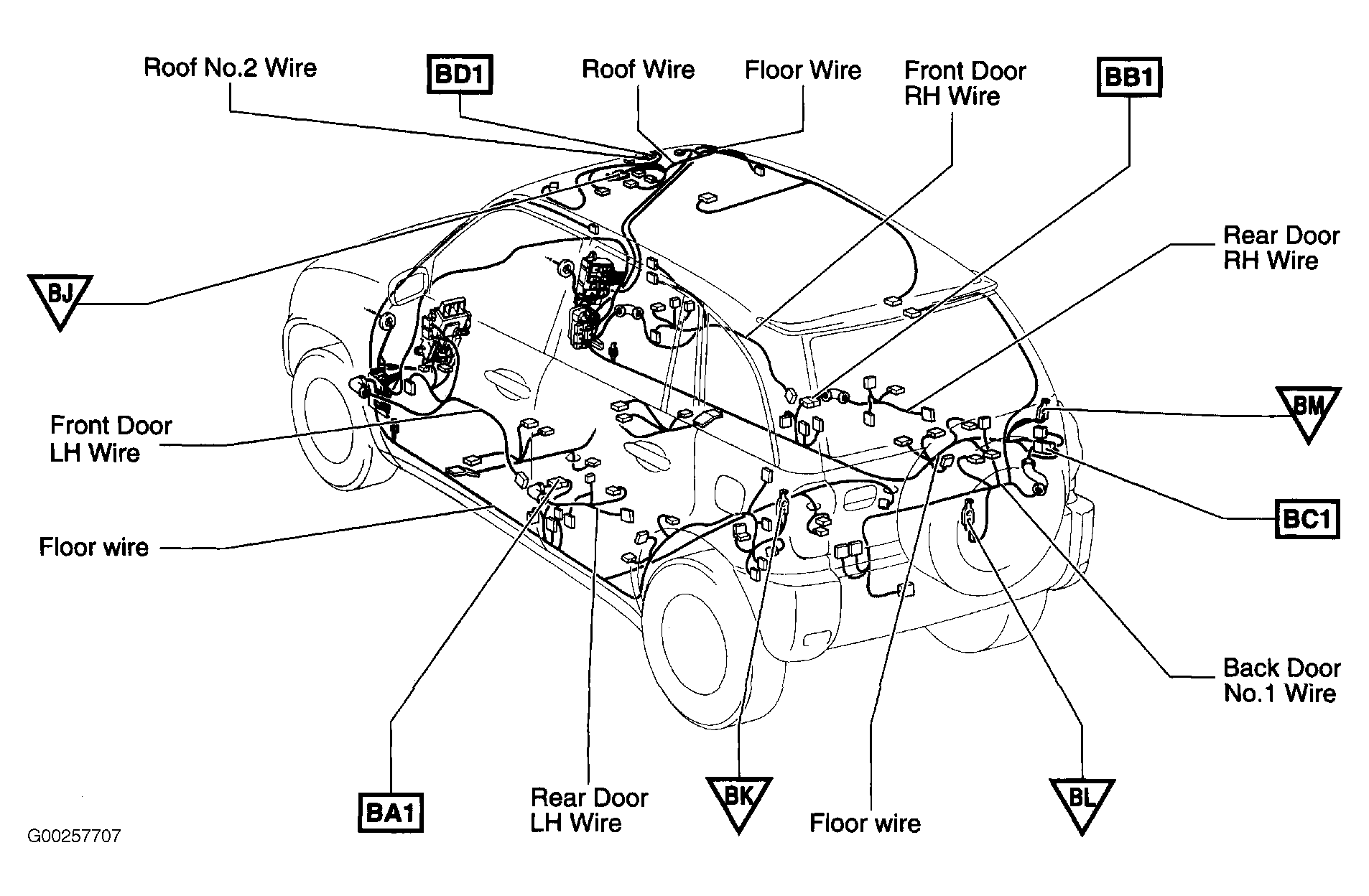

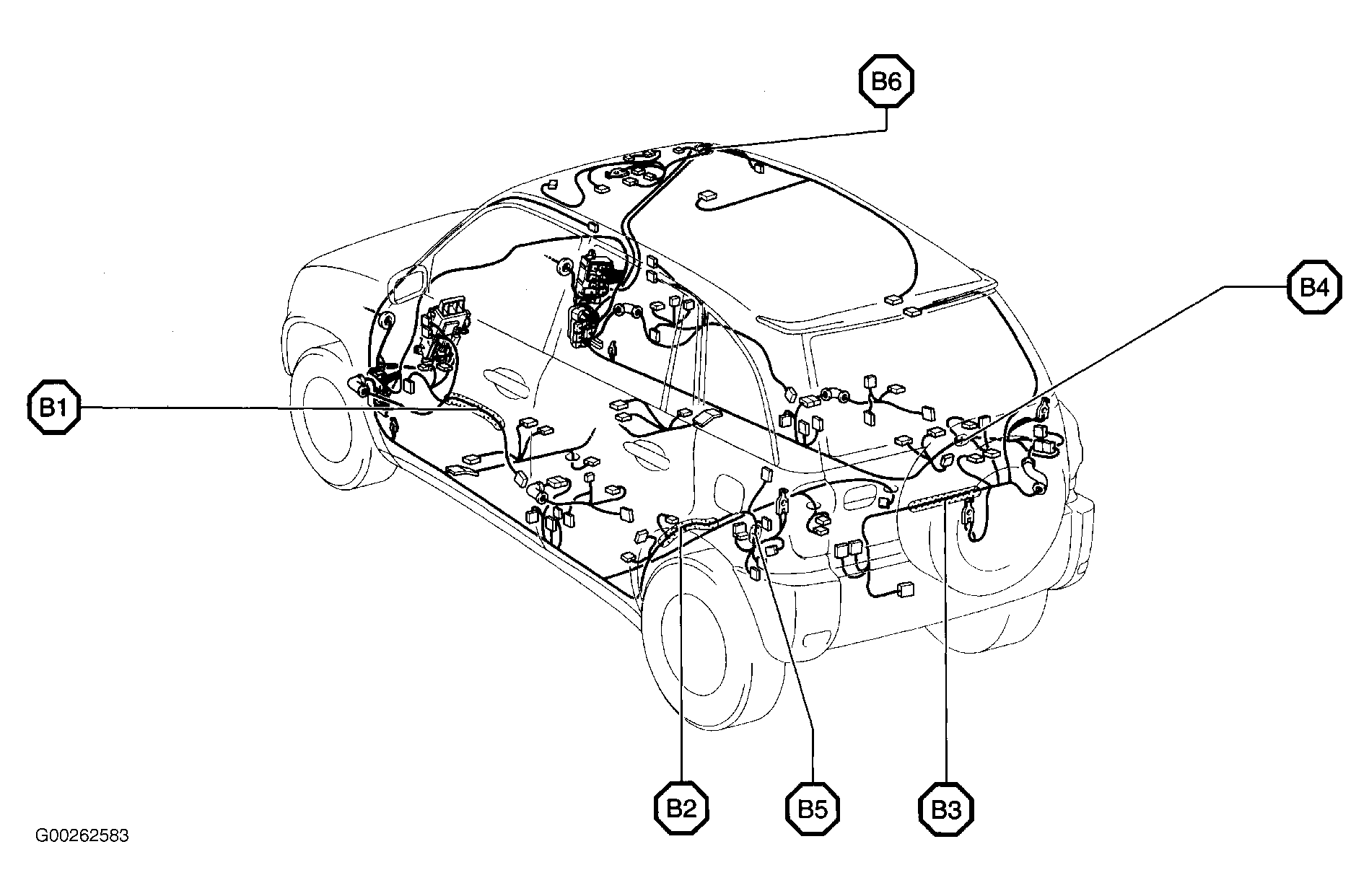

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

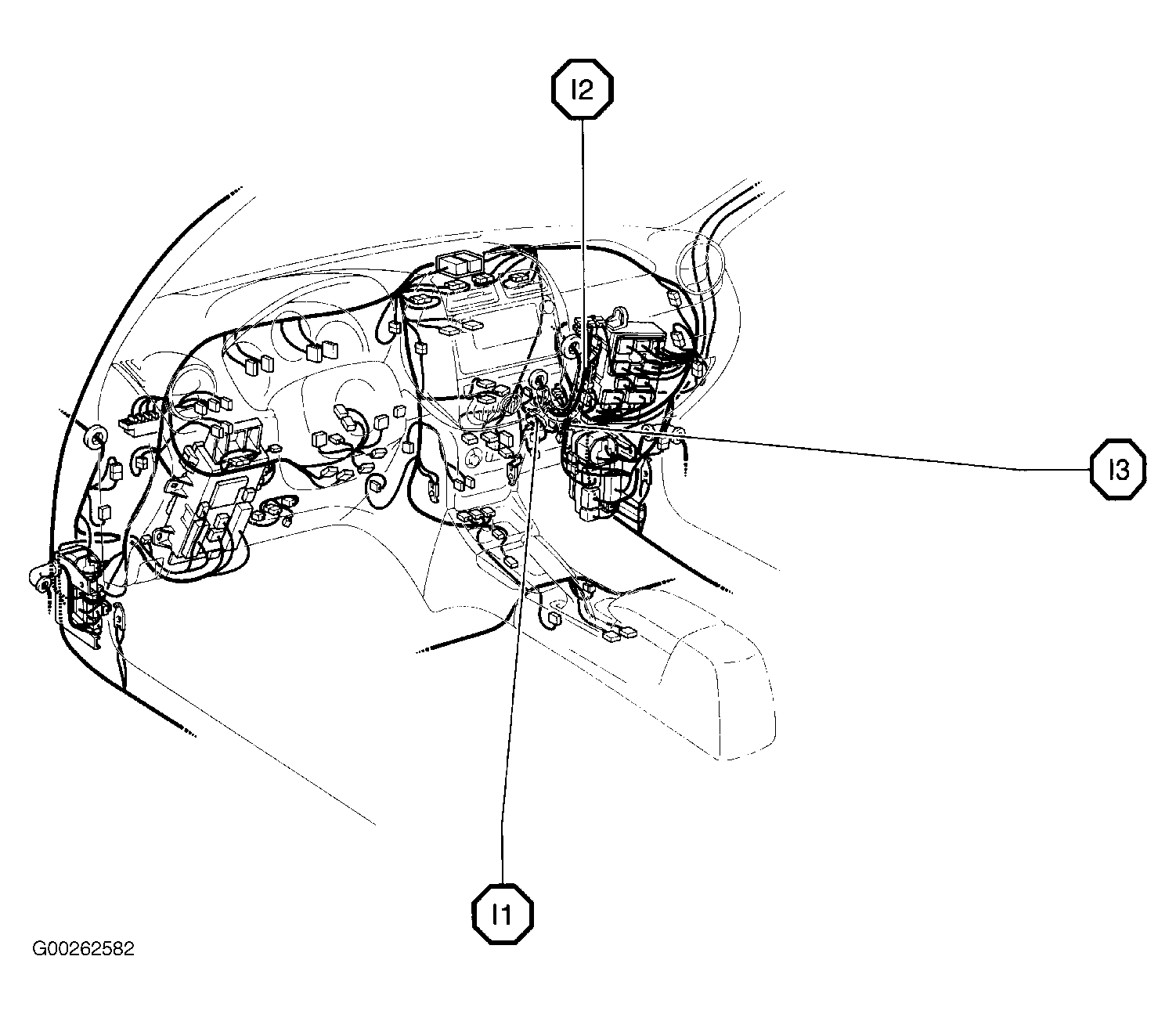

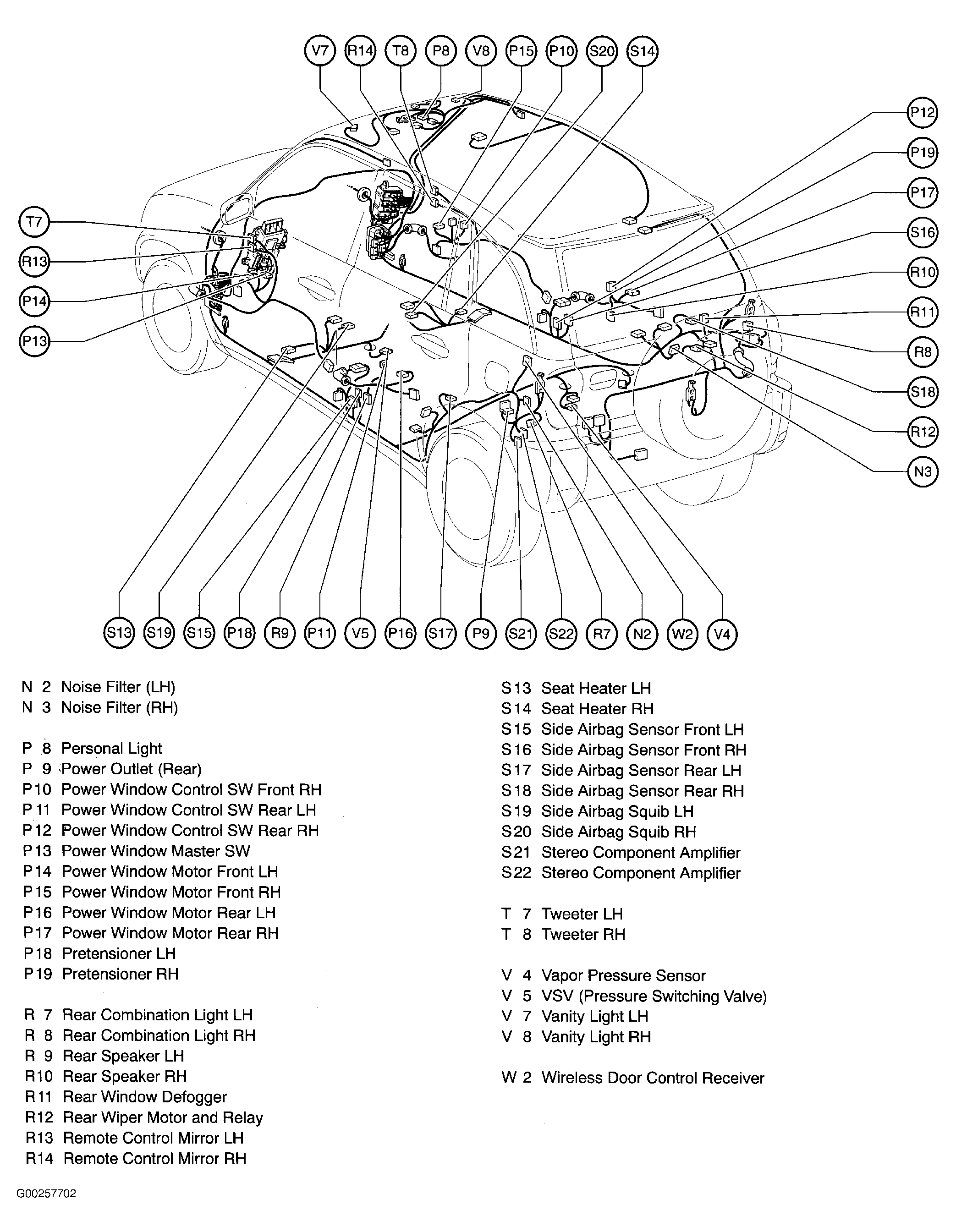

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

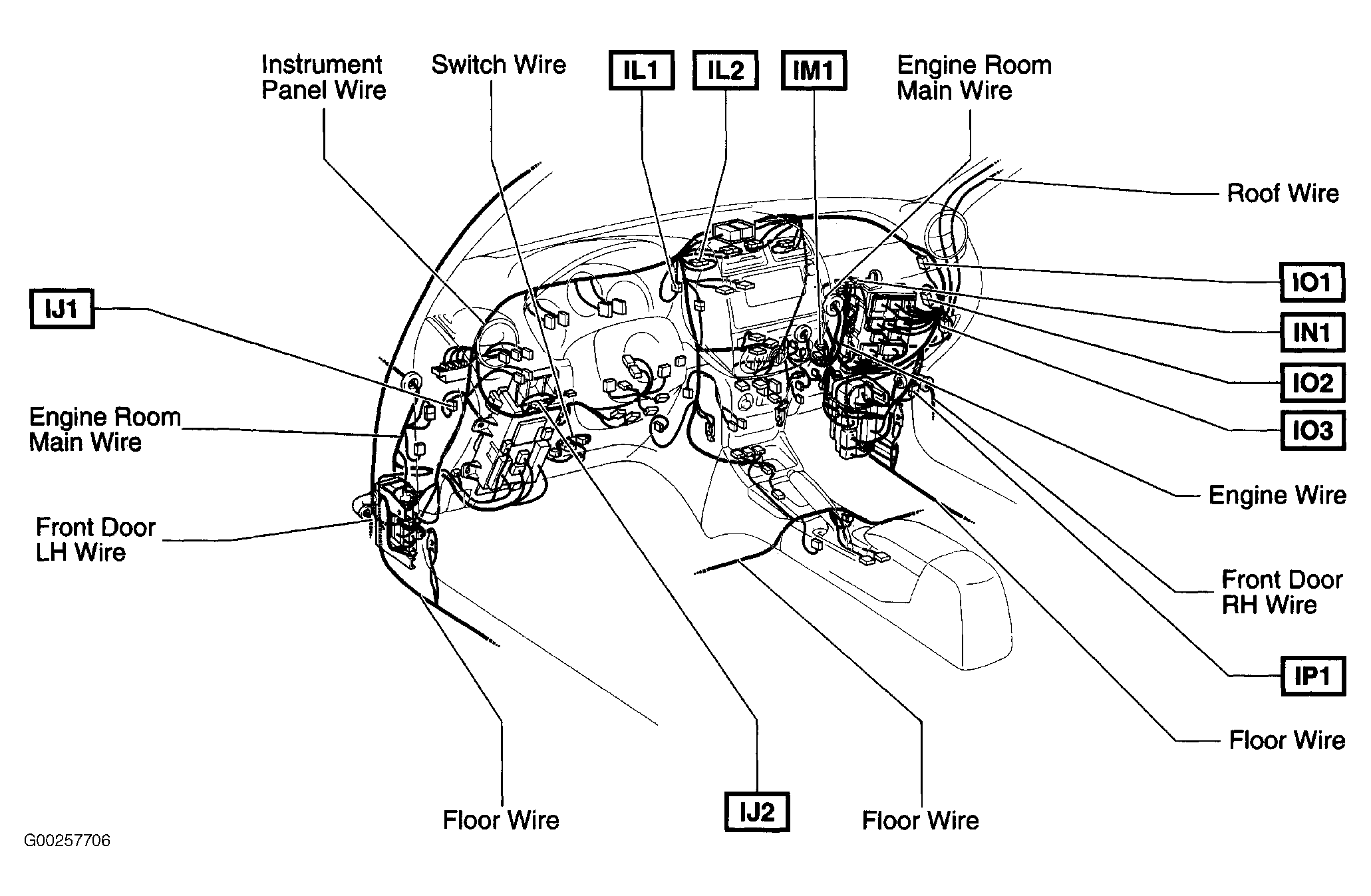

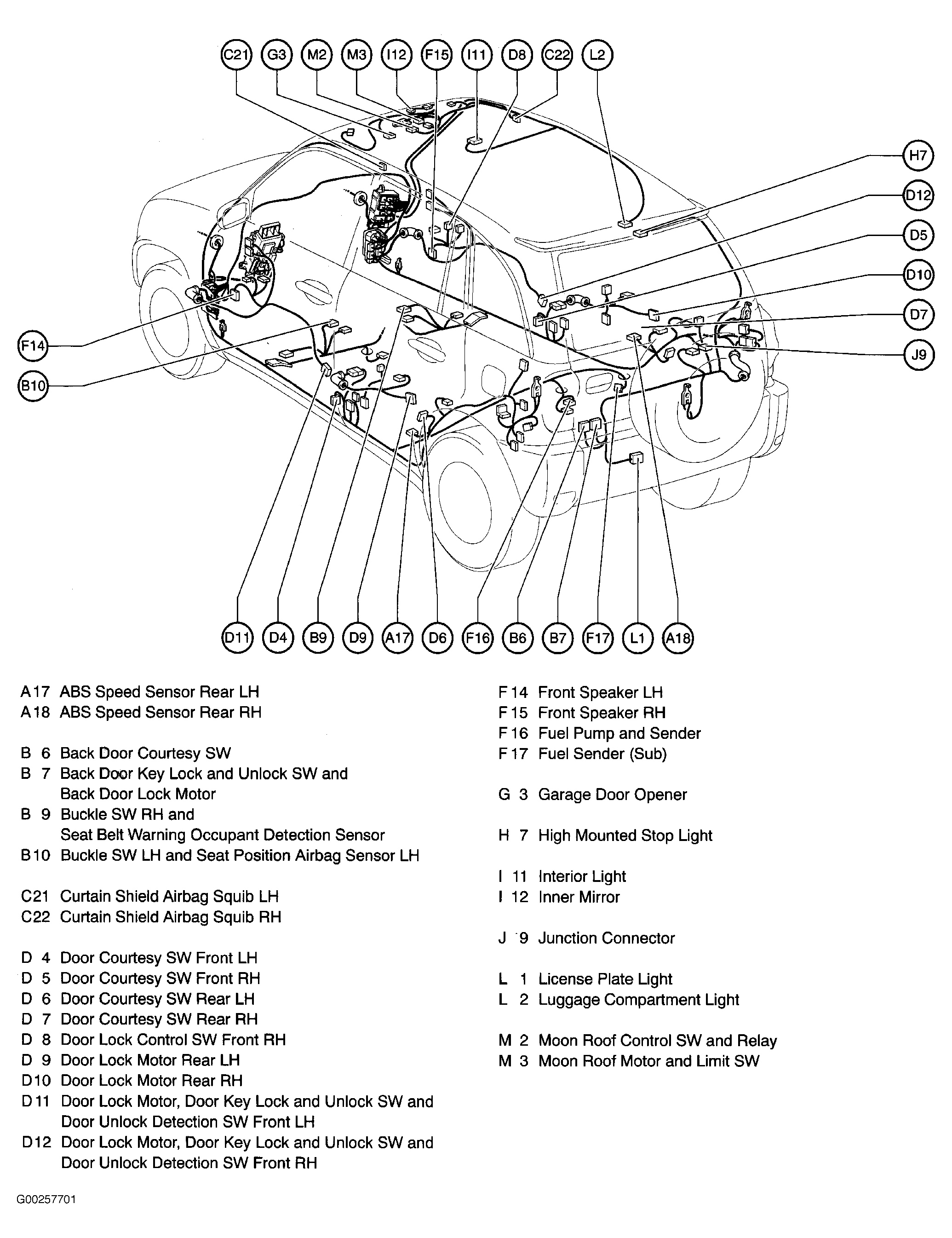

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

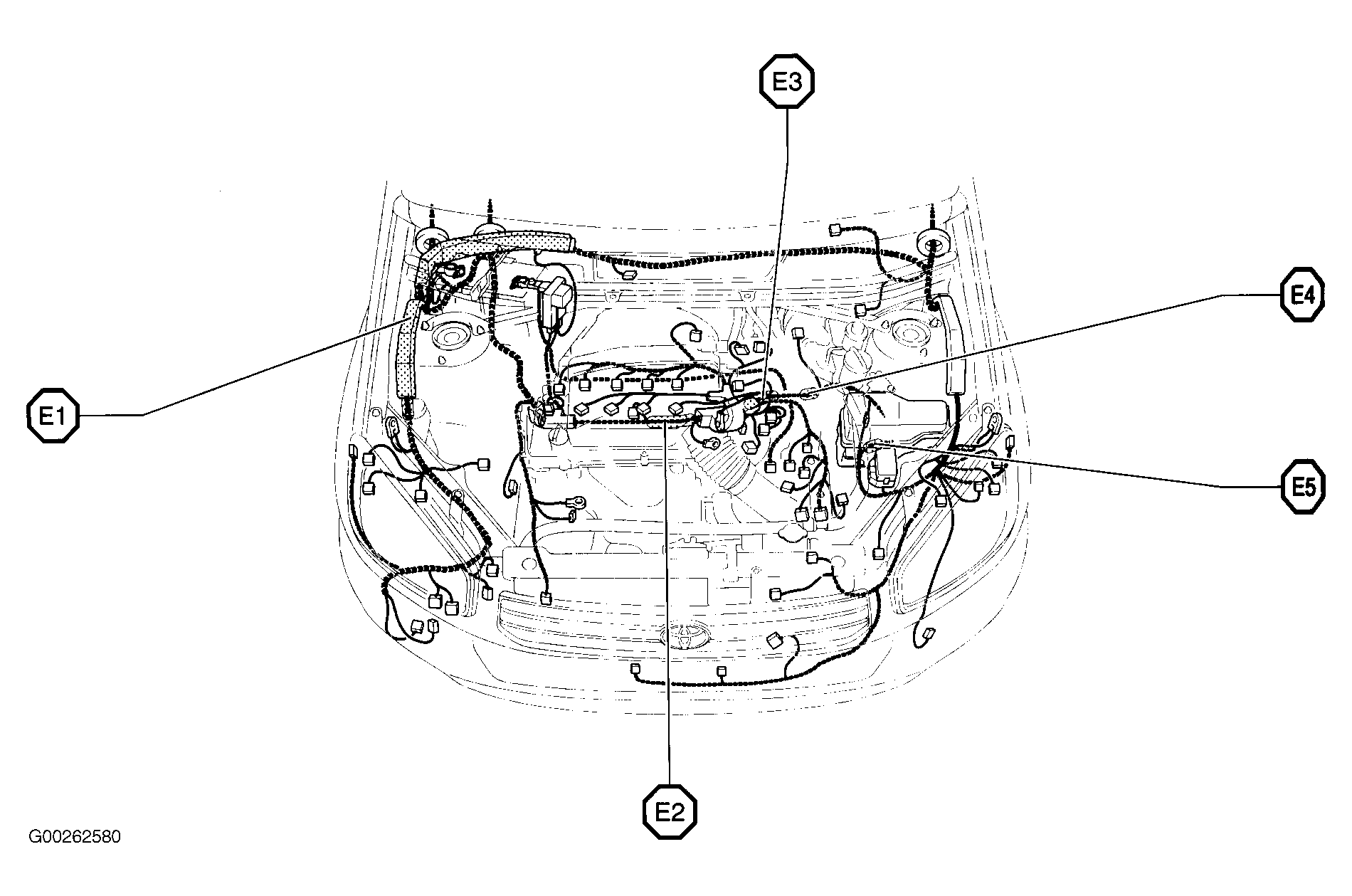

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

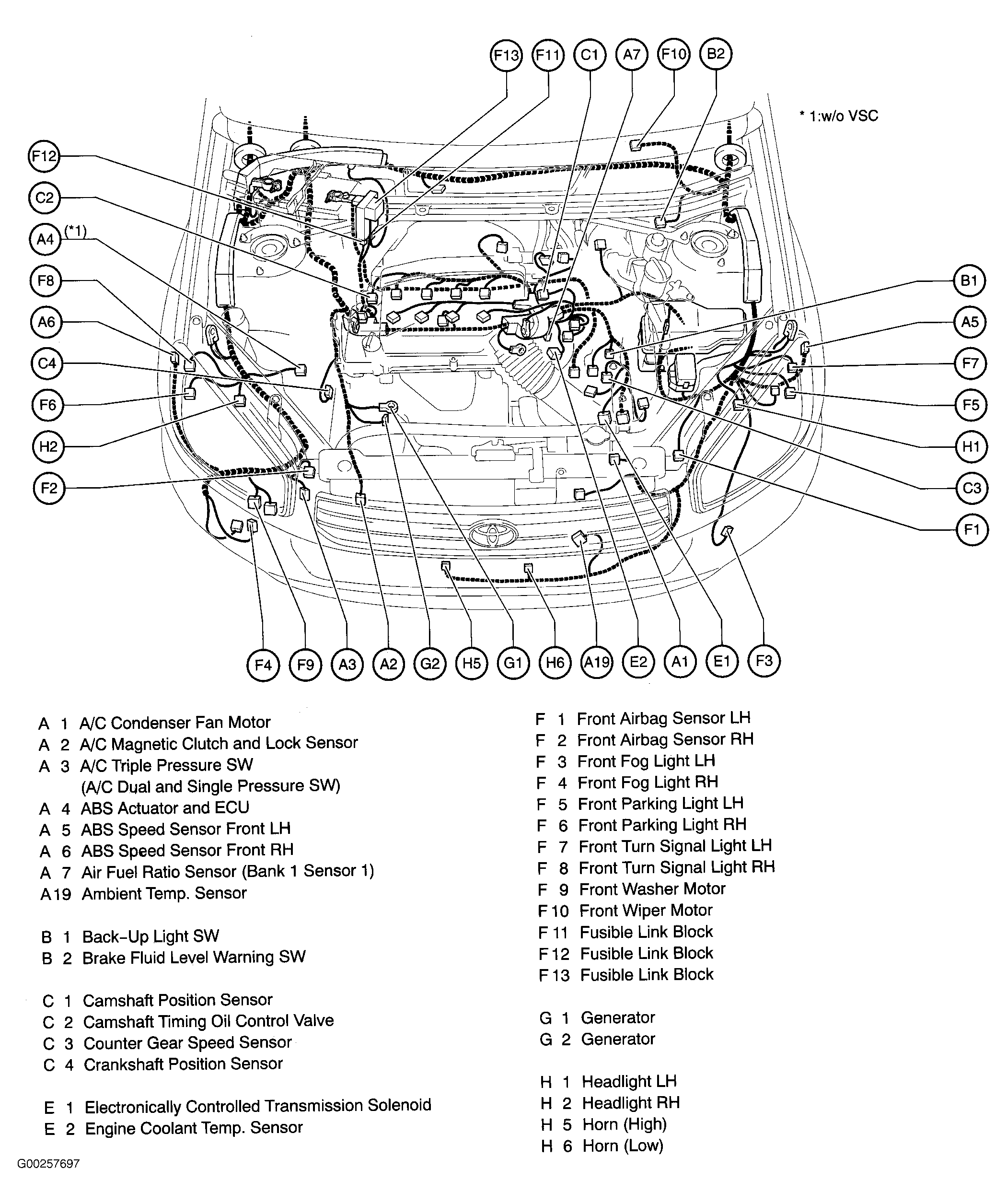

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 VEHICLE OVERVIEW RELAY IDENTIFICATION
| RELAY DESCRIPTION |
| Moon Roof Control SW and Relay |
| Rear Wiper Motor and Relay |

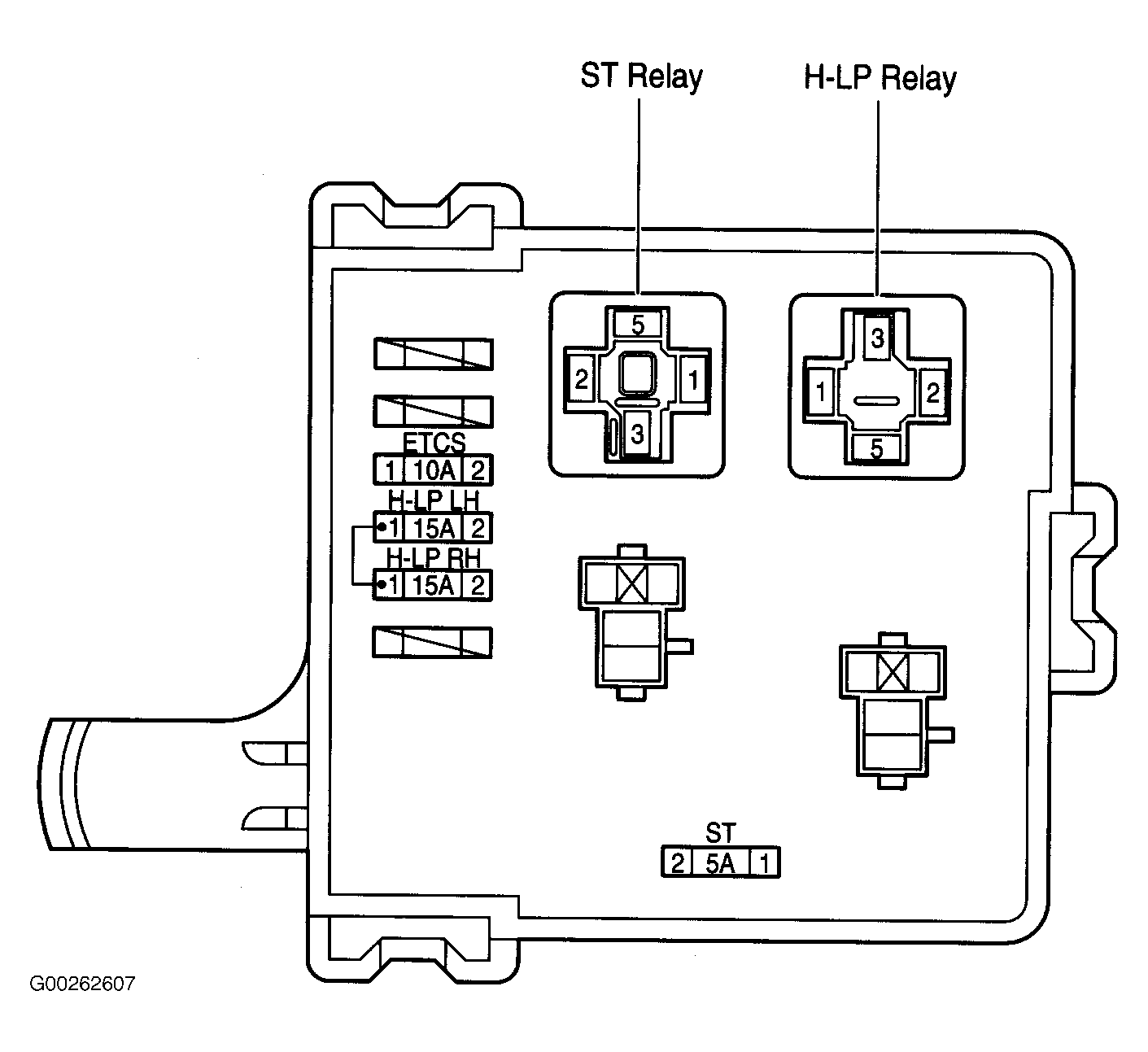

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 ENGINE ROOM RELAY BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
| ST Relay |
| H-LP Relay |

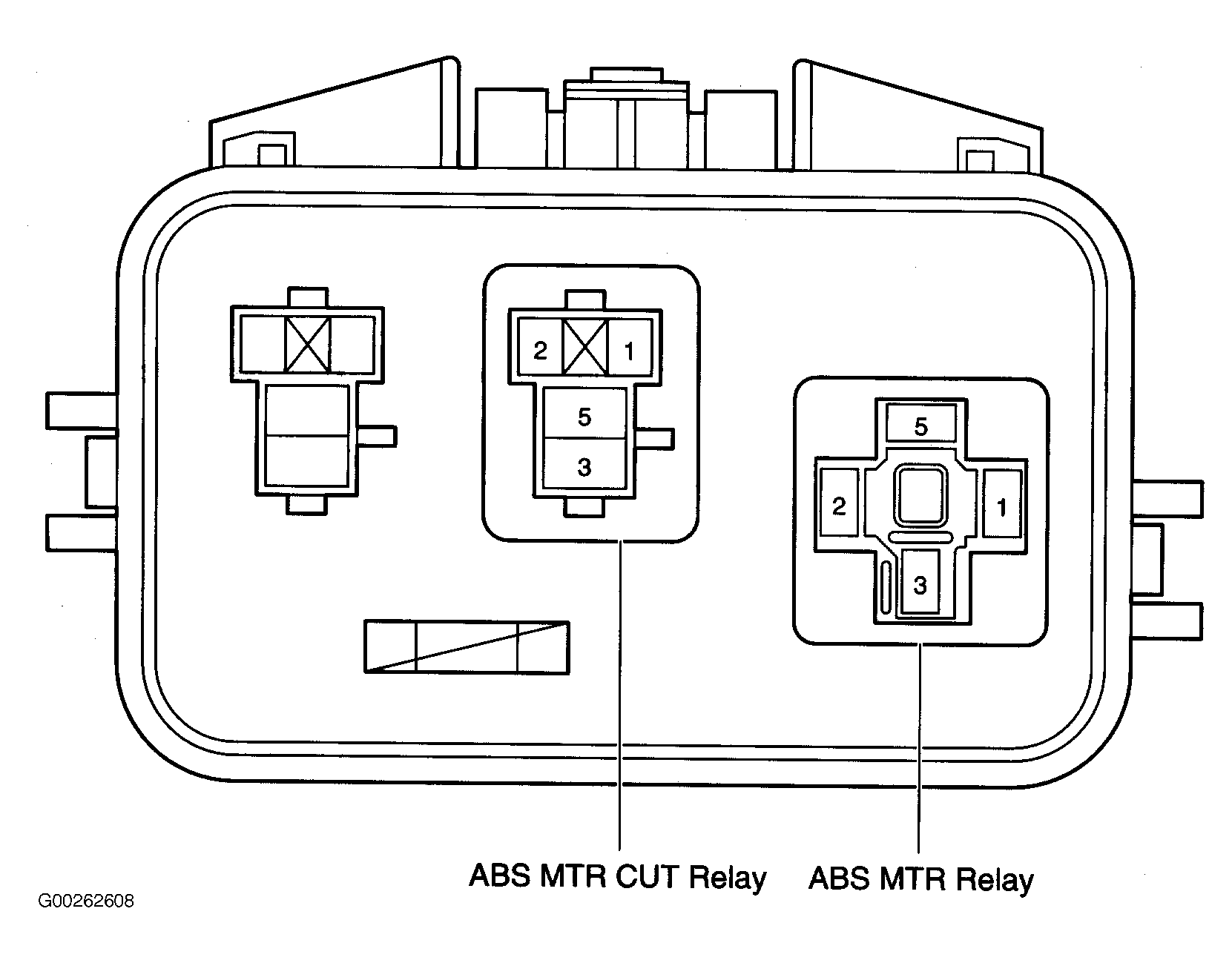

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 ABS RELAY BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
| ABS MTR Relay |
| ABS MTR CUT Relay |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 ENGINE ROOM JUNCTION BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
| IG2 Relay |
| Fan No.3 Relay |
| EFI Main Relay |
| Fan No.2 Relay |
| HTR Relay |
| C/OPN or EDU Relay |
| Fan No.1 Relay |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
