Terminals Of Ecu

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

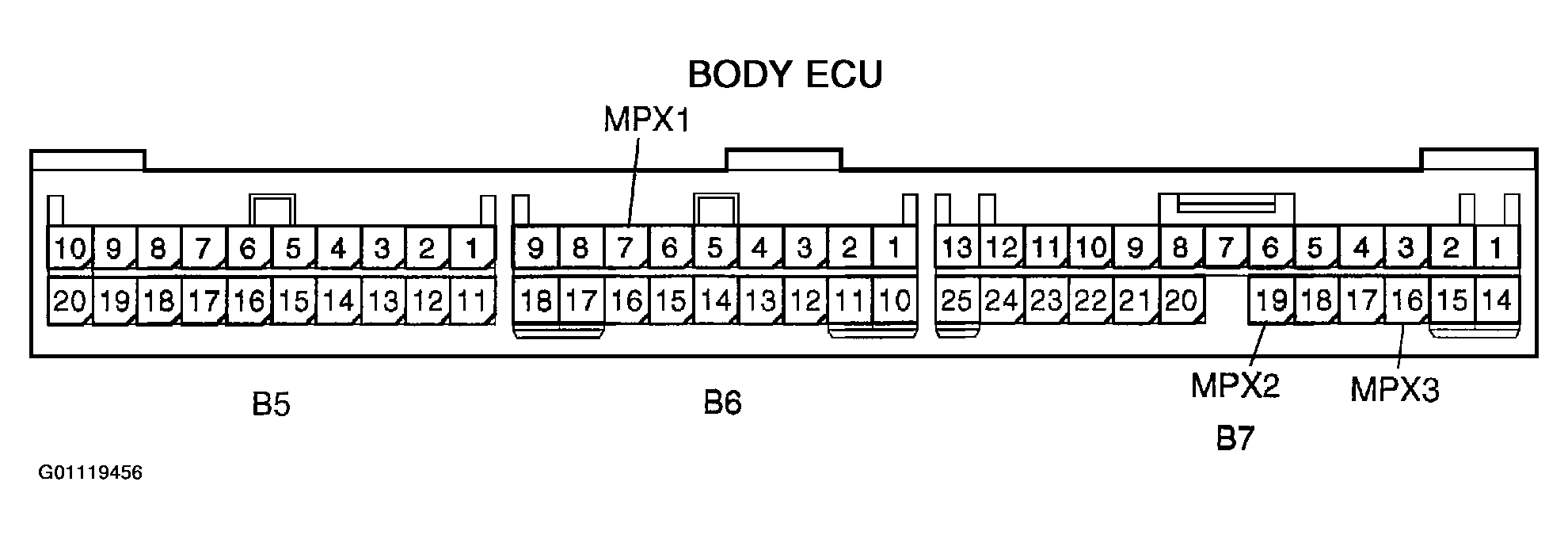

Fig 1: Identifying Body ECU Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Driver Door ECU Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

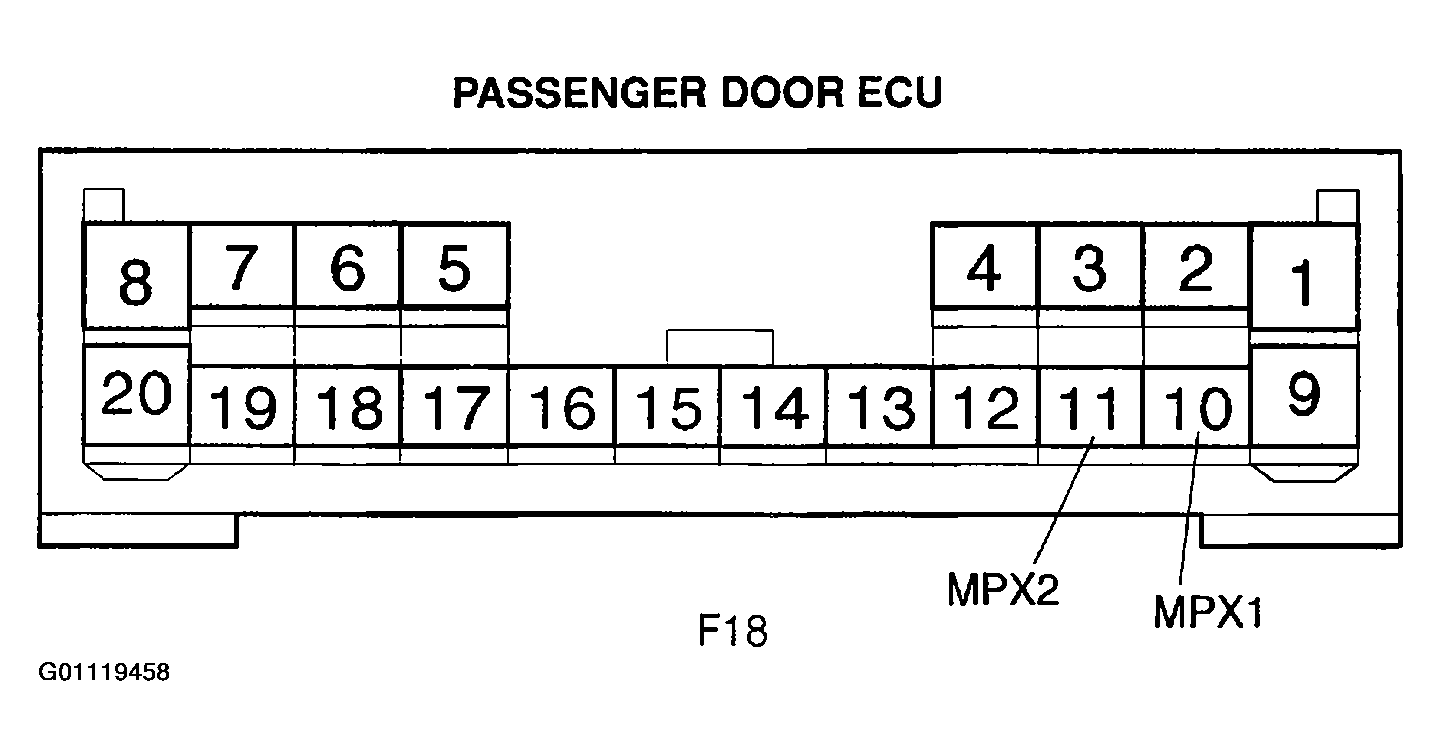

Fig 3: Identifying Passenger Door ECU Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

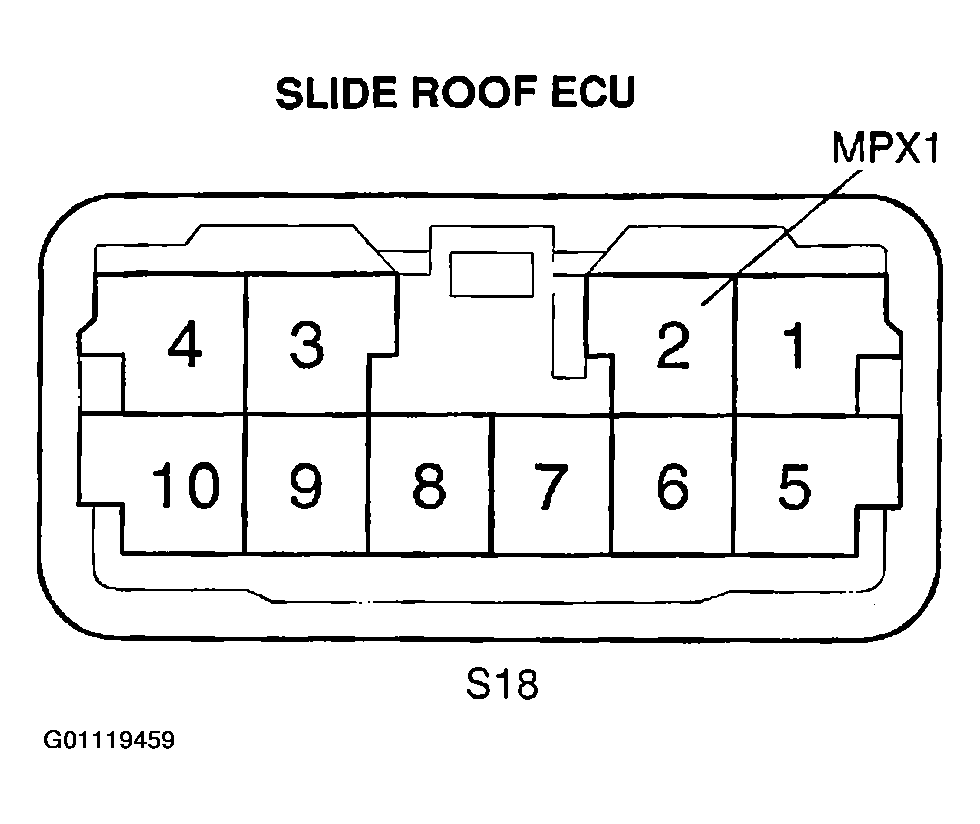

Fig 4: Identifying Sliding Roof ECU Terminals

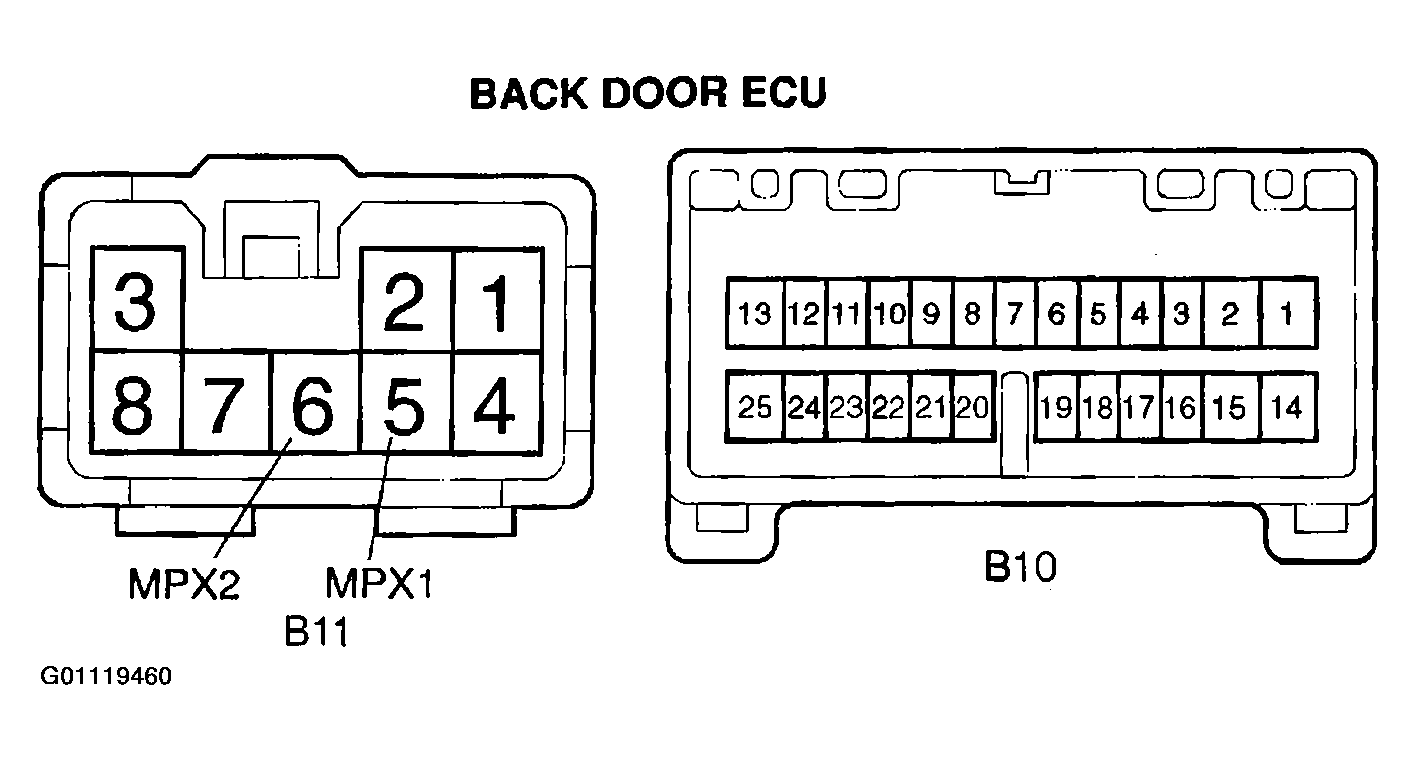

Fig 5: Identifying Back Door ECU Terminals

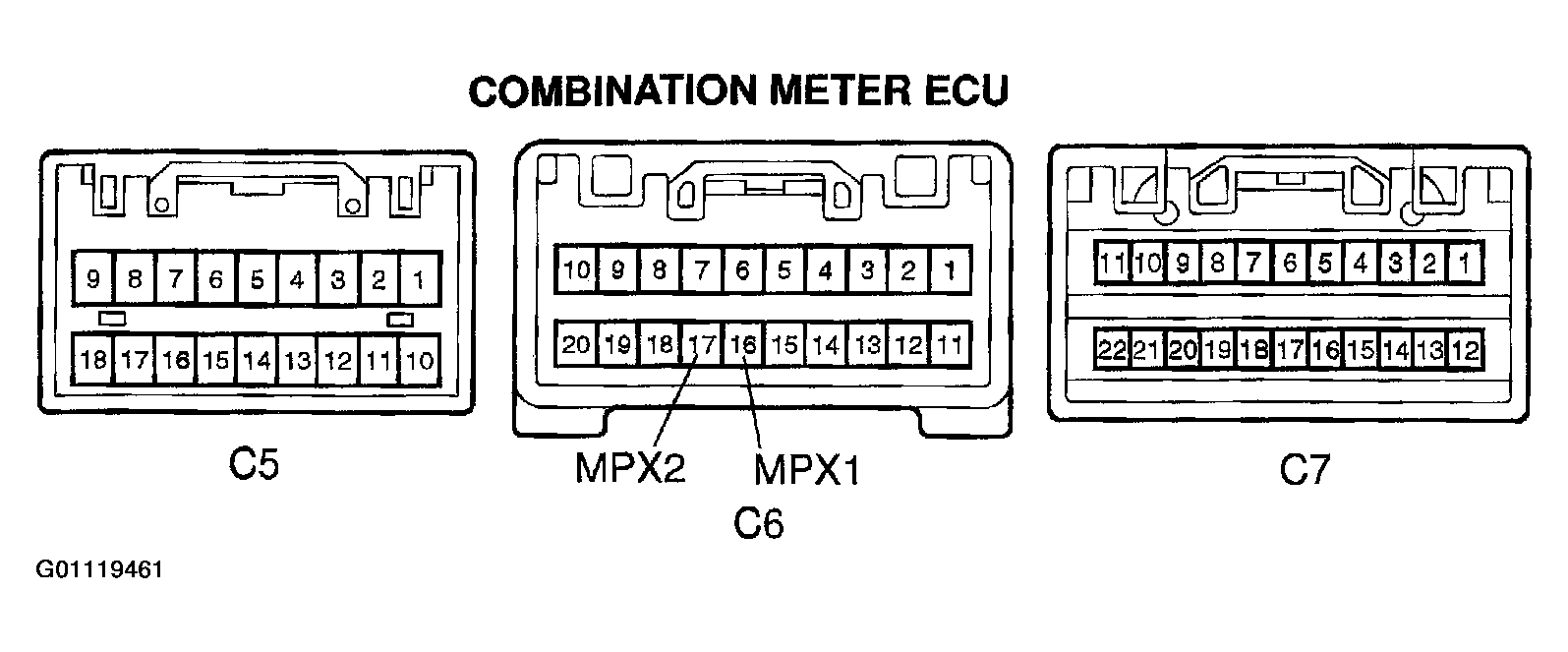

Fig 6: Identifying Combination Meter ECU Terminals
