Step 2 - Inspect Key Unlock Warning Switch Continuity

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

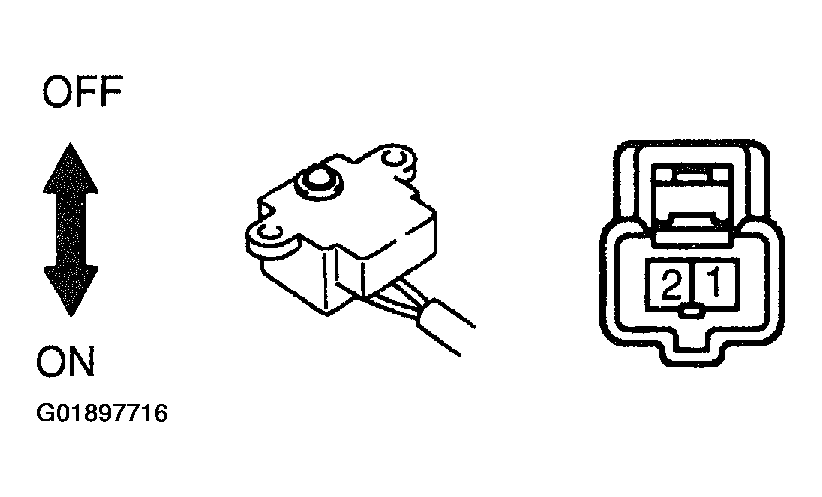

Fig 1: Testing Key Unlock Warning Switch
G01897716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

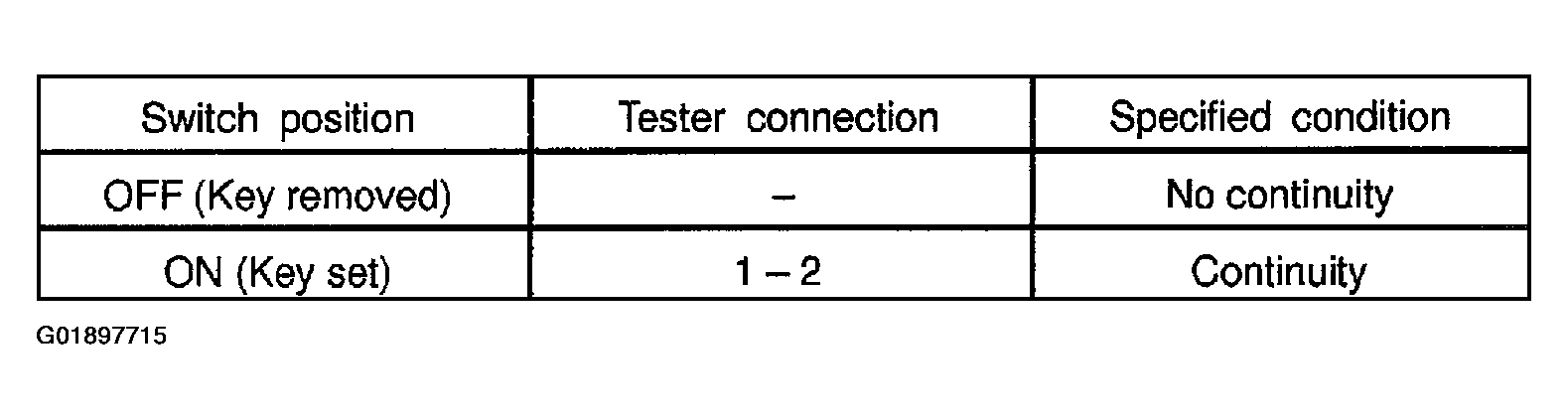

Fig 2: Key Unlock Warning Switch Specifications
G01897715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
