Step 1 - Inspect Front Personal Light Continuity

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Using an ohmmeter, check that continuity exists between terminals.

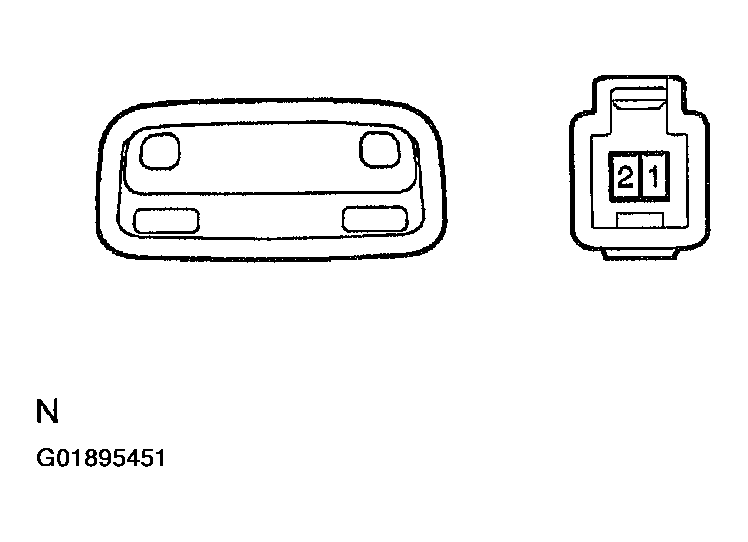

Fig 1: Testing Front Personal Light
G01895451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the light assembly or bulb.
