Electric Power Steering Gear: Components

WARNING: This page is about a different car, the 2002 Toyota Prius and 2001 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

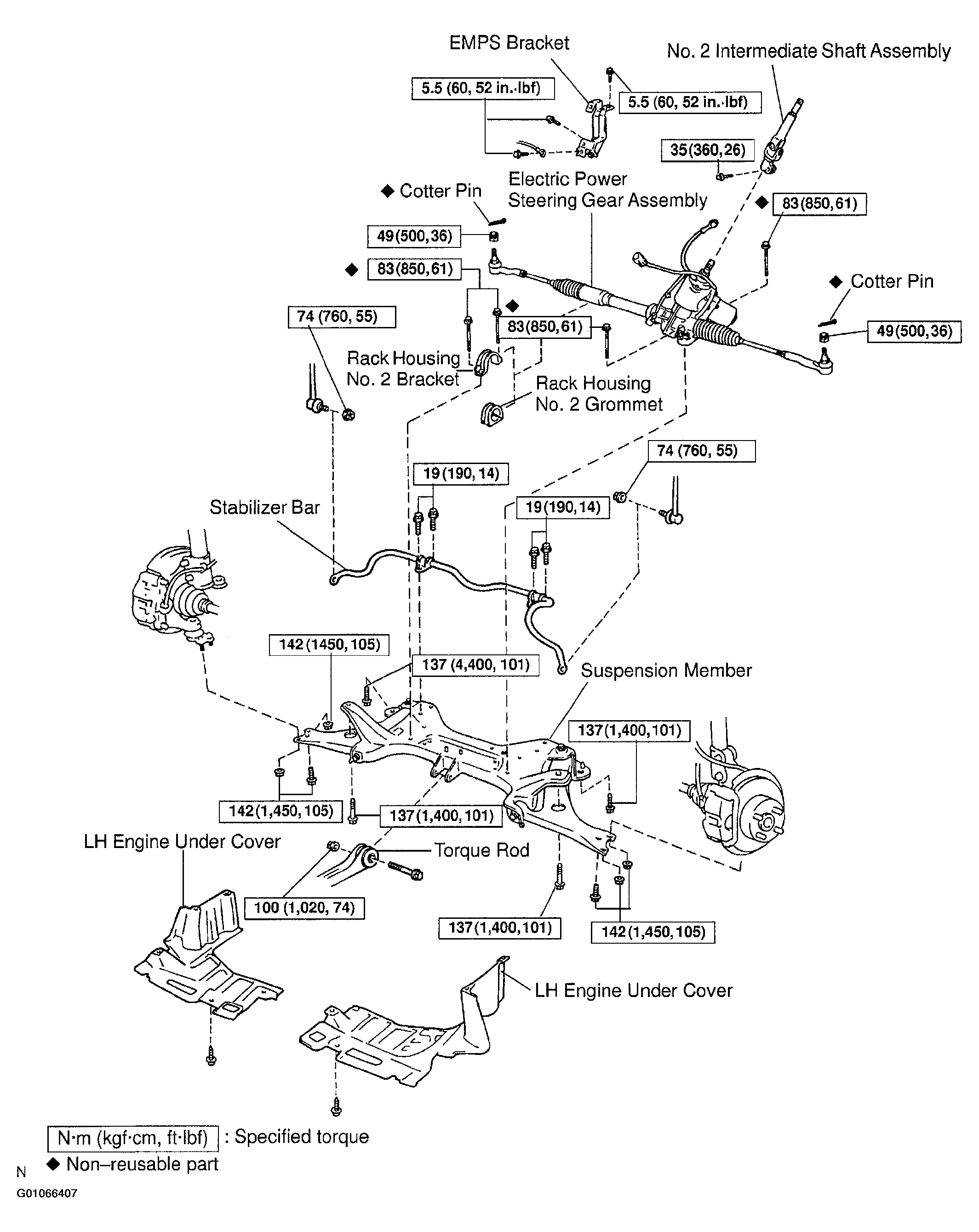

Fig 1: Locating Electric Power Steering Gear Related Components
G01066407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

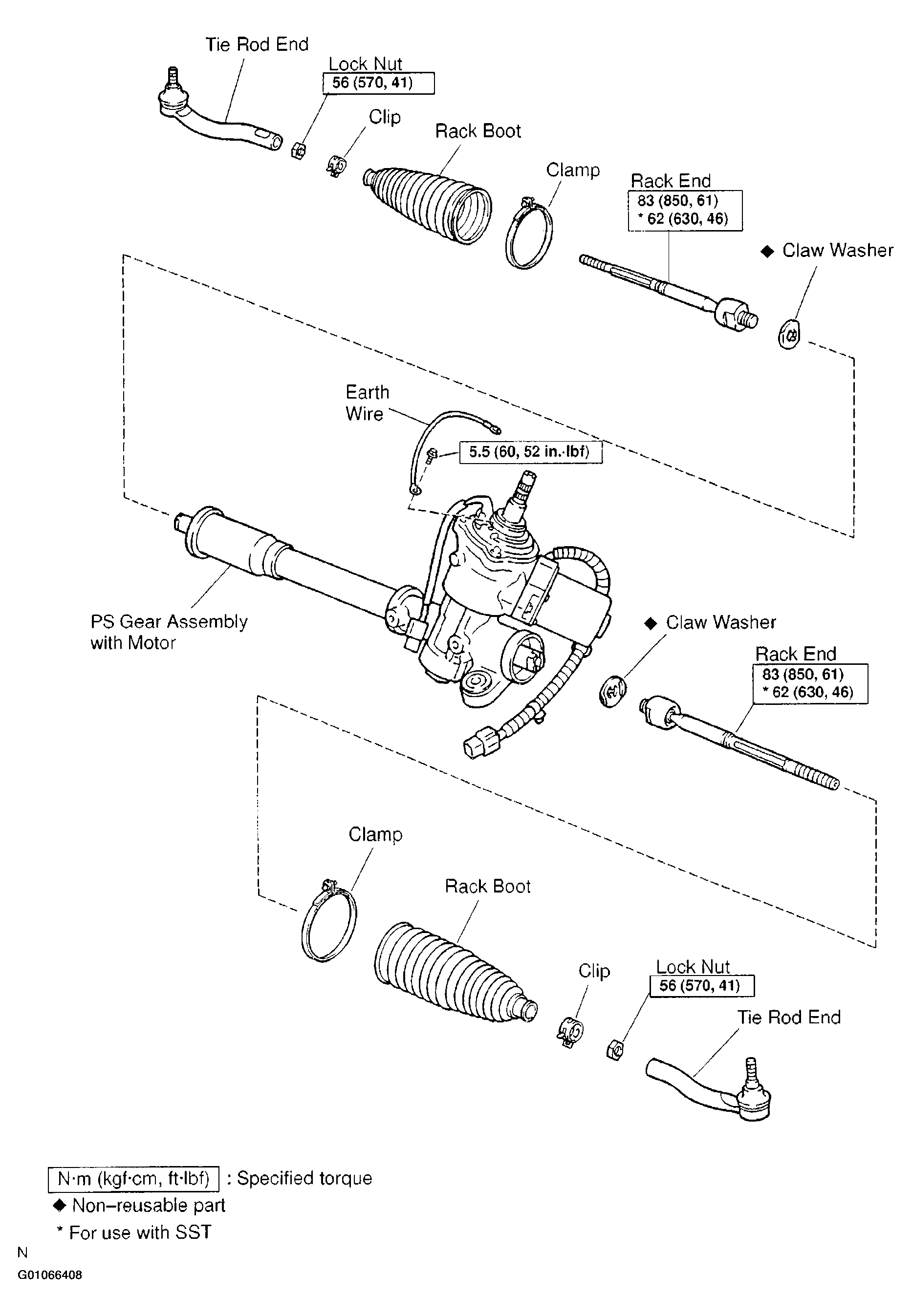

Fig 2: Exploded View Of Steering Gear Assembly
G01066408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
