Step 7 - Connect No. 2 Intermediate Shaft Assembly

WARNING: This page is about a different car, the 2002 Toyota Prius and 2001 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Put the dust seal back to the engine compartment side.
Remove the vinyl tape from the serrated part of the control valve shaft.
Align the matchmarks on the No. 2 intermediate shaft assembly and control valve shaft.
Install the bolt "B" and torque the bolt "A".

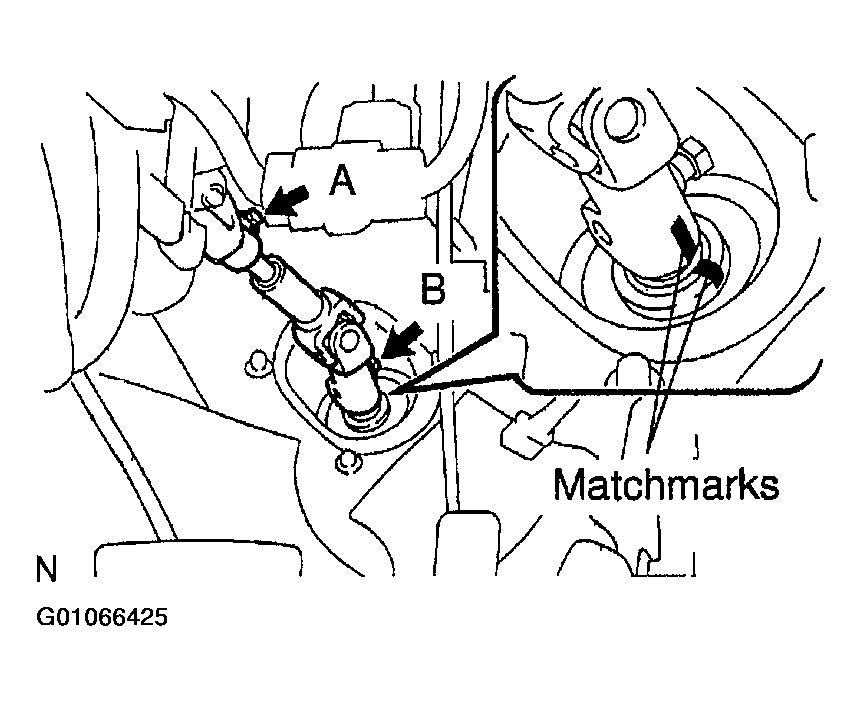

Fig 1: Locating No. 2 Intermediate Shaft Matchmarks & Identifying Bols A & B
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 35 N.m (360 kgf.cm, 22 ft.lbf)
