Inspection Procedure

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: On the system structure point of view, this DTC cannot be displayed by the combination meter. In case of checking DTC, please use hand-held tester.

Check the communication circuit inside ECM.
PREPARATION: Disconnect the connector "E11" of ECM.

CHECK: the DTC.

OK: Code B1266 or B1267 is not output

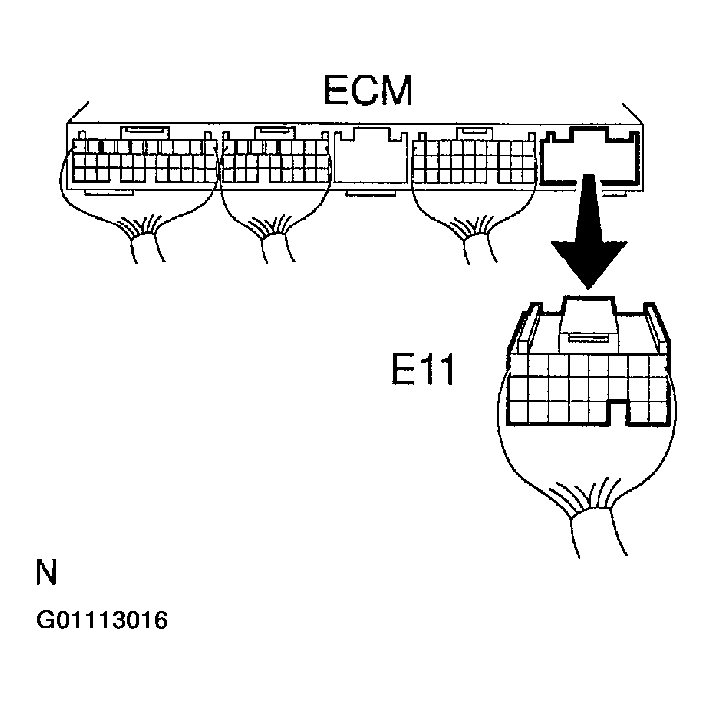

Fig 1: Identifying Connector E11 Of ECM
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: Replace the ECM.
2. NG: Go to 2.
Check the communication circuit inside gateway ECU.
PREPARATION
1. Connect the connector "E11" of ECM.
2. Disconnect the connector "G1" of gateway ECU.

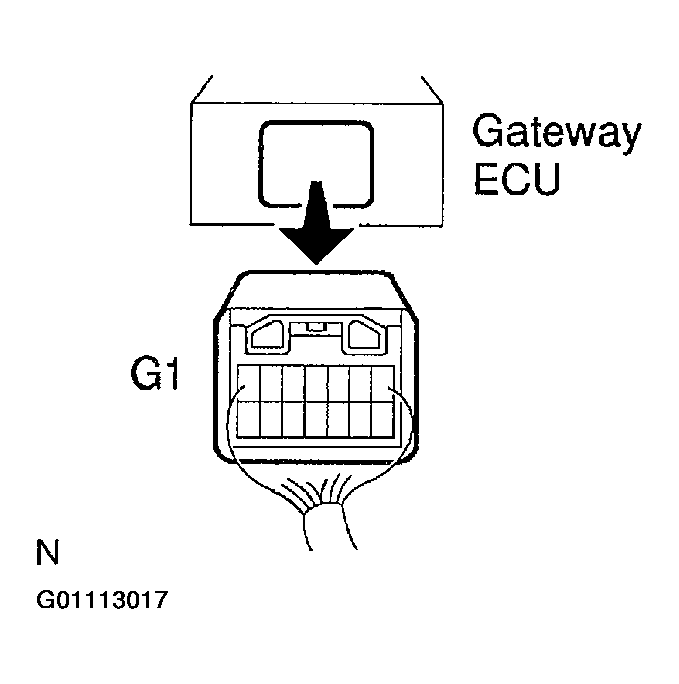

  Fig 2: Identifying Gateway ECU Connector G1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK: the DTC.

OK: Code B1266 or B1267 is not output.
1. OK: Replace the gateway ECU.
2. NG: Go to 3.
Check the communication circuit inside A/C amplifier.
PREPARATION
1. Connect the connector of "G1" of gateway ECU.
2. Disconnect the connector "A7" of A/C amplifier.
Check the DTC.

OK: Code B1266 or B1267 is not output

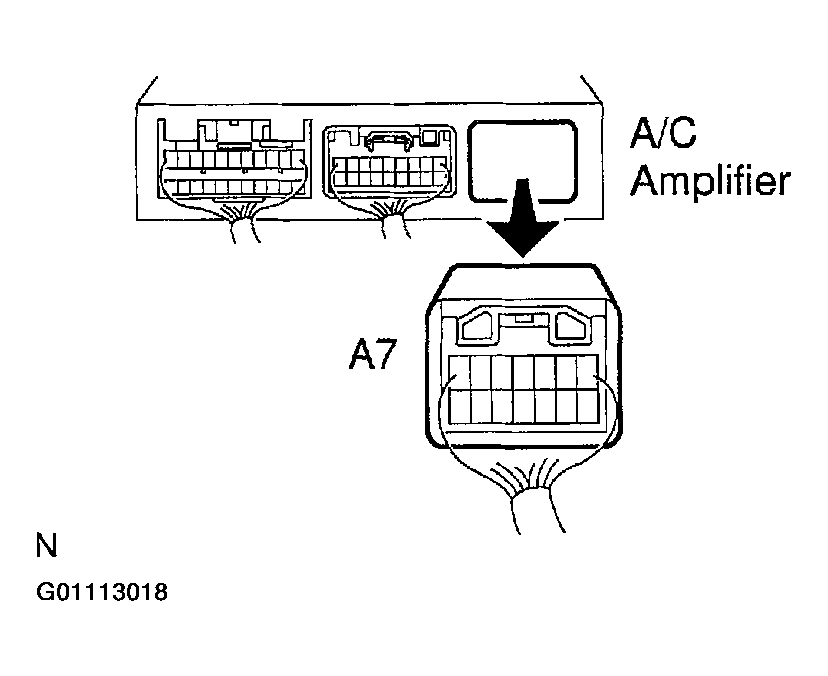

Fig 3: Identifying A/C Amplifier Connector A7
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: Replace the A/C amplifier.
2. NG: Go to 4 .
Check the communication circuit inside combination meter ECU.
PREPARATION
1. Connect the connector "A7" of A/C amplifier.
2. Disconnect the connector "C11" of combination meter ECU.
Check the DTC.

OK: Code B1266 or B1267 is not output
1. OK: Replace the combination meter ECU.
2. NG: Go to 5.
Check for short circuit between combination meter ECU and body ECU.
PREPARATION: Disconnect the connector "B8" of body ECU.

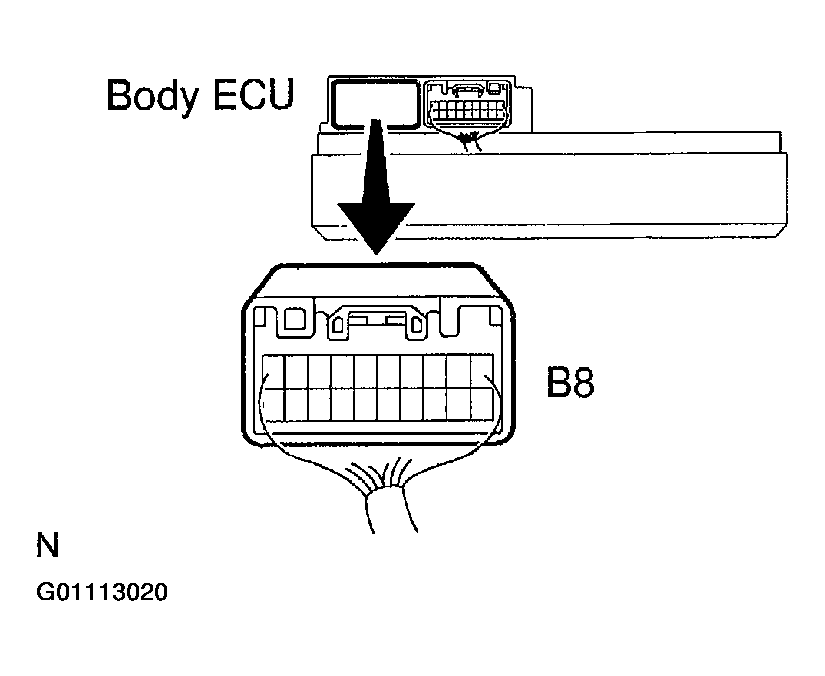

Fig 5: Identifying Body ECU Connector B8
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK: the DTC.

OK: Code B1266 or B1267 is not output
1. OK: Repair or replace the wire harness between combination meter ECU and body ECU.
2. NG: Go to 6.
Check for short circuit between body ECU and ECM.
PREPARATION: Connect the connector "B8" of body ECU.

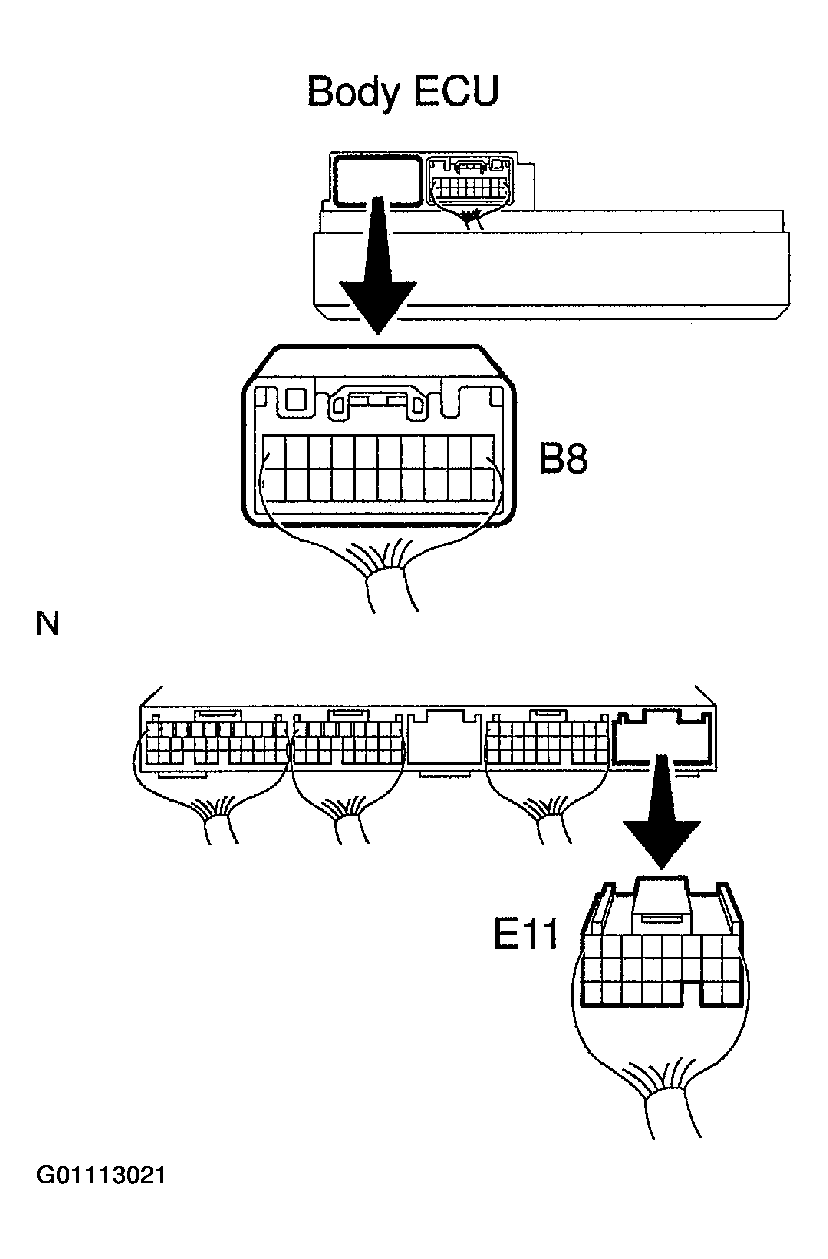

Fig 6: Identifying Body ECU Connector B8 & ECM Connector E11
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the connector "E11" of ECM.

CHECK: the DTC.

OK: Code B1266 or B1267 is not output
1. OK: Repair or replace the wire harness between body ECU and ECM.
2. NG: Go to 7.
Check for short circuit between ECM and gateway ECU.
PREPARATION:

Connect the connector "B8" of body ECU.

Disconnect the connector "G1" of gateway ECU.

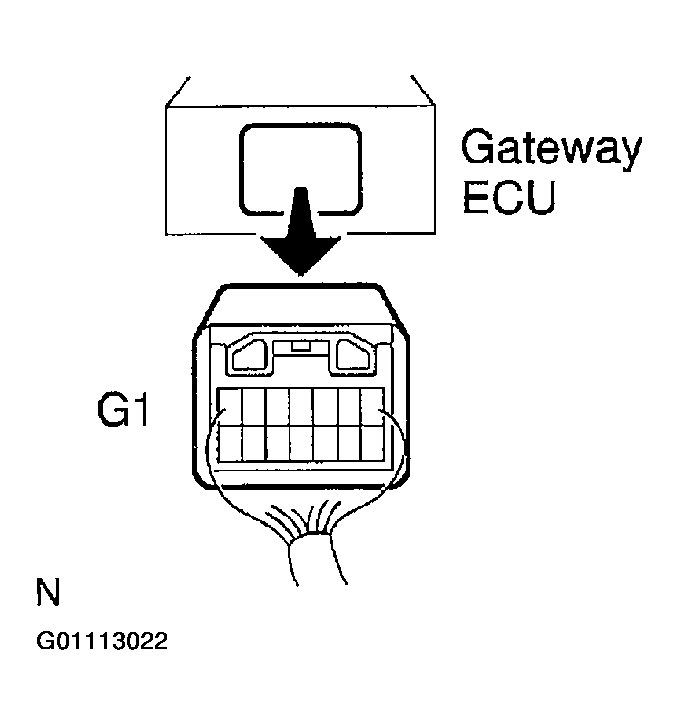

Fig 7: Identifying Gateway ECU Connector G1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK: the DTC.

OK: Code B1266 or B1267 is not output.
1. OK: Repair or replace the wire harness between ECM and gateway ECU.
2. NG: Go 8.
Check for short circuit between gateway ECU and A/C amplifier.
PREPARATION
1. Connect the connector "E11" of ECM.
2. Disconnect the connector "A7" of A/C amplifier.

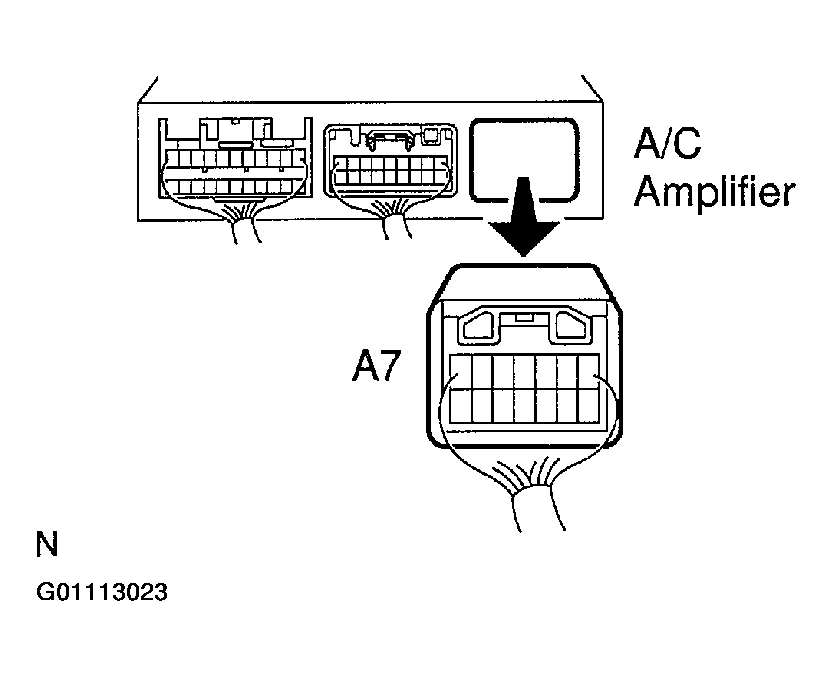

  Fig 8: Identifying A/C Amplifier Connector A7
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK: the DTC.

OK: Code B1266 or B1267 is not output
1. OK: Repair or replace the wire harness between ECM and A/C amplifier.
2. NG: Go to 9.
Check for short circuit between A/C amplifier and combination meter ECU.
PREPARATION
1. Connect the connector "A7" of A/C amplifier.
2. Disconnect the connector "C11" of combination meter ECU.

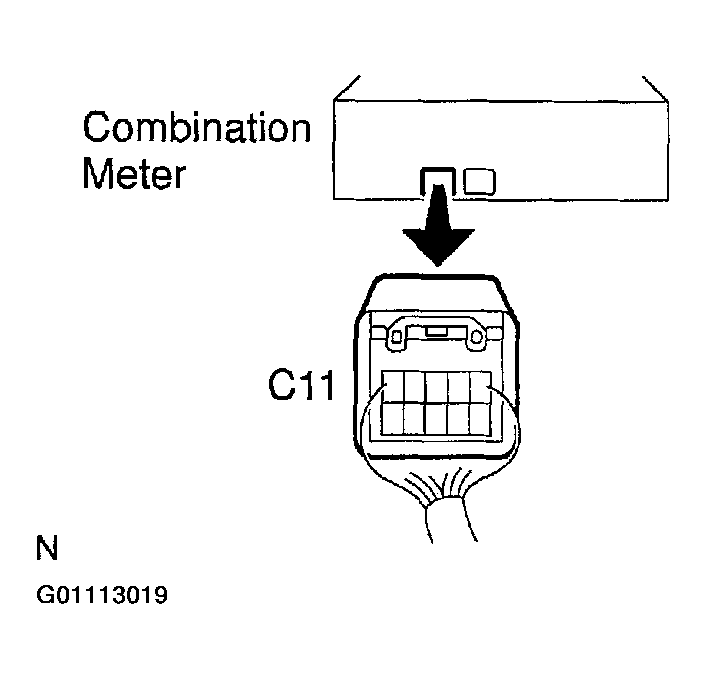

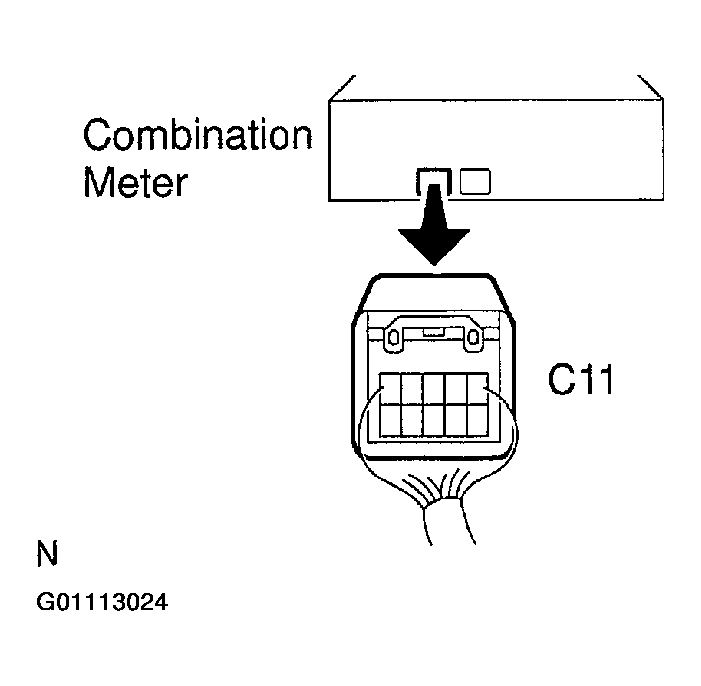

Fig 9: Identifying Combination Meter Connector C11
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK: the DTC.

OK: Code B1266 or B1267 is not output
1. OK: Repair or replace the wire harness between A/C amplifier and combination meter ECU.
2. NG: Replace the body ECU.
