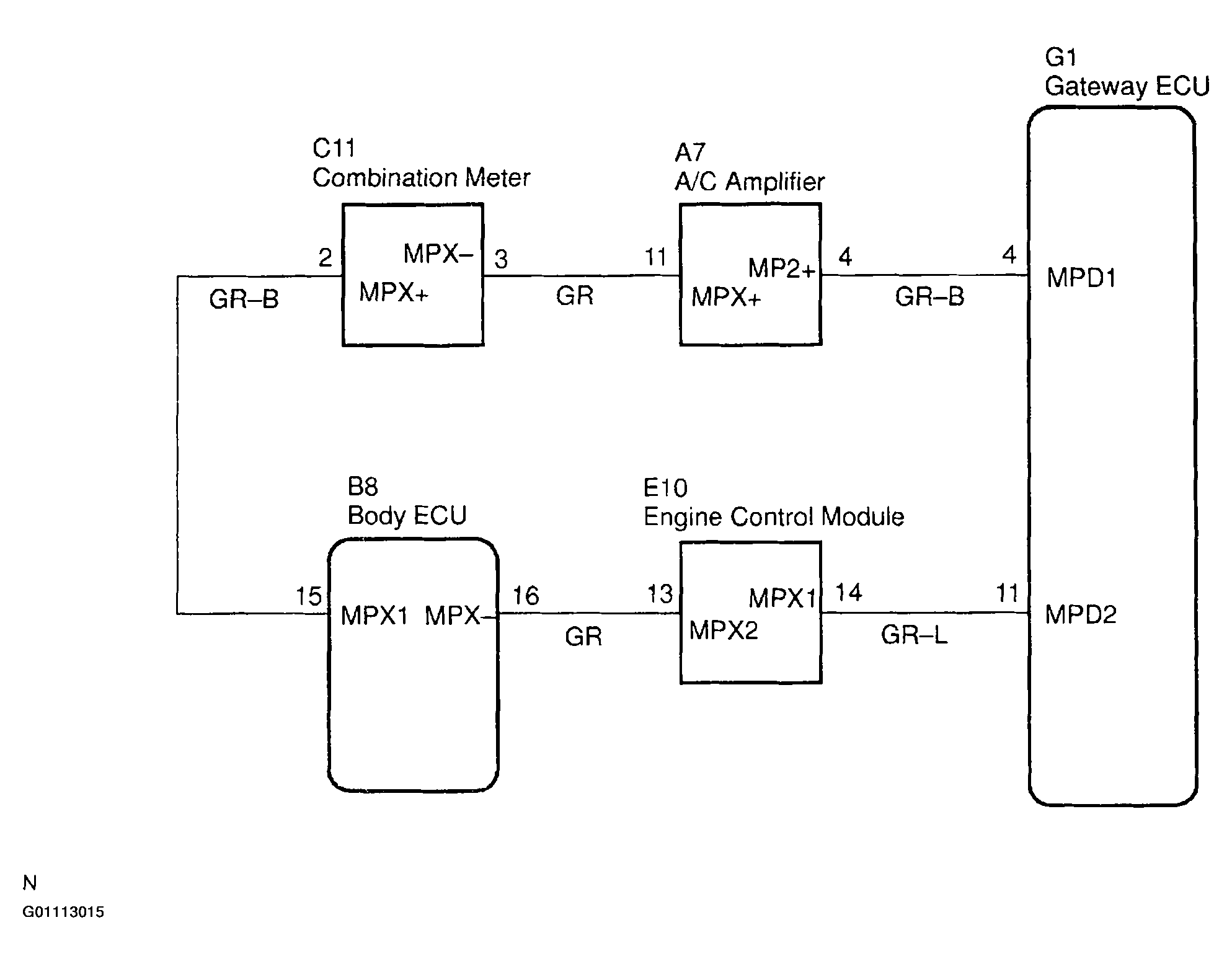

DTC B1266/66: Instrument Panel System Communication Bus Malfunction (+B Short), DTC B1267/67: Instrument Panel System Communication Bus Malfunction (GND Short): Wiring Diagram
WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
