Door Courtesy Light And Courtesy Switch Circuit: Wiring Diagram
WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

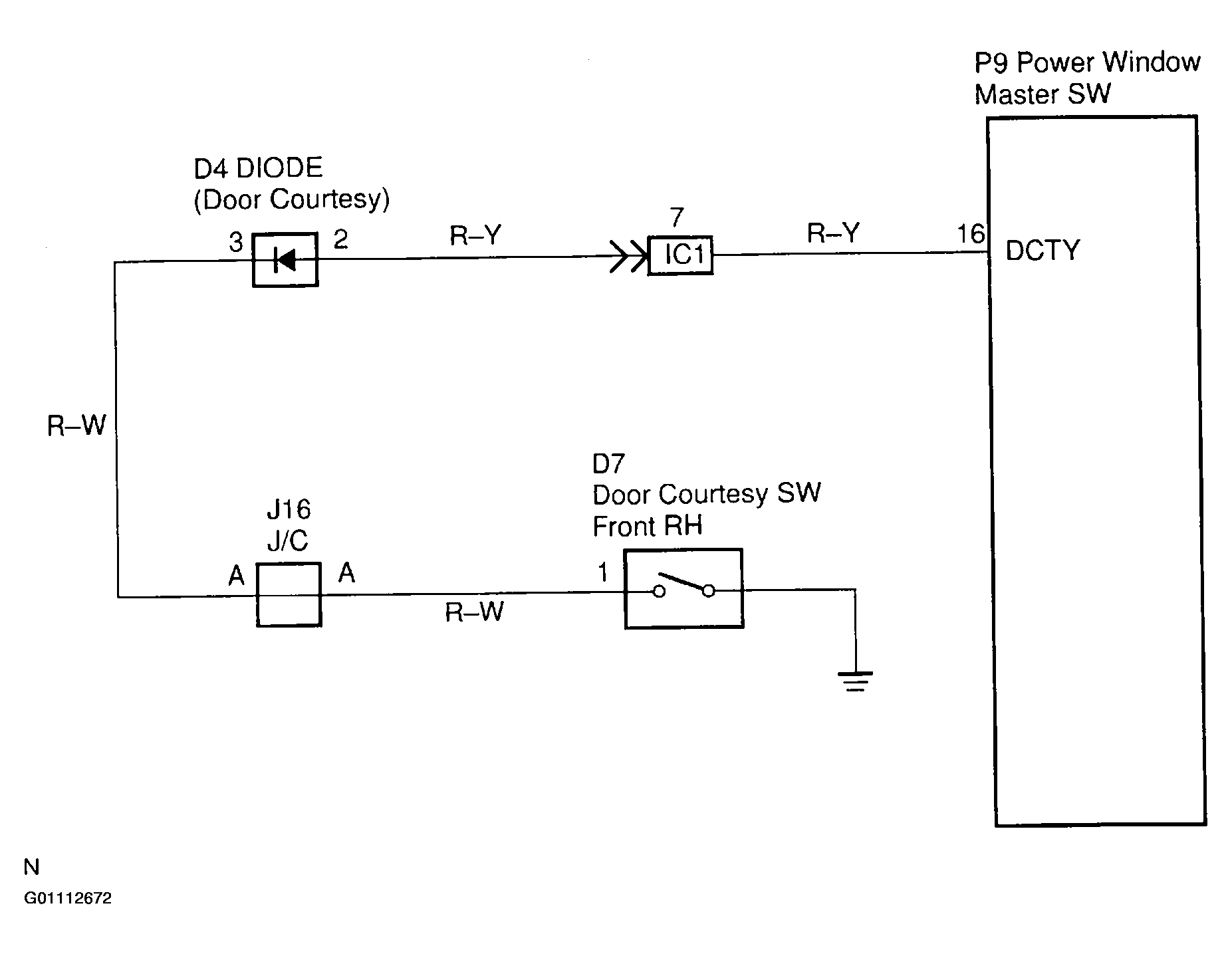

Fig 1: Door Courtesy Light And Courtesy Switch Circuit
