Terminals Of Ecu

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect connector "A" and "B" from the combination meter and inspect the connectors on the wire harness side.

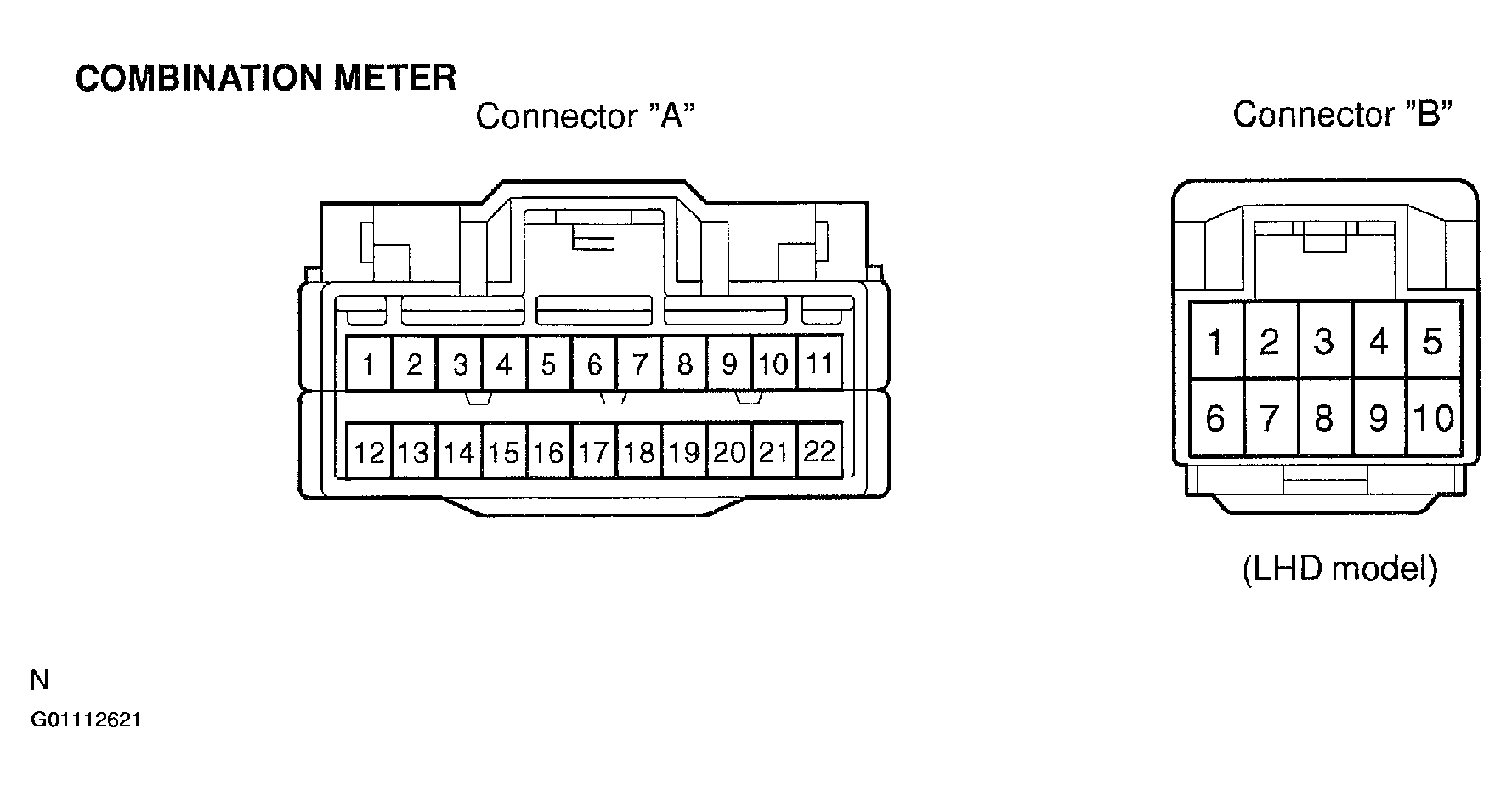

Fig 1: Identifying Combination Meter Connector A & B Terminals

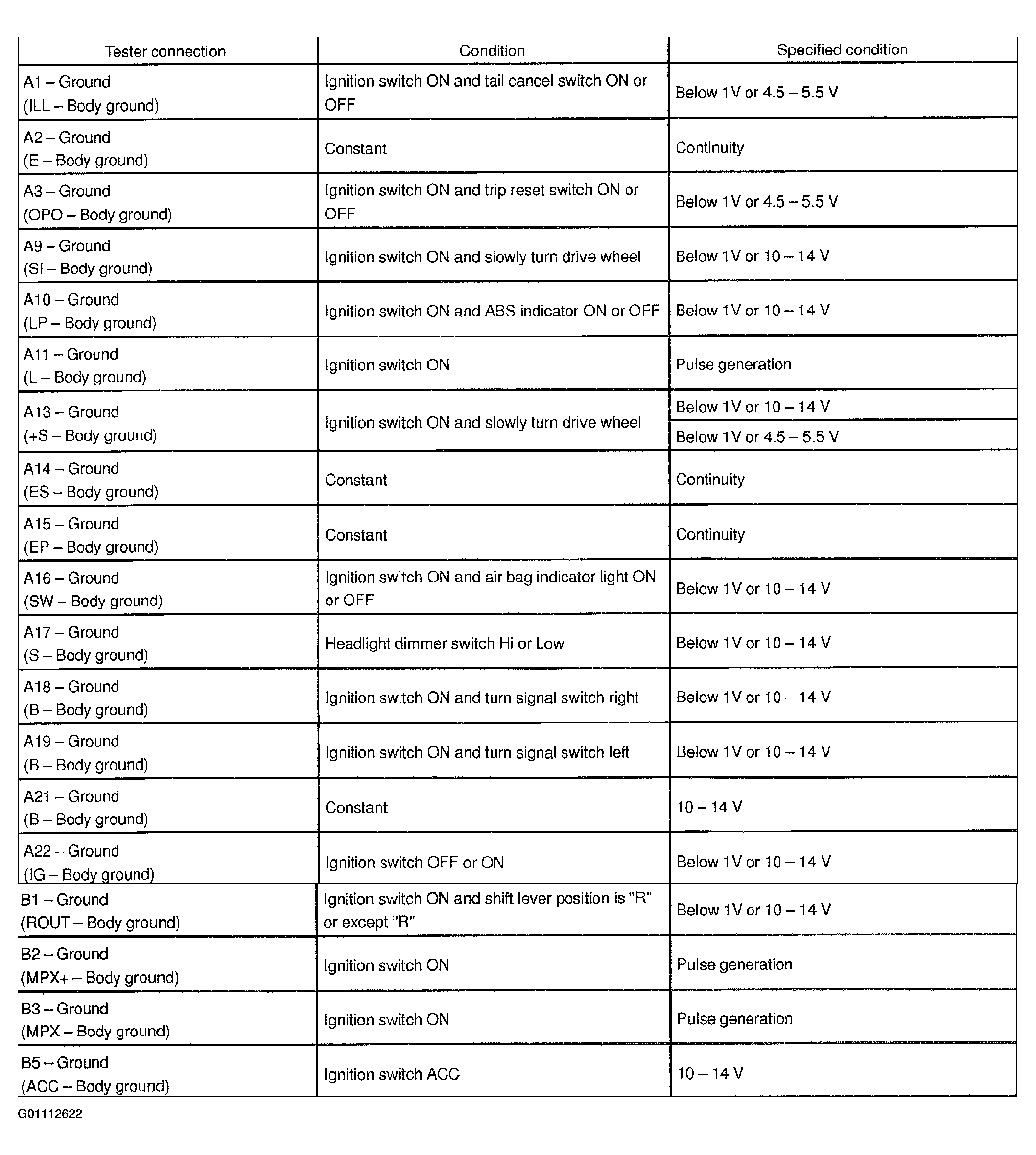

Fig 2: Combination Meter Connector A & B Terminal Specifications
