Blower Unit Removal

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Glove Compartment Door
  2. Disconnect Connector
  3. Remove Blower Unit
      NOTE: At the time of installation, please refer to the following item. Install the glove compartment door reinforcement (supply parts Part No. : 55558-47010  ), instead of cutting reinforcement.

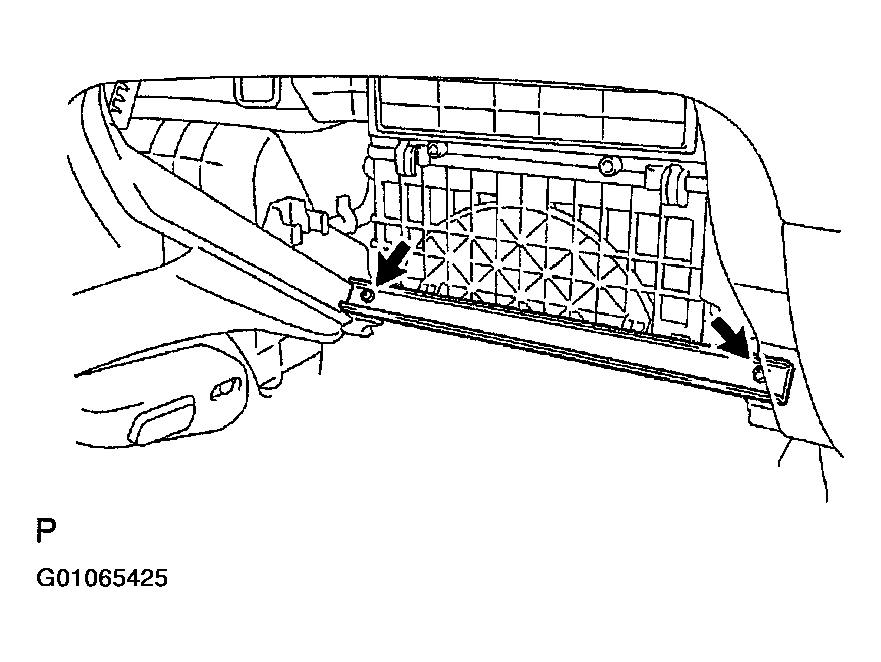

      Fig 1: Installing Glove Compartment
      G01065425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a knife, cut off the reinforcement of glove compartment.

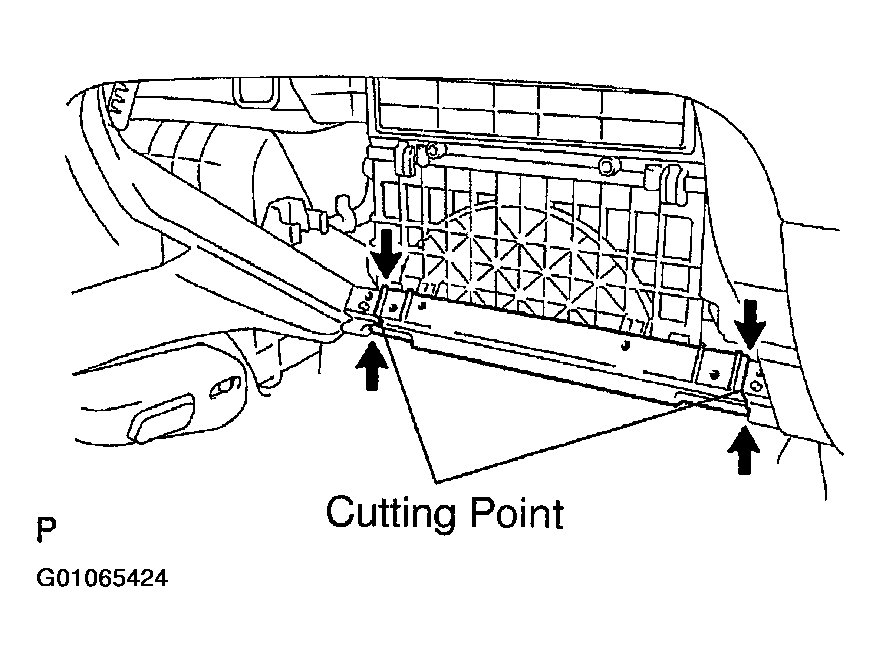

      Fig 2: Locating Glove Compartment Reinforcement Cutting Line
      G01065424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and ECM & EMPS ECU.

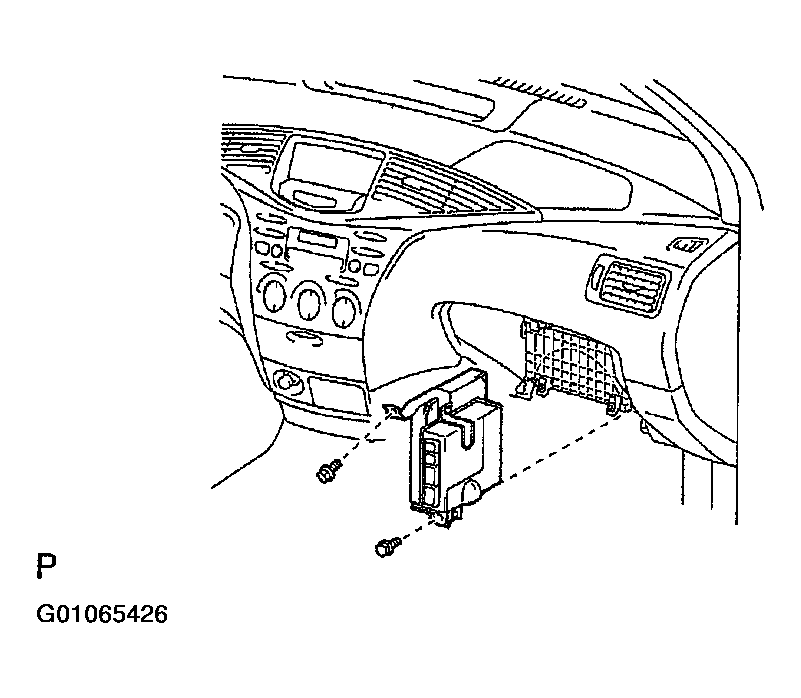

      Fig 3: Locating ECM & EMPS ECU Mounting Bolts
      G01065426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 screws and 2 nuts.

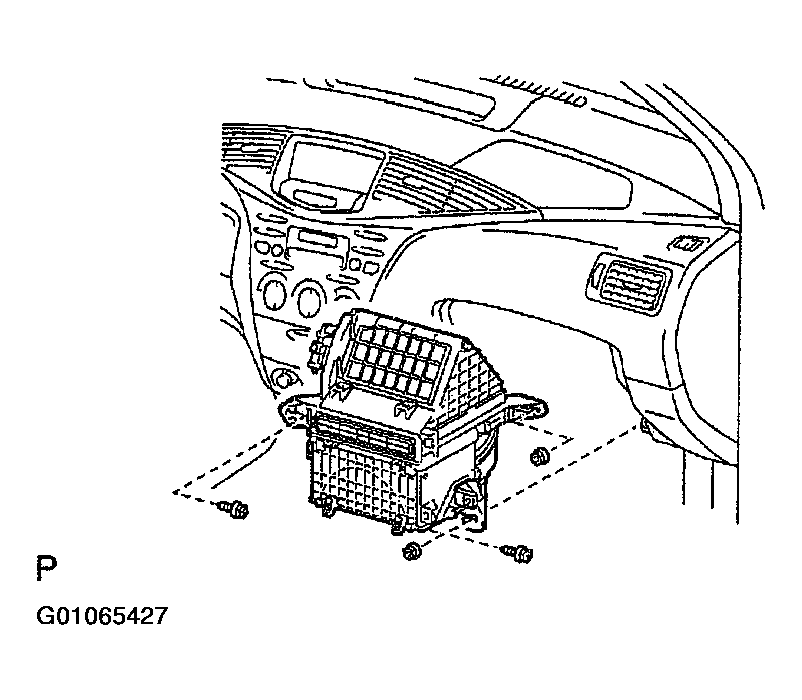

      Fig 4: Locating Blower Motor Unit Mounting Screws & Nuts
      G01065427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the blower unit.
