Set Off
WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
- Close both hand valves of manifold gauge set .
- Disconnect quick disconnect adapters from service valves on refrigerant line .
- Install caps to service valves on refrigerant line .
NOTE:

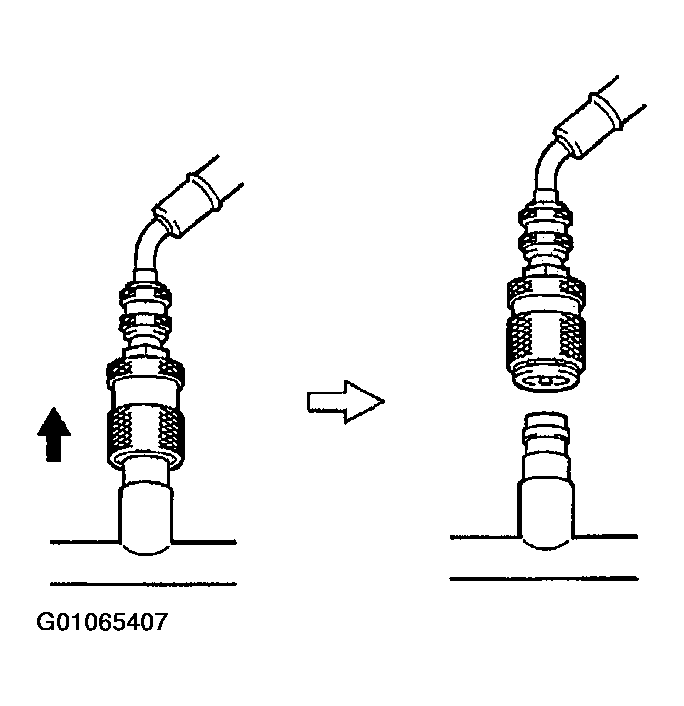

Slide the sleeve of the quick disconnect adapter upward to unlock the adapter and remove it from the service valve.
