Set On Manifold Gauge Set

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: Do not connect the wrong hoses.

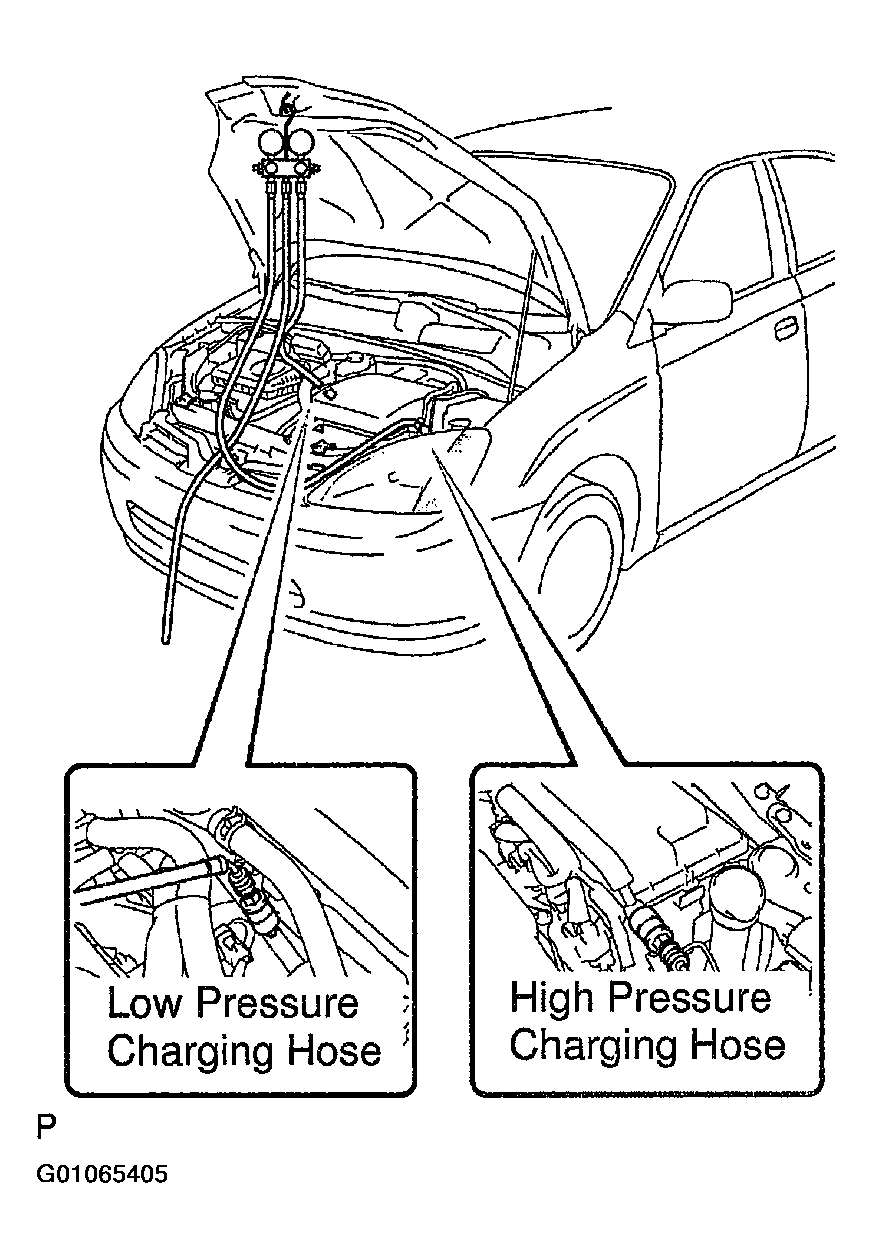

    Fig 1: Connecting Manifold Gauge Set To Vehicle
    G01065405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect charge hose to manifold gauge set  :

    Tighten the nuts by hand.

  2. Connect quick disconnect adapter to charging hoses  .

    Tighten the nuts by hand.

  3. Close both hand valve of manifold gauge set  .
  4. Remove caps from service valve on refrigerant line  .
    5. NOTE: Push the quick disconnect adapter onto the service valve, slide, then slide the sleeve of the quick disconnect adapter downward to lock it.

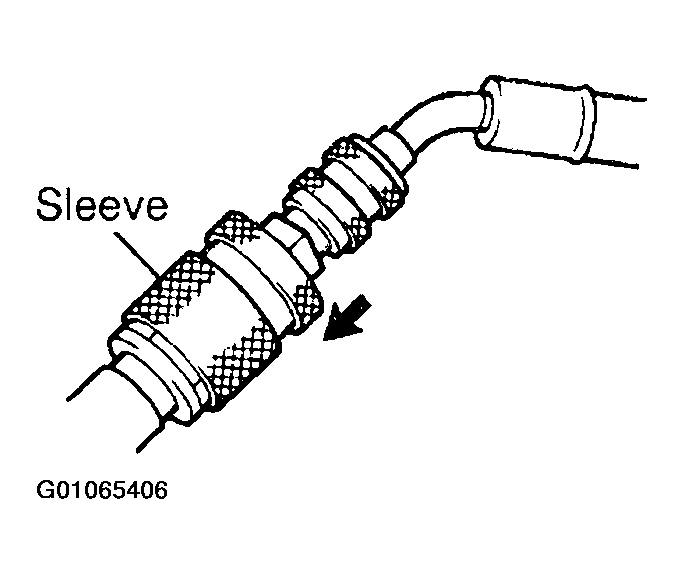

    Fig 2: Connecting Quick Disconnect Adapters
    G01065406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Connect quick disconnect adapter to service valves  .
