Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table below (proceed to the page given for that circuit).

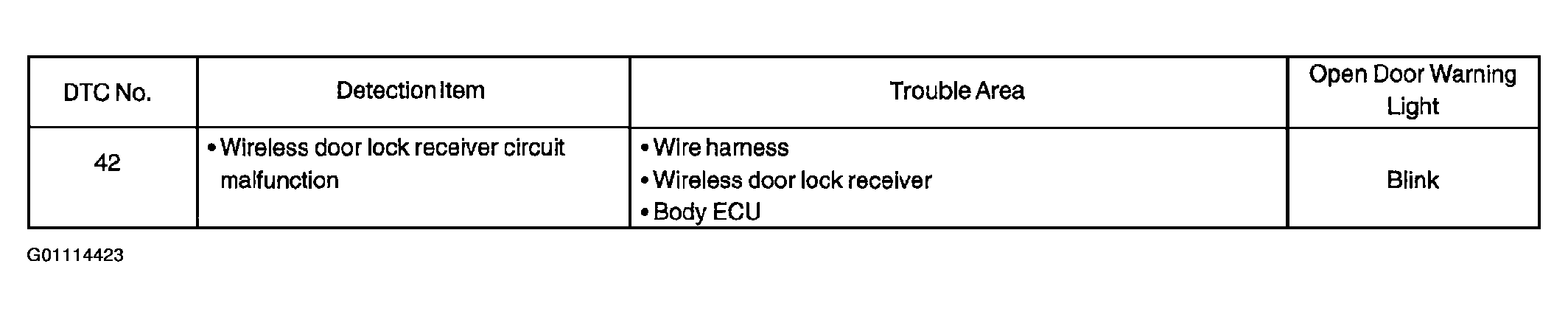

Fig 1: Reviewing DTC Information
G01114423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
