Problem Symptoms Table
WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

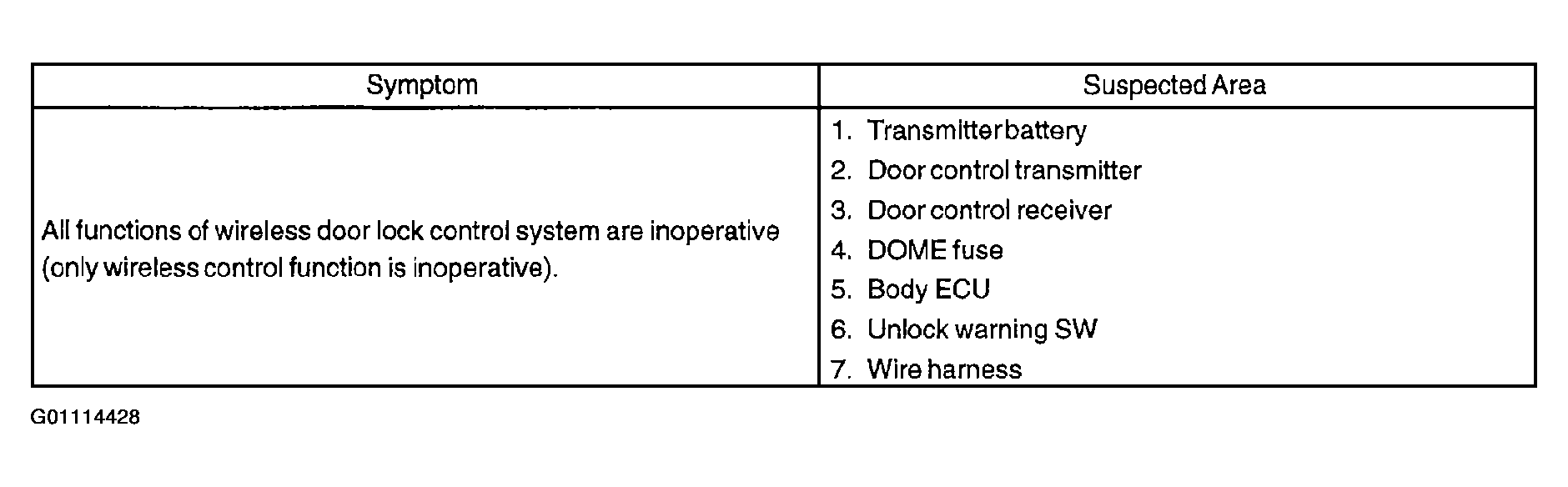

PROBLEM SYMPTOMS
| Symptom | Suspected Area | Go To | |||
| All functions of wireless door lock control system are inoperative (only wireless control function is inoperative.) | |||||
| Transmitter battery | (1) | ||||
| Door control transmitter | (1) | ||||
| Door control reciever | (1) | ||||
| DOME fuse | (1) | ||||
| Body ECU | (1) | ||||
| Unlock warning SW | (1) | ||||
| Wire harness | (1) | ||||
|
|||||
