Inspection Procedure

HINT:

Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

1. Check resistance of A/F sensor heater (see  INSPECTION  ).
   1. NG : Replace A/F sensor.
   2. OK : Go to next step.
2. Check EFI main relay.

   PREPARATION:

   Remove the EFI main relay from the engine room J/B.

   CHECK:

   Inspect the EFI main relay.

   OK:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   3 - 5	10 kΩ or higher
   3 - 5	Below 1 Ω (when battery voltage is applied to terminals 1 and 2)

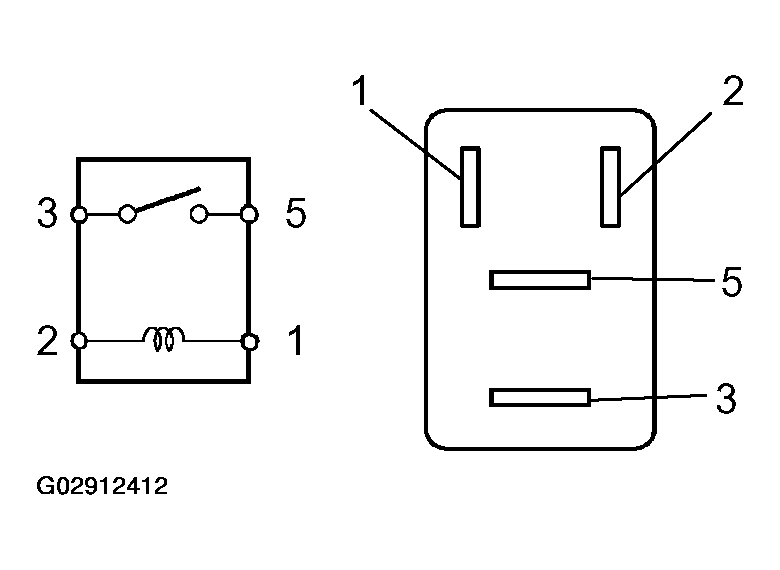

   Fig 1: Identifying EFI Main Relay

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. NG : Replace EFI main relay.
   2. OK : Go to next step.
3. Check voltage between terminal HA1A of ECM connector and body ground.

   PREPARATION:

   1. Remove the glove compartment (see COMPONENTS ).
   2. Turn the ignition switch ON.

   CHECK:

   Measure the voltage between terminal HA1A of the ECM connector and body ground.

   OK:

   Voltage: 9 to 14 V

   1. OK : Replace ECM (see  COMPONENTS  ).
   2. NG : Go to next step.

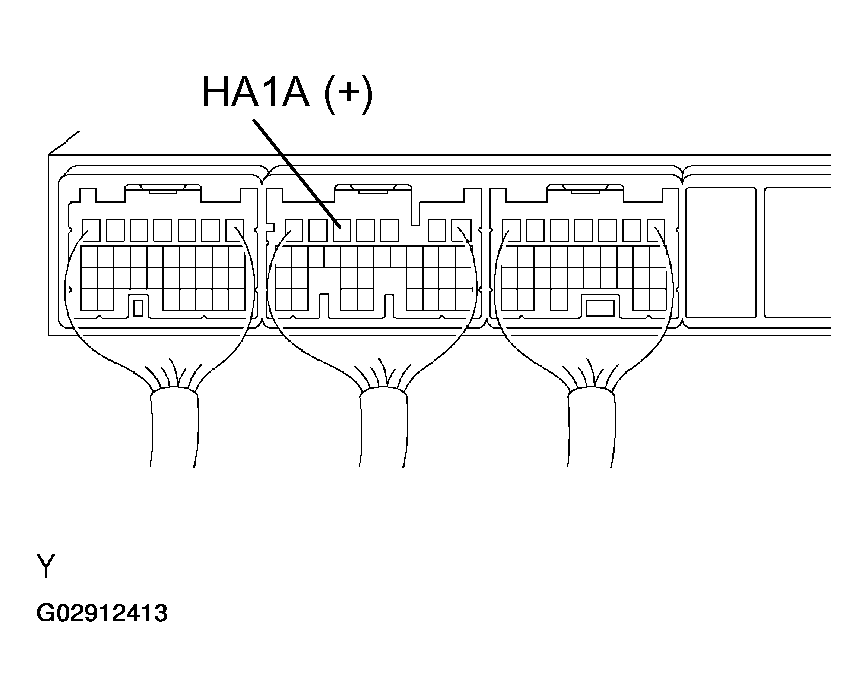

      Fig 2: Locating HA1A (+) Connector Terminal Of ECM

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Check for open and short in wire harness between EFI main relay and A/F sensor, and A/F sensor and ECM (see  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  in INTRODUCTION article).
   1. NG : Repair or replace harness and connector.
   2. OK : Replace ECM (see  COMPONENTS  ).
