Circuit Description

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

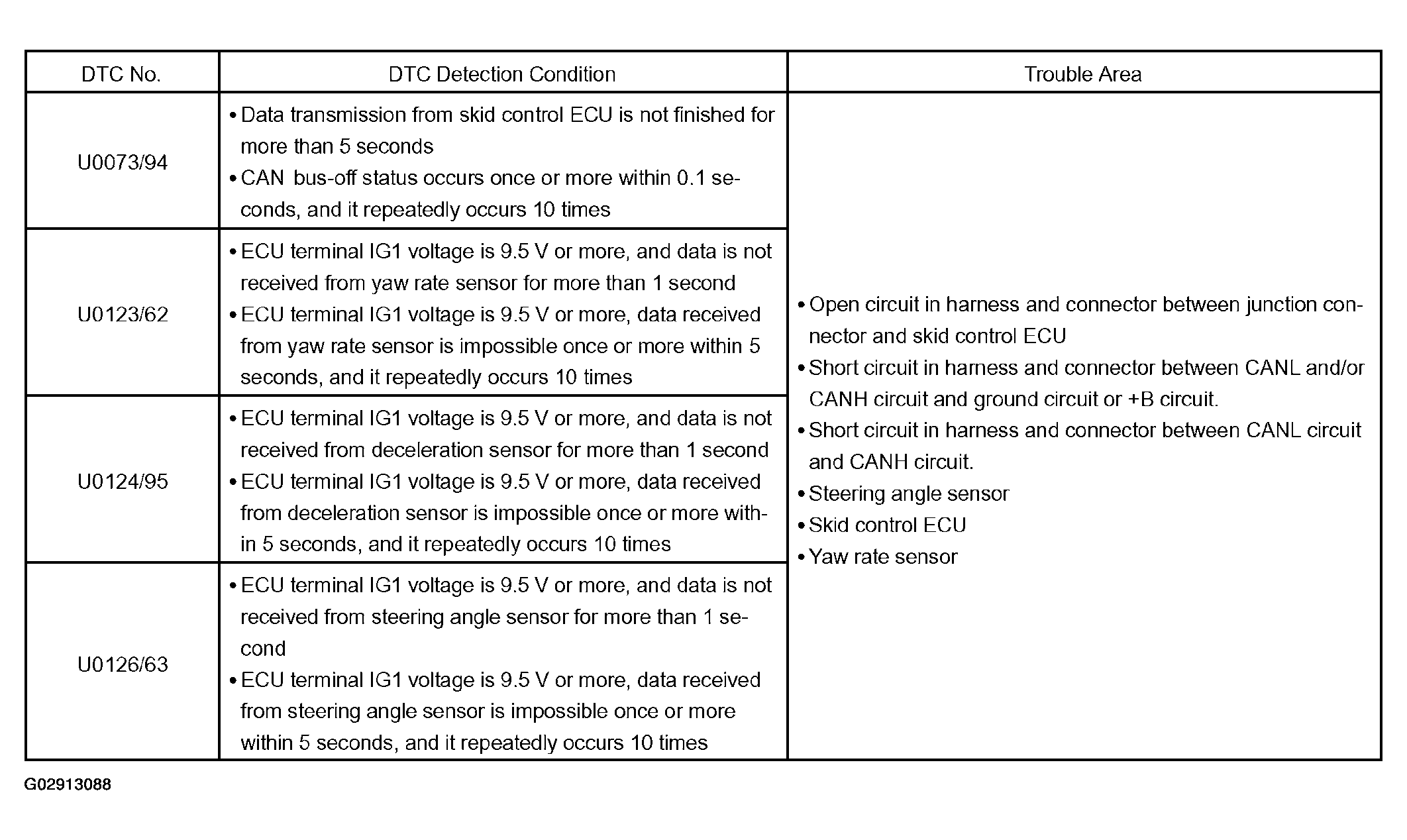

Fig 1: DTC Trouble Detection Table Of Skid Control ECU Communication Stop Mode (U0073/94, U0123/62, U0124/95 & U0126/63)
G02913088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
